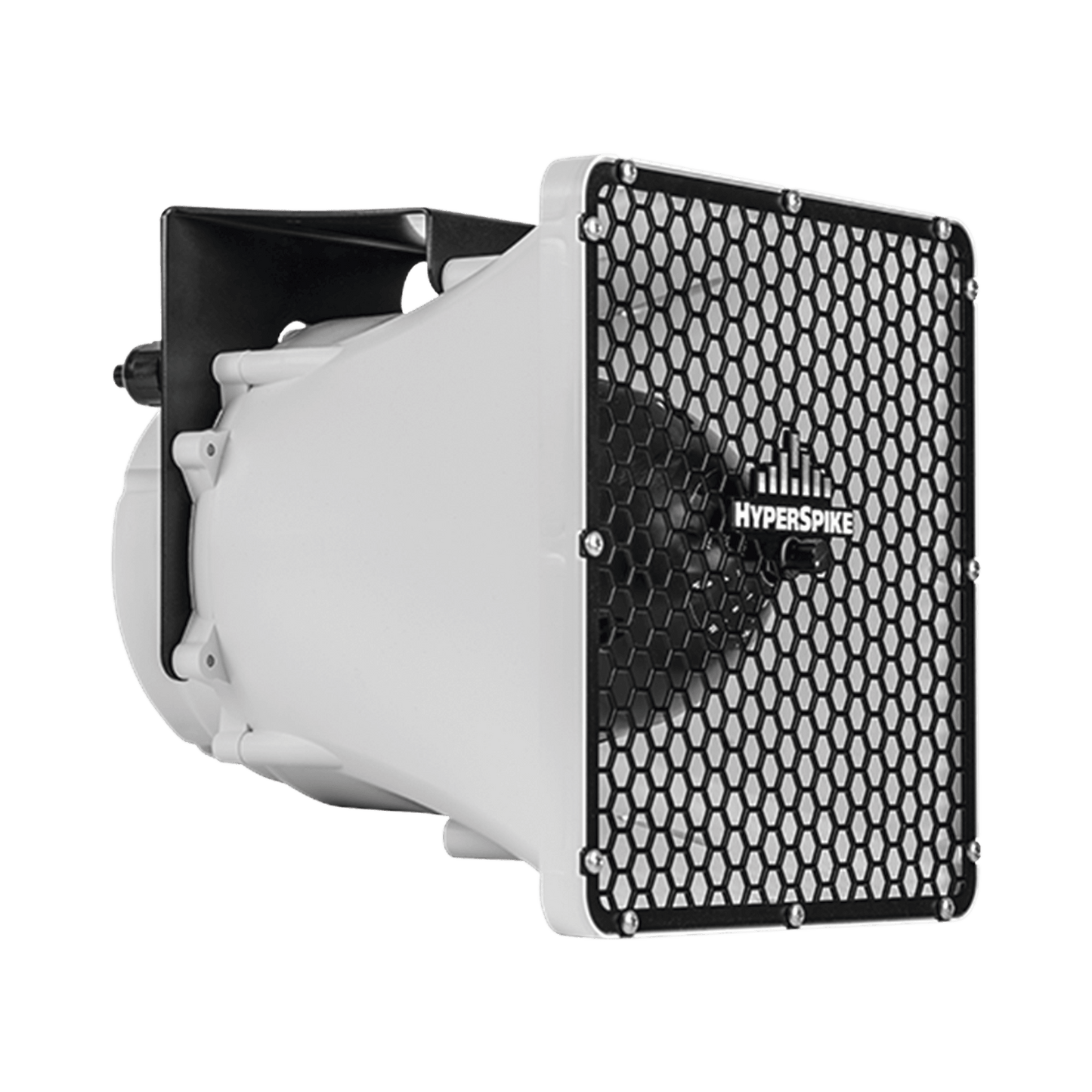

HyperSpike® TCPA-10 Series High Fidelity Loudspeaker with Noise Isolation

  • 9000ac0eadee277f605f24355a3c0305
1 1

Out of stock

Modelo: 90215A-801-06-L

Proveedor: HYPERSPIKE

Código SAT: 52161512

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

HyperSpike® High Fidelity Speakers

TCPA-10 Series

The HyperSpike® TCPA-10 speaker series is designed for indoor and outdoor environments providing clear audio signals for voice notifications. The five power settings have been designed to interface with industry standard amplification, and the 90° wide acoustic beam makes it an ideal notification tool for indoor and outdoor areas.

Additionally, the optional dual mounting system creates a 180° wide beam that is ideal for outside perimeter use. Best-in-class TCPA-10 acoustic coverage allows fewer units to be installed over large areas, reducing long-term installation and maintenance costs while improving intelligibility and aesthetics.

The best voice quality and intelligibility in the industry , combined with crisp, high-impact tone capability, make it the right choice to ensure messages are heard clearly and understood .

Key Features :

  • Ideal for high ambient environments.
  • Significant reduction in installation costs.
  • Highly intelligible speech communication (STI = Excellent)
  • Distributed Audio Settings, Direct Drive and POE/addressable.
  • Usable range at 80 dB up to 1040 ft.
  • 139 dB SPL maximum at 1M.
  • Rated for indoor or outdoor applications.
  • Universal mounting interface.
  • Built-in 25/70/100V or configurable 4/8 ohm transformer.
  • Robust and durable construction.
  • Extremely efficient producing a peak SPL of 129 dB at 1M with 4W of power.

Specifications:

  • UL1480-F Certifications Class I Division 2 (A,B,C,D)
  • ULC S541/CSA 22.2 No. 205 & 213, CSFM 7320-2206:0501
  • Power rating up to 90 W continuous (4 ohm model)
  • Frequency response 375 Hz - 15 kHz (nominal) 400Hz - 4kHz (general signaling)
  • Sensitivity 112dB @1W/1m (Average 400 - 4000Hz)
  • Dispersion angle 60°(-3dB), 90°(-6dB)
  • Light weight of 9 pounds (4 kg)
  • Dimensions 10.1" Height x 10.1" Width x 11.3" Depth
  • Ingress Protection: Meets NEMA 3R standards
  • Temperature range -40 to 60°C

Applications

  • Location and general notification.
  • Indoor and outdoor use.
  • Communication on campus.
  • Life and fire safety.
  • Emergency notifications.
  • Gas and oil stations.
  • Maquiladora Industry.
  • Warehouses.
  • Airports/Hangars.
  • Arenas/Stadiums.
  • Parking lots.
