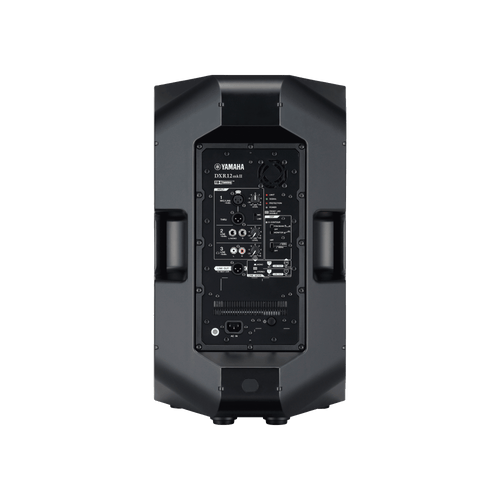

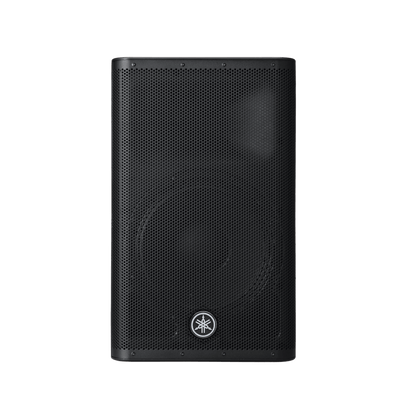

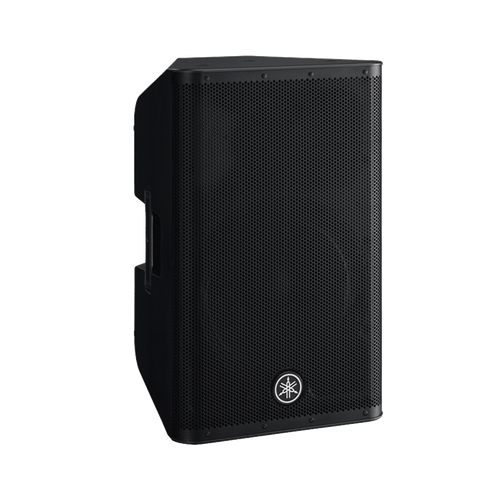

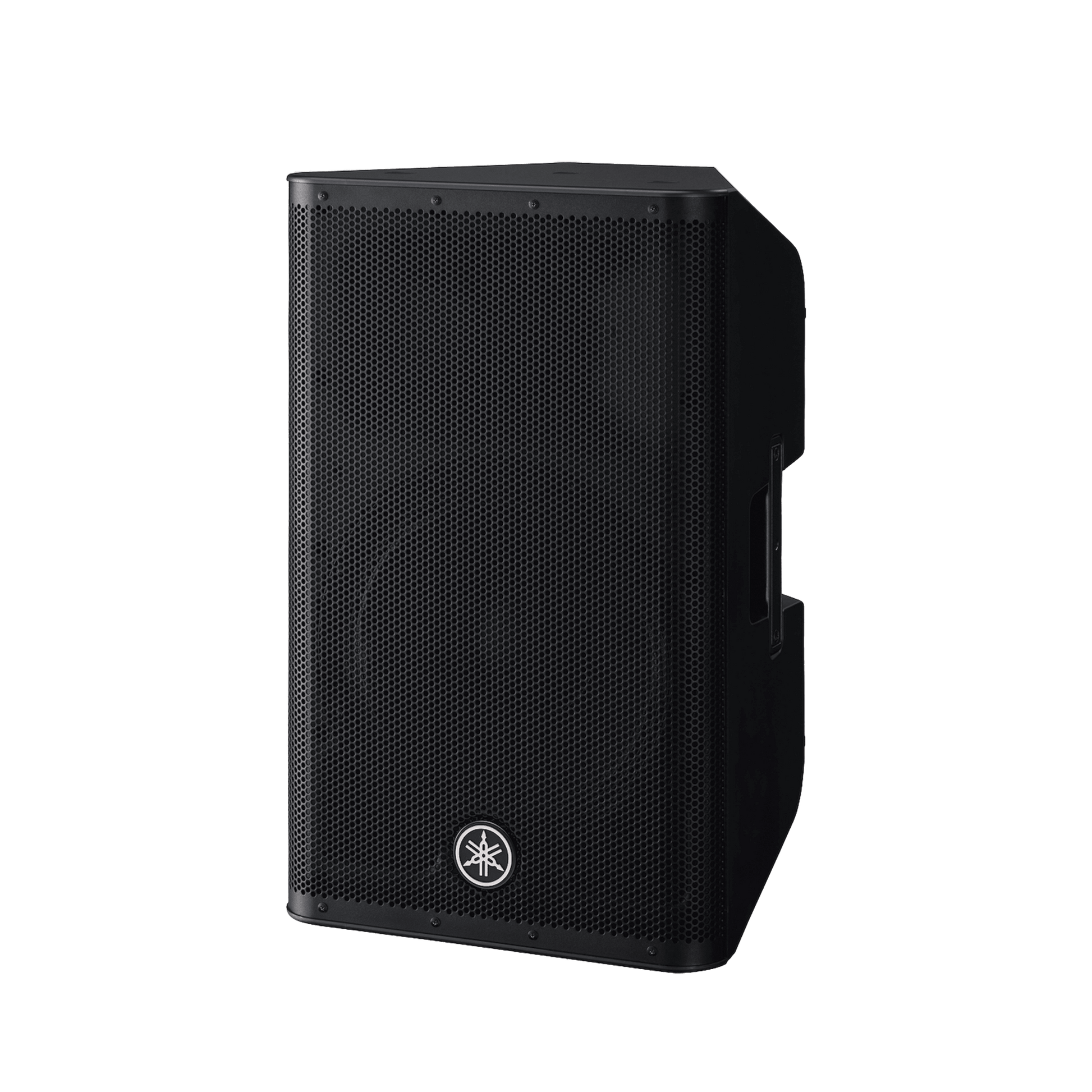

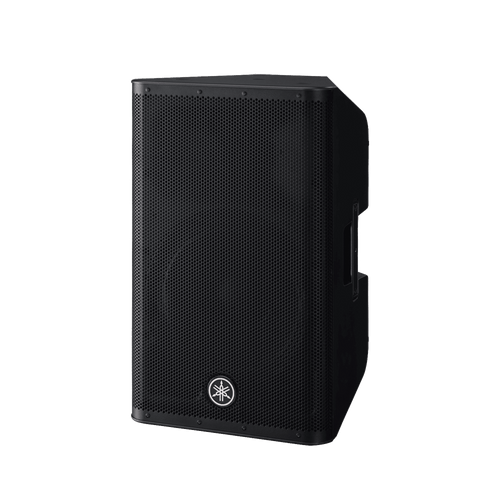

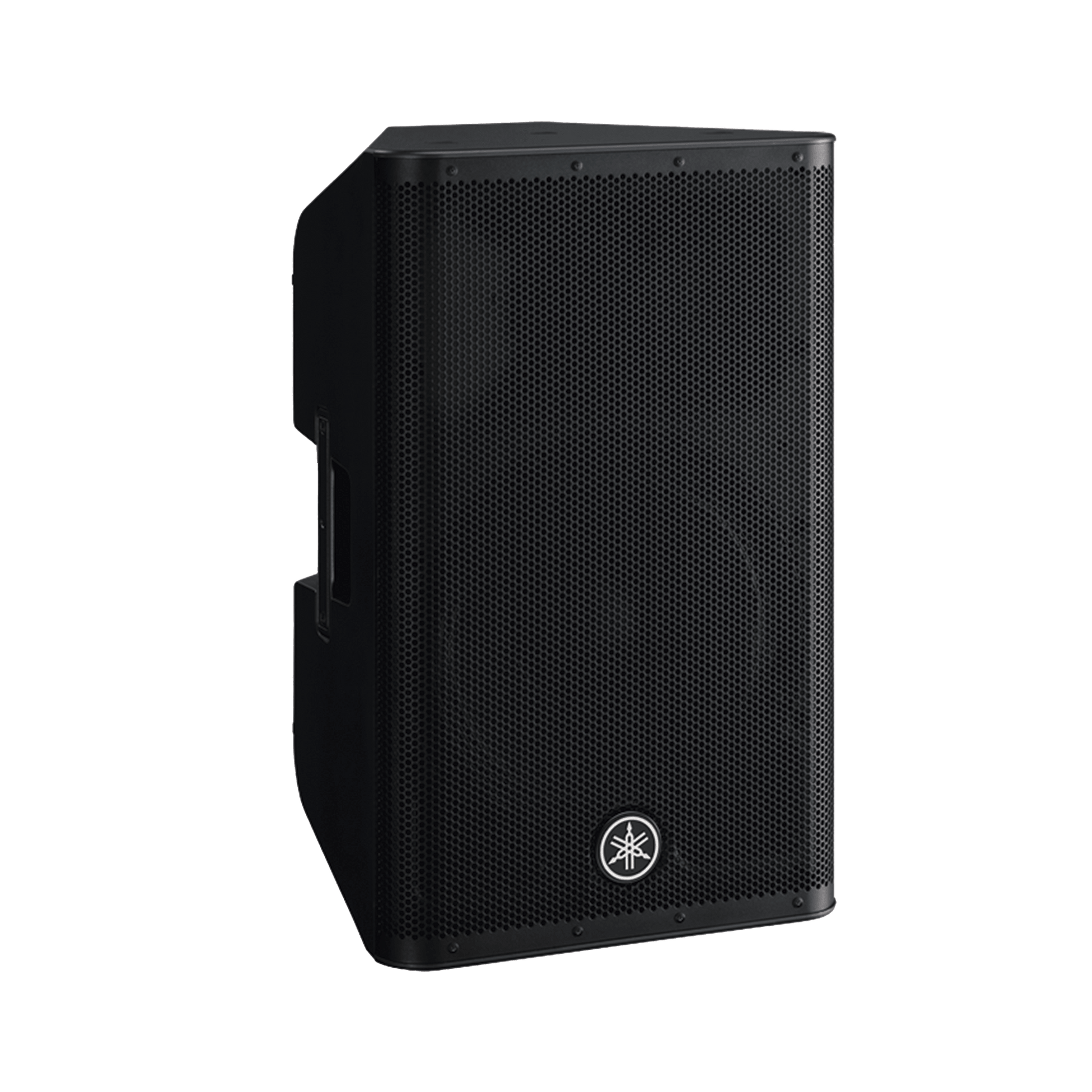

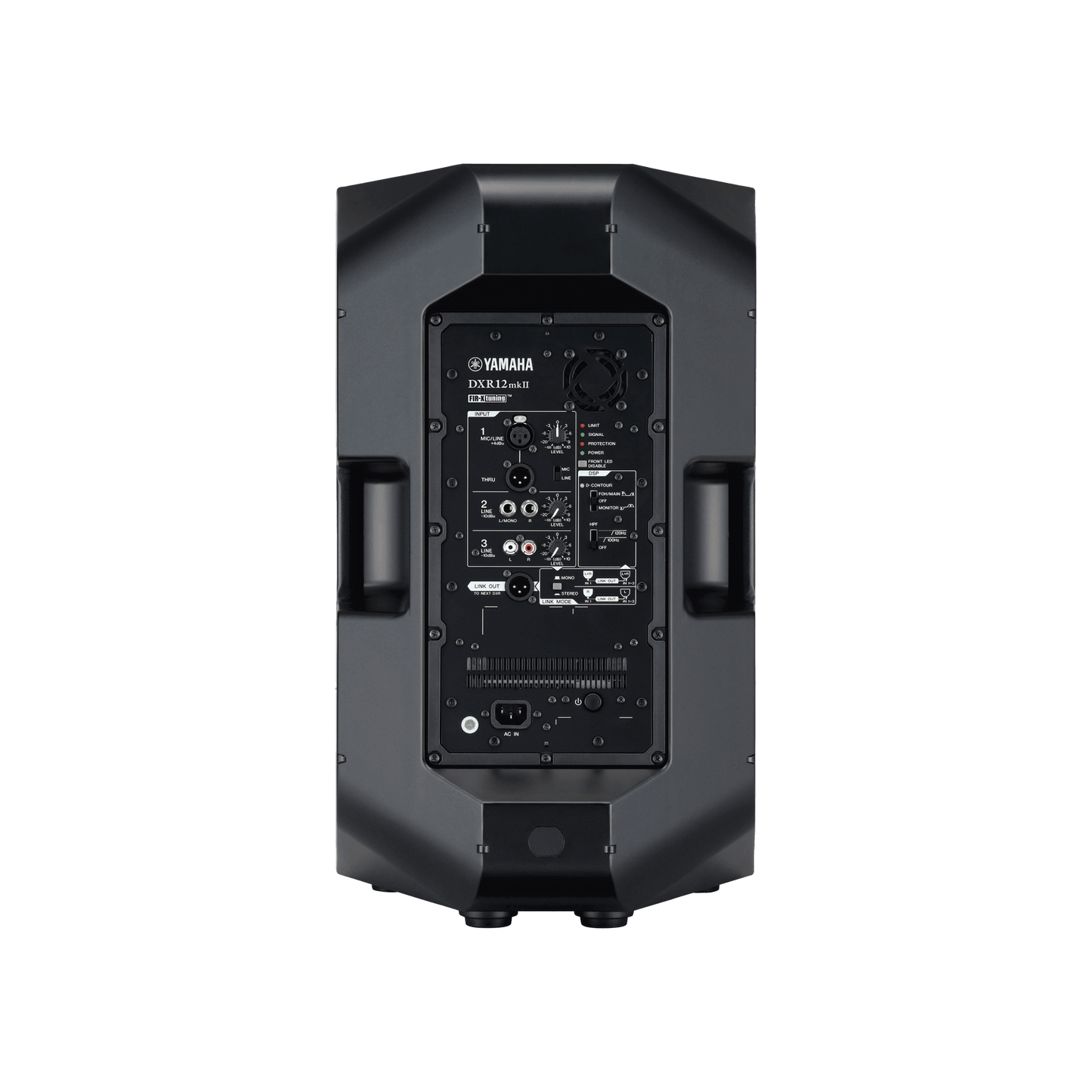

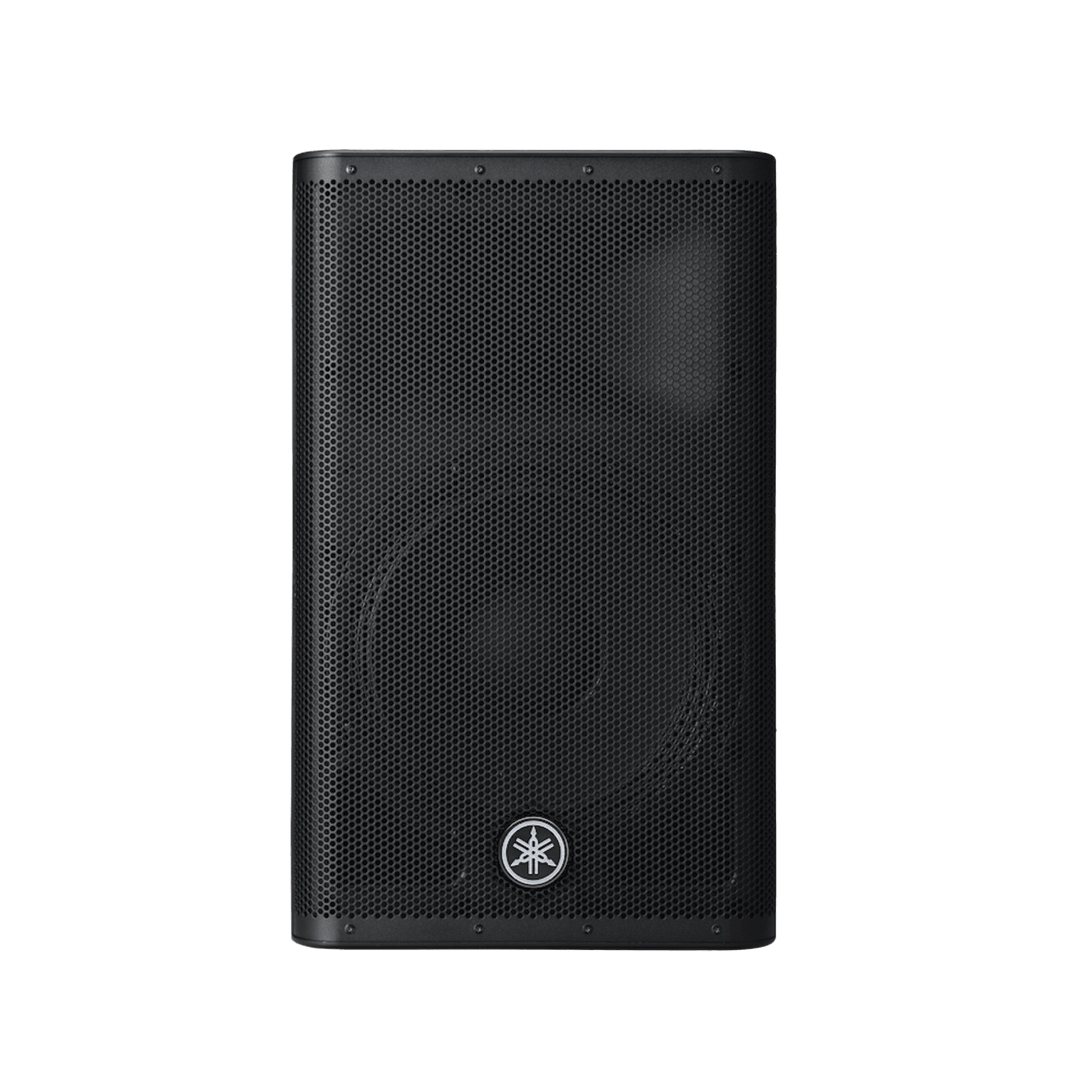

12in 2-way Amplified Speaker | Power: 1110W RMS | 134dB SPL max

  • 5e7df69f1b052355300eac85dfe407a5
  • 5ed2407bec679a6b99c7a927ccd60a84
  • 1550f329c88b01ab012d7543fdcb241b
  • 8b24143fb2801c41133e0c98a92b5c0d
1 4

Out of stock

Modelo: DXR12MKII

Proveedor: YAMAHA

Código SAT: 52161512

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

More volume, lighter, legendary

The DXR mkII Series is a series of high-power amplified loudspeakers with a maximum SPL of 134 dB. These speakers feature a larger, lighter 1,75" neodymium compression driver that provides excellent clarity and musicality in vocal reproduction. The series is comprised of four full-range models adaptable to various applications, such as monitors,, amplification, etc. Combining the series with DXS&comma subwoofers provides versatile bass control and superior sound performance. With the perfect combination of power and innovative technology, optimal for your audience.

Yamaha's ingenuity and NEXO's expertise combine for a new line of DXRs

Again, our team worked closely with NEXO, speaker experts, adding crucial knowledge and experience that led to design improvements based on the ever-evolving demands of audio professionals. Whether for stationary applications or mobile live presentations, regardless of the sound you want to achieve, DXR mkII Series meets the demands, combining raw power with our own proprietary advanced DSP features to deliver the reliability and clarity you've come to expect from the DXR series... but even more.

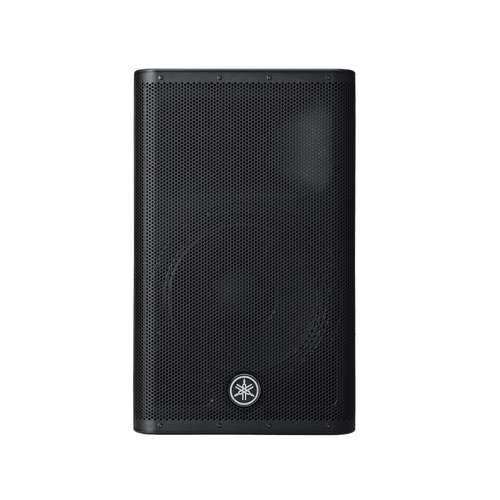

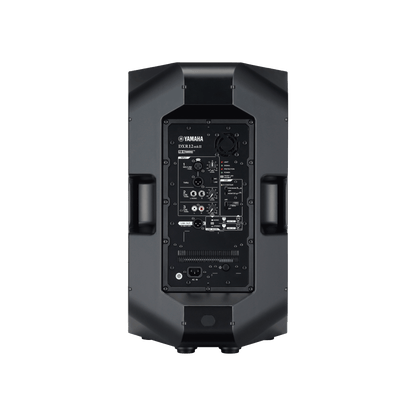

DXR12mkII 2-Way Powered Speaker: 12"

The DXR12mkII is an extremely high power speaker that can produce a maximum SPL of 134dB with its impressive 1100W power. It is the ideal solution for live sound applications requiring a wide frequency range and very high resolution sound.

The power of the "D"

Our development team has used a series of advanced digital technologies, both new and improved, based on Yamaha's extensive experience accumulated over many years of developing professional audio equipment. Everything, from detailed crossover lineup management, equalization and limiter adjustment times, to protection functions and precise control of sound dynamics

was subjected to endless simulations and field testing to ensure these speakers produce high-quality sound at the highest possible output levels. By combining this with Yamaha's advanced analog signal processing and acoustic technologies, The "power of the D" offers maximum performance.

CBR 12 general specifications

Speaker type

12" 2-way bi-amplified speaker, Bass-reflex type

Measures

W (width)

376mm (14.8")

Frequency range (-10dB)

52Hz - 20kHz

H (height)

601mm (23.7")

Nominal coverage

H (height) Edit

90°

D (depth) edit

348mm (13.7")

V

60°

Net weight

13.9kg (30.6lbs)

Components

LF (low frequency)

12" Cone, 2" Voice Coil (Ferrite Magnet)

General specifications

HF (high frequency)

1.4" Voice Coil, Compression Driver (Ferrite Magnet)

Power rating

NOISE

175W

Crossover

FIR-X tuning™ (linear phase FIR filter) PGM 350W
I/O connectors (input/output) 1/4" Phone x 1, speakON NL4MP x 1 PEAK 700W
Finish Black Nominal impedance 8Ω

Handlebar

Side x 2

SPL

Sensitivity (1W; 1m on axis) 96dB SPL
pole socket Φ35mm Bottom x 1 Peak (Calculated) 125dB SPL
Cabinet material Plastic
