10 in Amplified Speaker | Power: 700w | Class-D amplification | Made in Wood | For Installation and Sound Reinforcement applications

  • 8b3f8ba5eef95af1e77e9c90f3e870c6
  • 2bfefa1287b296f5bfe07168660d8990
  • 38e869858e5fb9b3e9ed22b4e2b39bd8
  • 02b4179277d05efdeb66f6f77dcefef2
1 4

Low stock: 2 left

Modelo: DHR10

Proveedor: YAMAHA

Código SAT: 52161512

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Incredibly simple. Impressively professional.

DHR Series

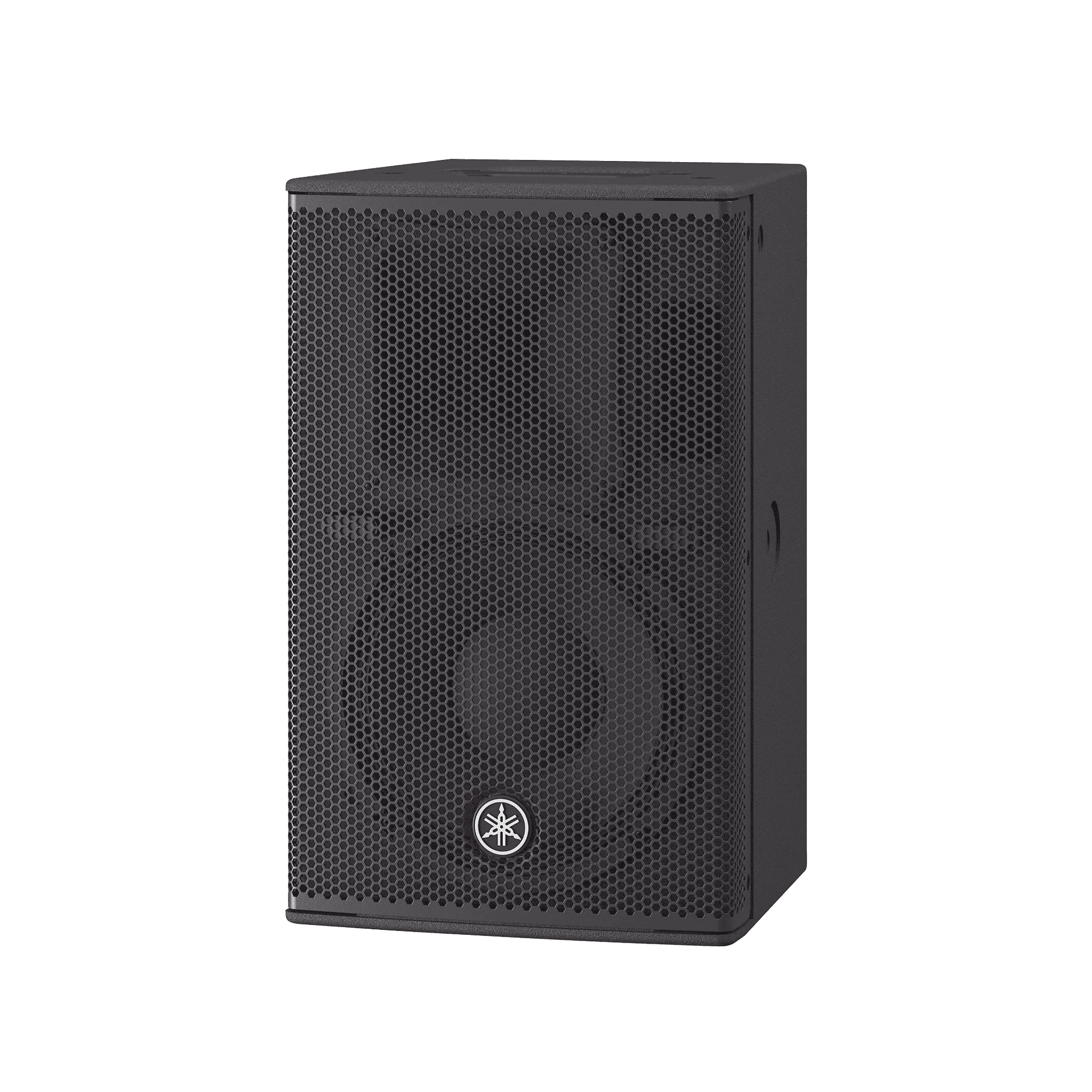

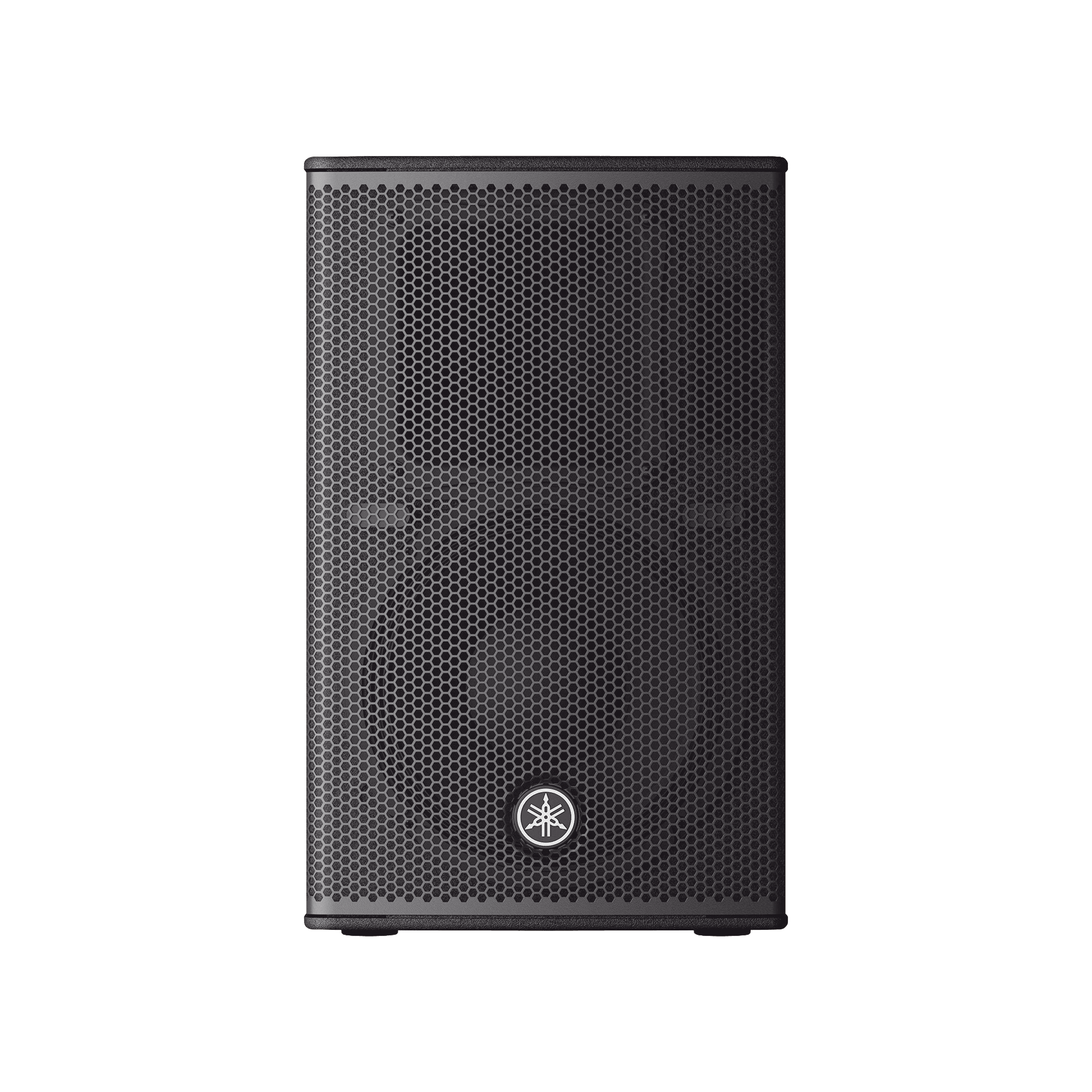

The DHR series offers an ideal solution for anyone ready to upgrade their sound reinforcement act to a new level of quality, precision and sound performance. Premium plywood cabinets finished in a durable polyurea coating provide durability not found in other speakers in this class.

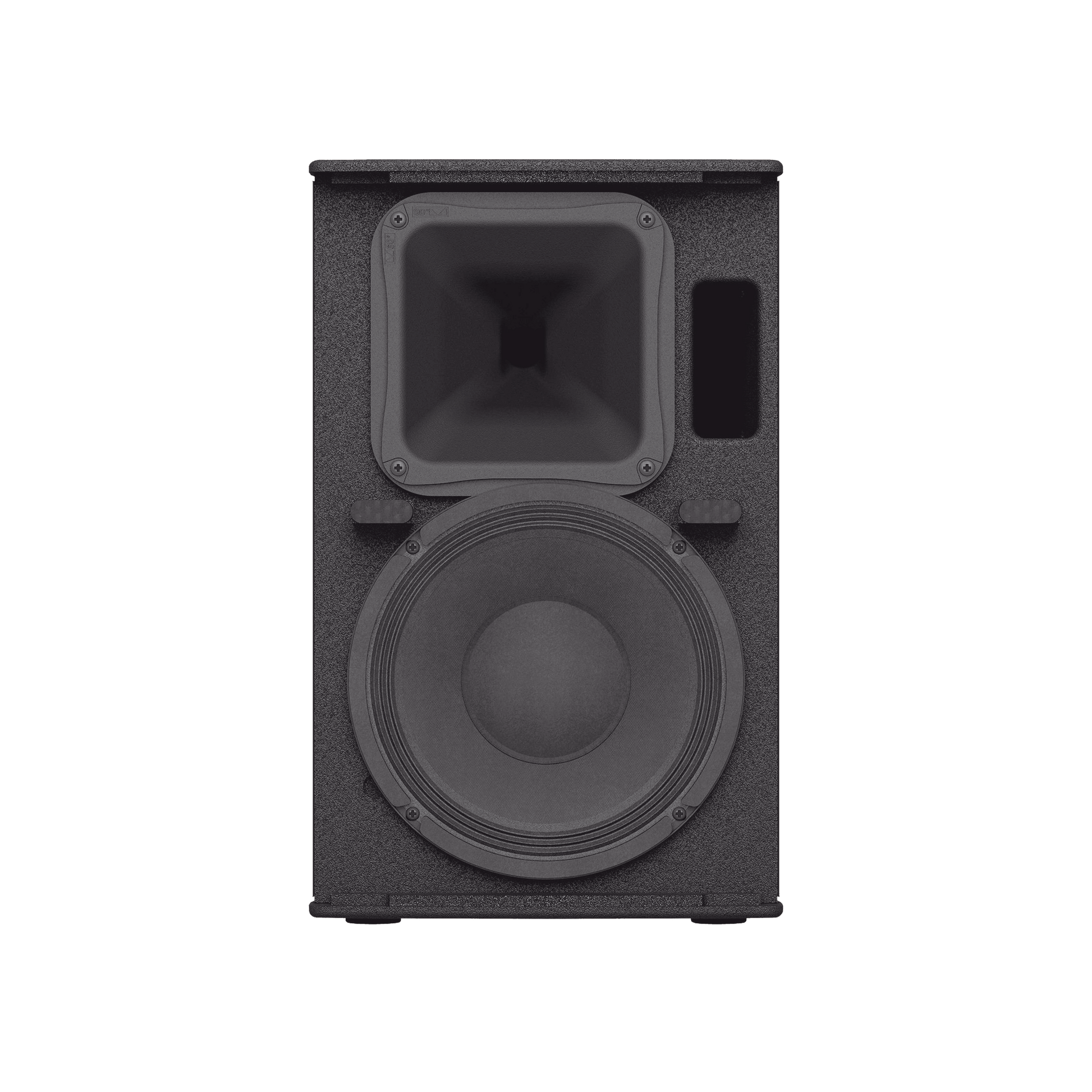

The DHR10 is a two-way, bi-amp powered loudspeaker equipped with a 10-inch woofer and a 1,4-inch HF driver, and is perfect to be used in fixed installations. Combining a 700W amplifier module and high-performance DSP with the same high-grade plywood construction found in Yamaha's high-end DZR series, The DHR10 offers best-in-class sound quality and durability.

General characteristics

  • Speaker Type: 2-way bi-amplified active speaker, bass reflex
  • Frequency Range: 52Hz - 20kHz
  • Coverage area: H90º x V60ª (Rotating)
  • Maximum output level: 128 dB SPL
  • Rated Power:
    • Dynamic: 700 W (LF: 500 W, HF: 200 W) *1
    • Continuous: 325 W (LF: 260 W, HF: 65 W)

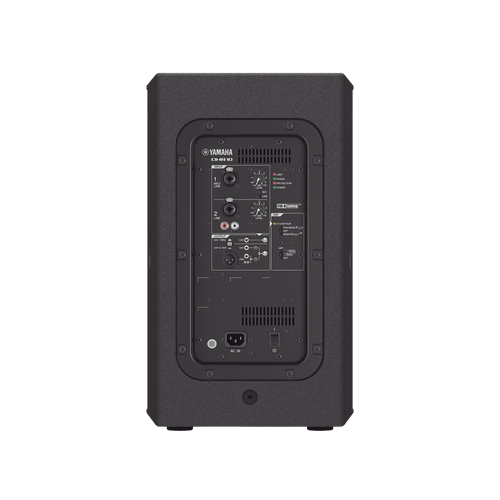

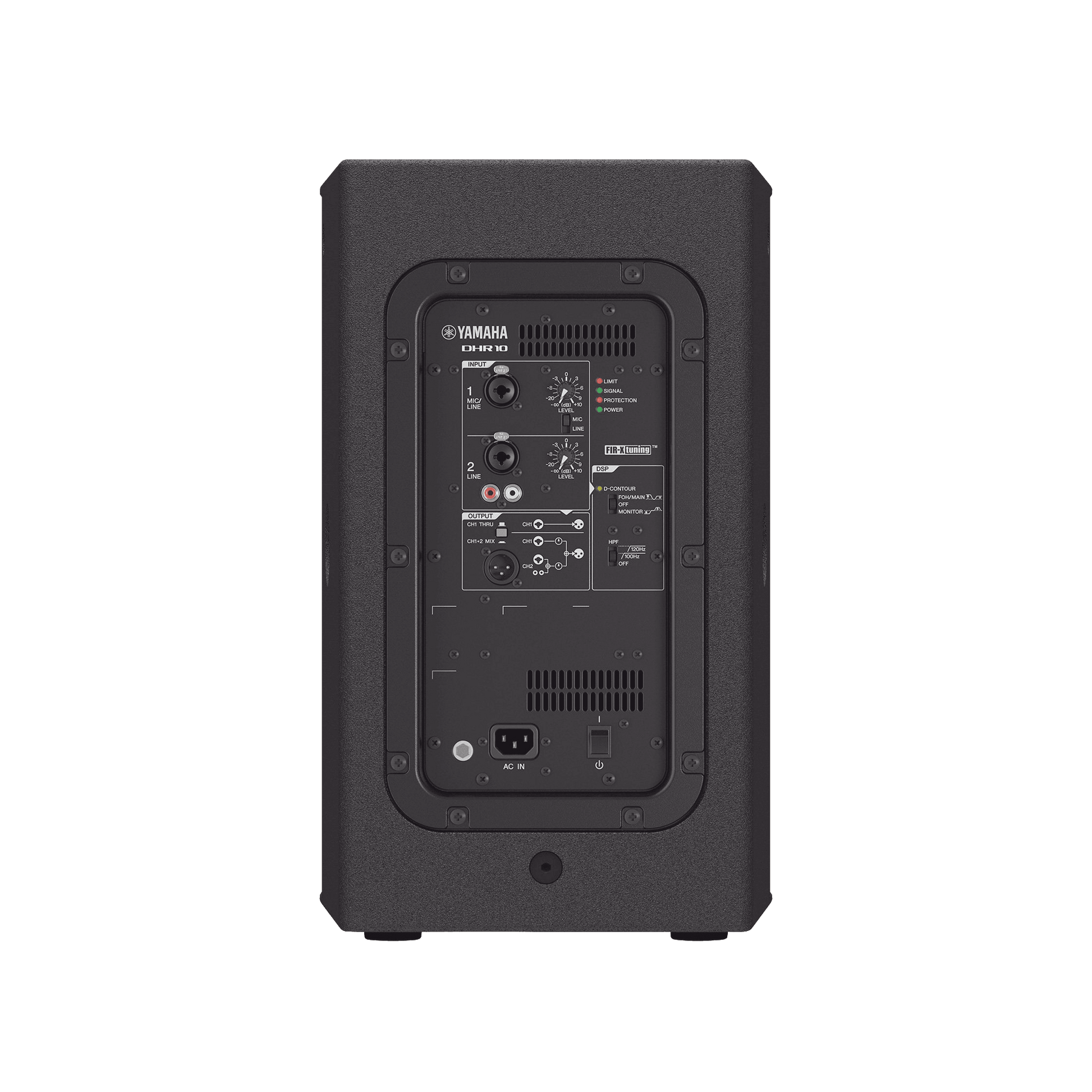

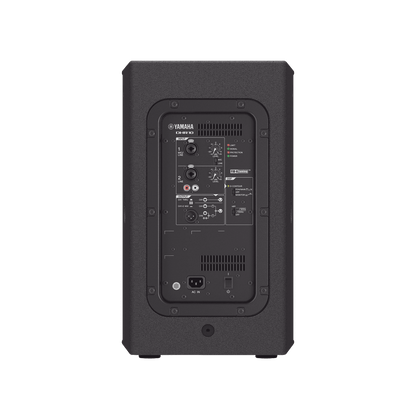

  • I/O connectors:
    • INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
    • OUTPUT: XLR3-32 x 1 (CH1 Parallel or Mix CH1+CH2)

  • Measures:
    • W (width) 305 mm (12:0")
    • H (height) 494 mm (19.5") (with rubber feet)
    • D (depth) 300 mm (11:8")
  • Net weight: 15kg
  • U Bracket (Optional) : UB-DXRDHR10
  • A post hole for use in a stand
  • Mounting points for use with eyebolts
  • Cabinet Material: Plywood
  • Finish: Durable polyurethane paint, black
