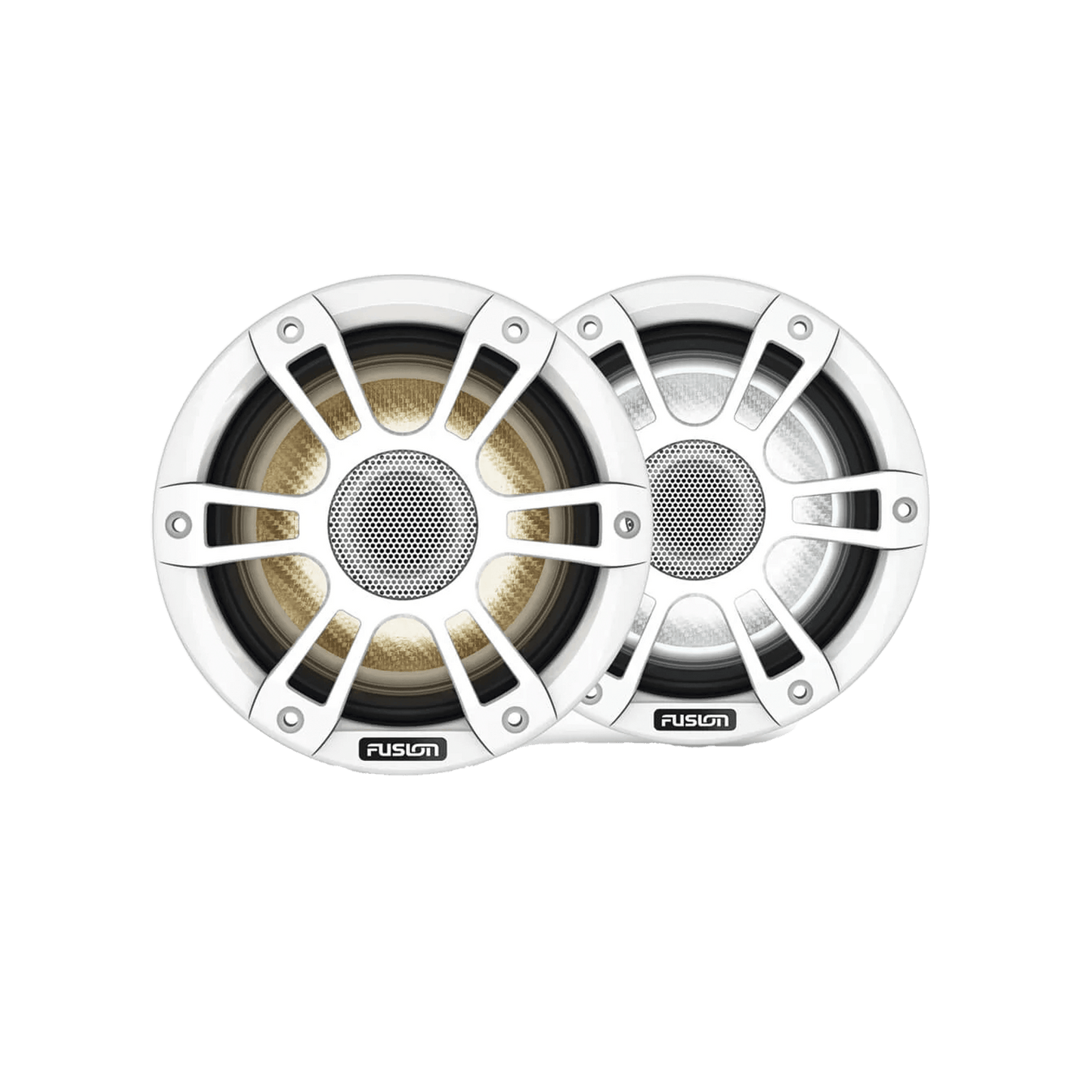

Fusion® Signature Series 3i Coaxial Marine Speakers

CRGBW 6'5" 230 Watt Coaxial Sports White Nautical Speakers (Pair)

Characteristics:

  • Manufactured in CURV cone technology with rubber edge.
  • Manufactured under IP65 standard.
  • RGB LED lighting.
  • Connector with nautical design.
  • 6.5" diameter speaker.
  • 4 ohm impedance.

Includes:

  • A pair of speakers (depending on what you select)
  • 12 Stainless Steel Phillips Mounting Screws: 4:2mm x 40mm (8 gauge x 1:6")
  • 2 sets of waterproof cables with 2-pin connector (150 mm [5,9"])
  • 2 sets of waterproof cables with 6-pin connector (150 mm [5,9"], sport style models with LED only)
  • Documentation

Technical specifications:

Description

Physical dimensions (diameter x depth) 6:5" Sports Speaker: 176 x 104:5 mm (6:93" x 4:11")
Weight (one unit) CRGBW 6:5" Sports Horn: 1:32 kg (2:9 lb)
Water and dust resistance rating IP65
Setting Coaxial
Peak power (watts) 6:5" speaker: 230 watts
RMS power (watts) 6:5" speaker: 75 watts
Sensitivity (1 watt at 1 meter) 6:5" horn: 90 dB
Frequency response 6:5" horn: 70 Hz–22 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS in watts)
6:5" speaker: 30–90 watts/channel
LED lighting Yes, CRGBW (sport style models with LED only)
LED lights supply voltage 10:8–16 VDC (sport style models with LED only)
LED lights charging current at 14:4V DC (max.) 300 mA (sport style models with LED only)
Operating temperature range 0–50 degrees Celsius (32–122 degrees Fahrenheit)
Nominal diameter of voice coil 6:5" Horn: 1:2"
cone material CURV® cone technology with rubber edge
Tweeter type silk dome
Compass safety distance 6:5" speaker: 310 cm (122")
Speaker connection Flexible cable with waterproof 2-way connector, 150mm (5:9")
Connecting the LED lighting (sports style models with LED only) Flexible cable with waterproof 6-way connector, 150mm (5:9")
Warranty 3 years

Mounting dimensions

Mounting clearance diameter 6:5" horn: 136 mm (5:35")
Mounting Depth Clearance 6:5" horn: 79 mm (3:11")

Recommendations for an optimal box

Volume of sealed box (completely filled with absorbent material) 6:5" Horn: 18 L (0:64 cu ft)
Bass reflex box volume (coated with absorbent material) 6:5" Horn: 25 L (0:88 cu ft)
Port diameter 76mm (3")
port length 6:5" horn: 162 mm (6:4")
