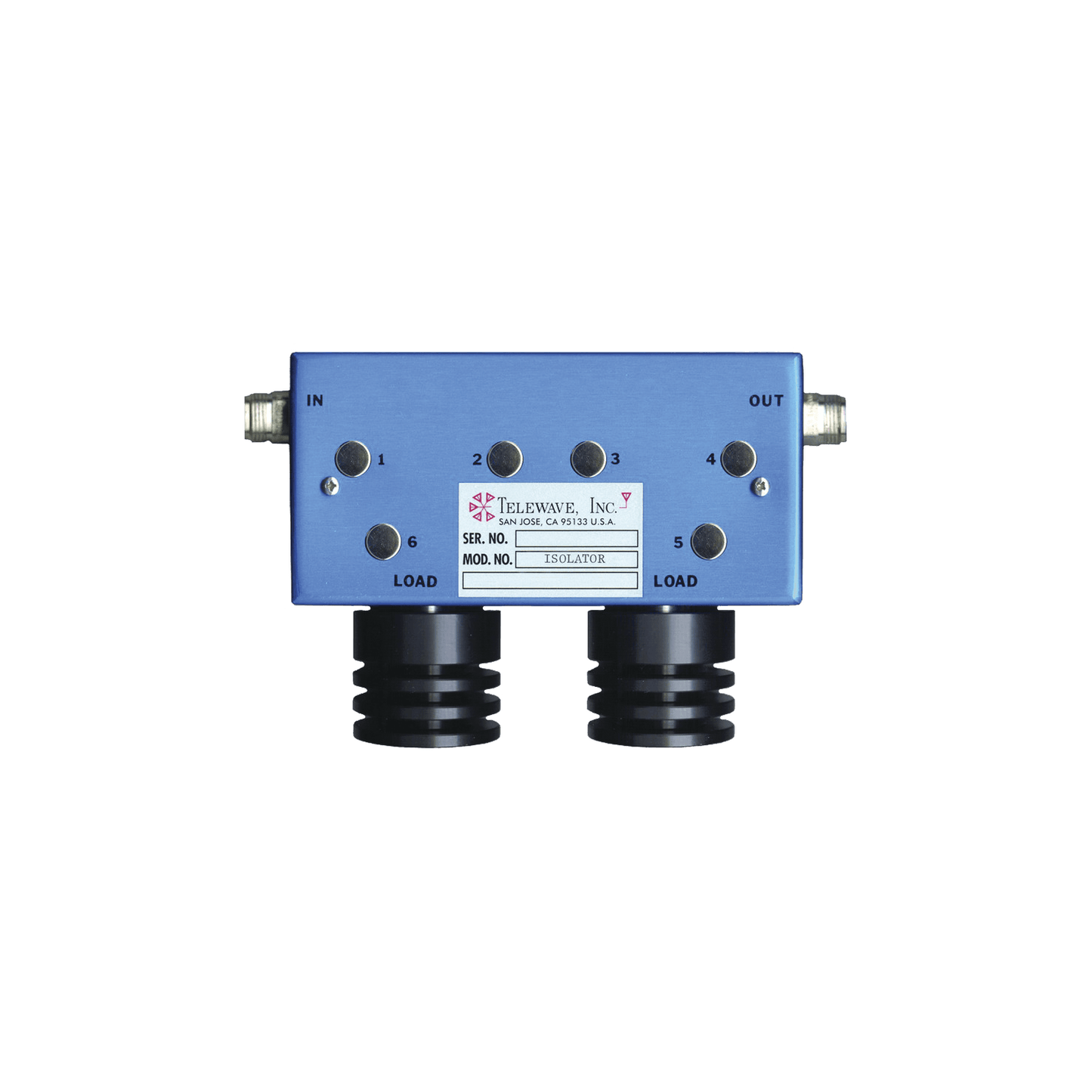

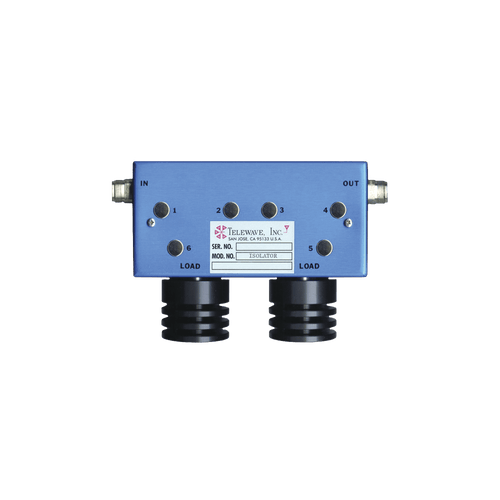

Double Isolator for 806-960 MHz, 70 dB Isolation, Adjustable in ± 6 MHz, up to 100 Watt.

  • 88c071730d379c173177be8ee3f66bcf
1 1

Out of stock

Modelo: T-8660

Proveedor: TELEWAVE, INC

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Double Isolator for 806-960 MHz, 70 dB, Adjustable in ±6 MHz, 100 Watt.

  • Frequency band: 806-960 MHz.
  • Tuning range (typ.): ±6 MHz.
  • Insulator type: Dual.
  • Isolation (typical/min.): 70 dB/60 dB.
  • Insertion loss (typical): 0.8 dB.
  • Impedance: 50 Ohm.
  • VSWR (typical): 1.25:1.
  • Input power: See graph in Technical Data Sheet.
  • Load(s) included: See table in Technical Data Sheet.
  • Connectors: N-Female.
  • Temperature range: -30°C to +60°C).
  • Dimensions (Length x Width x Depth): 16.5 x 11.5 x 5 cm.
  • Weight: 2.7kg.
  • Shipping weight: 3.2 kg.

*Ask for delivery time.
