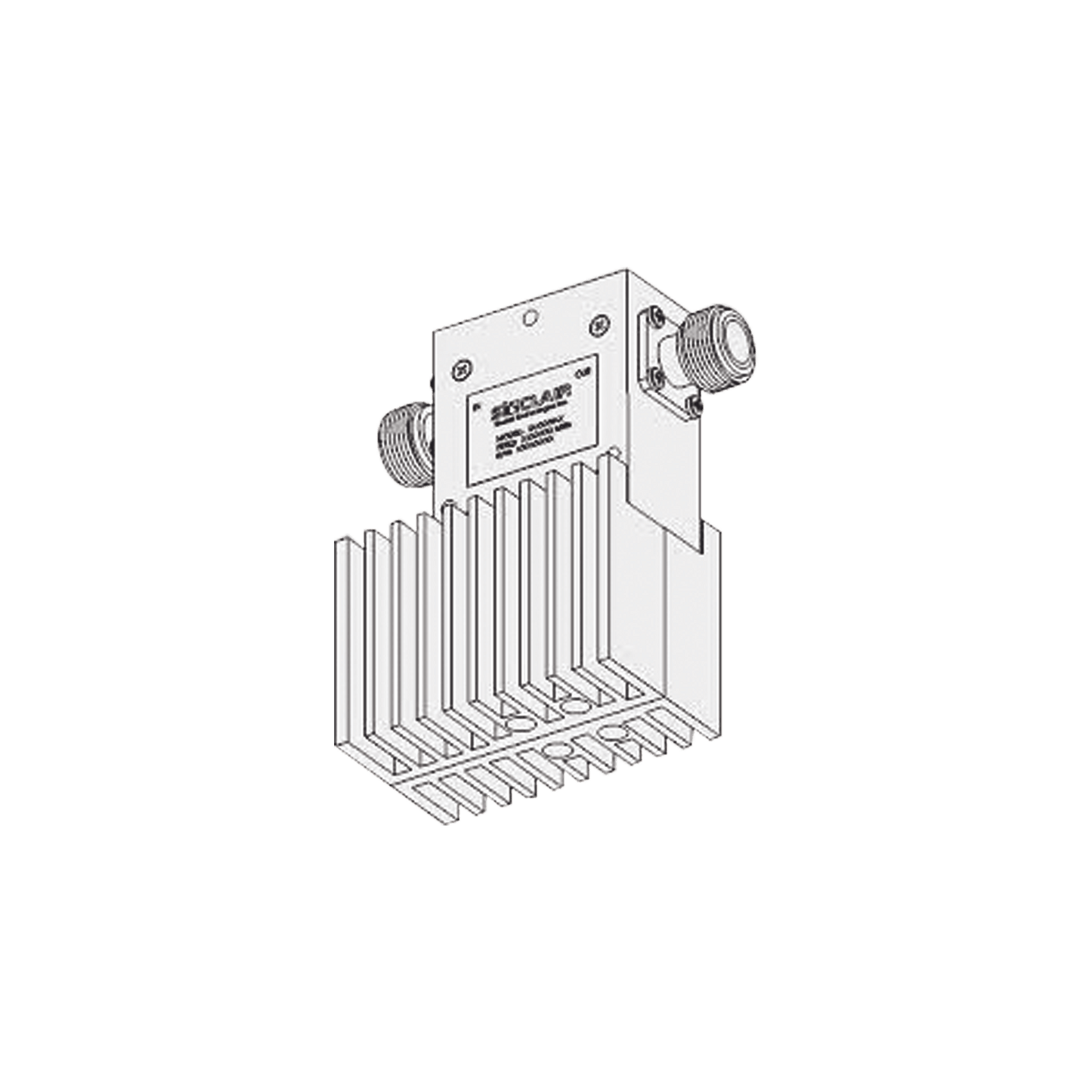

Single Stage Isolator, 380-415 MHz, 35 MHz Wideband, 60 Watt Load, 125 Watt, N Females.

  • 24ab16929000929e4e32381604081d17
1 1

Out of stock

Modelo: I3113W-2

Proveedor: SINCLAIR

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Simple Insulator, 380-415 MHz, 35 MHz, 60 Watt load, 125 Watt, N Females .

  • Frequency Range: 380-415 MHz.
  • Bandwidth: 35 MHz.
  • Type: Simple Stage.
  • Field Tunable: No.
  • VSWR (max.): 1.2:1
  • Insertion Loss (max.): 0.4 dB.
  • Impedance: 50 Ohm.
  • Average Reflected Power (max.): 60 Watt.
  • Average Input Power (max.): 125 Watt.
  • Connectors: N Females.
  • Isolation (min.): 25 dB.
  • Operating temperature: -30 to +60 ºC.
  • Net Weight (Circulator Only): 0.54 kg.
  • Dimensions (Width x Height x Depth): 38 x 88 x 64 mm.
  • Packaging Dimensions: 152 x 127 x 102 mm.

*Ask for delivery time.
