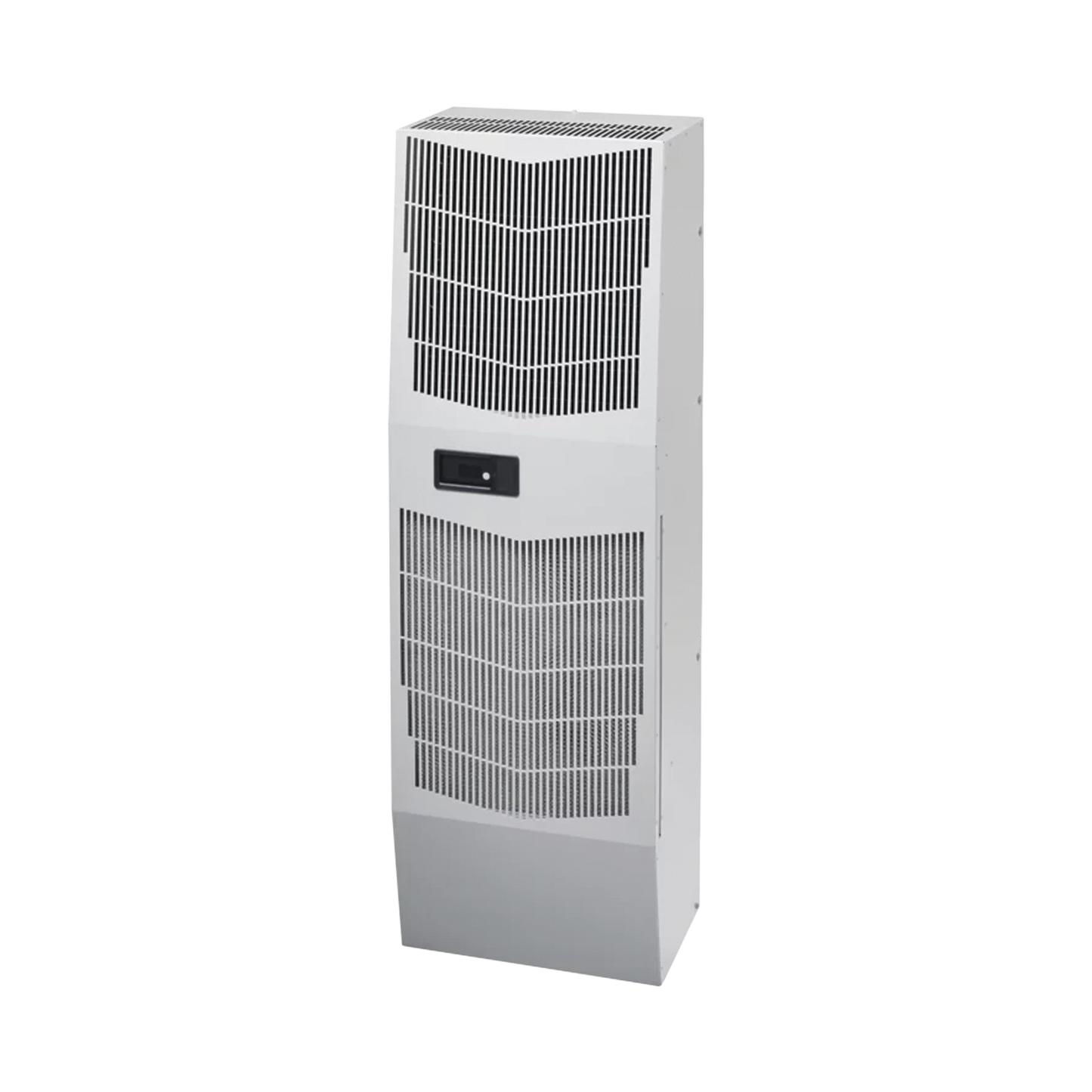

SpectraCool G52 Indoor/Outdoor Air Conditioner, Use in Telecommunications Cabinets, 8000 BTU, 115 Vac, Steel, Light Gray Color

SpectraCool compact indoor and outdoor air conditioners provide the same broad spectrum of cooling capacity and options in a space-saving solution for shallow cabinet needs.

Main features:

• Attractive industrial design with minimal use of visible fasteners
• Energy efficient rotary compressor on most models
• Reusable and washable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
• Refrigerant R134a
• 115 Vac three-phase power input
• Reliable mechanical thermostat on cabinet side
• All G Series come standard with two separate thermostats for cooling and heating when equipped with a heater
• Dust-resistant condenser coil allows unit to operate filter-free in most indoor applications
• Galvanized cover for outdoor environments
• Exterior and partially recessed mounting options
• Easy mount flanges for simple installation
• Each unit is functionally tested before shipping
• Standard indoor air conditioning models also include: active condensate management with heating strip, shutdown relay for door switch and other system requirements: malfunction switch and a digital display on the environmental side

Technical specifications:

• Height: 52.69 in./1338 mm
• Width: 17.01 in./432 mm
• Depth: 11.66 in./296 mm
• Material: Steel
• Rated voltage: 115V
• Nominal capacity (Watts): 2300
• Rated capacity (Btu/h): 8000 BTU/h
• Protection Rating: NEMA Type 4; NEMA Type 3R
• Operating temperature: 50–131°F / 10–55°C
• Max current: 11.4 A
• Remote access control: No
• Finish: Electrostatic coating
• Color: Light gray
• Color code: RAL 7035
• Thickness: 20/1 mm gauge
• Weight: 135 lb (61.23 kg)
