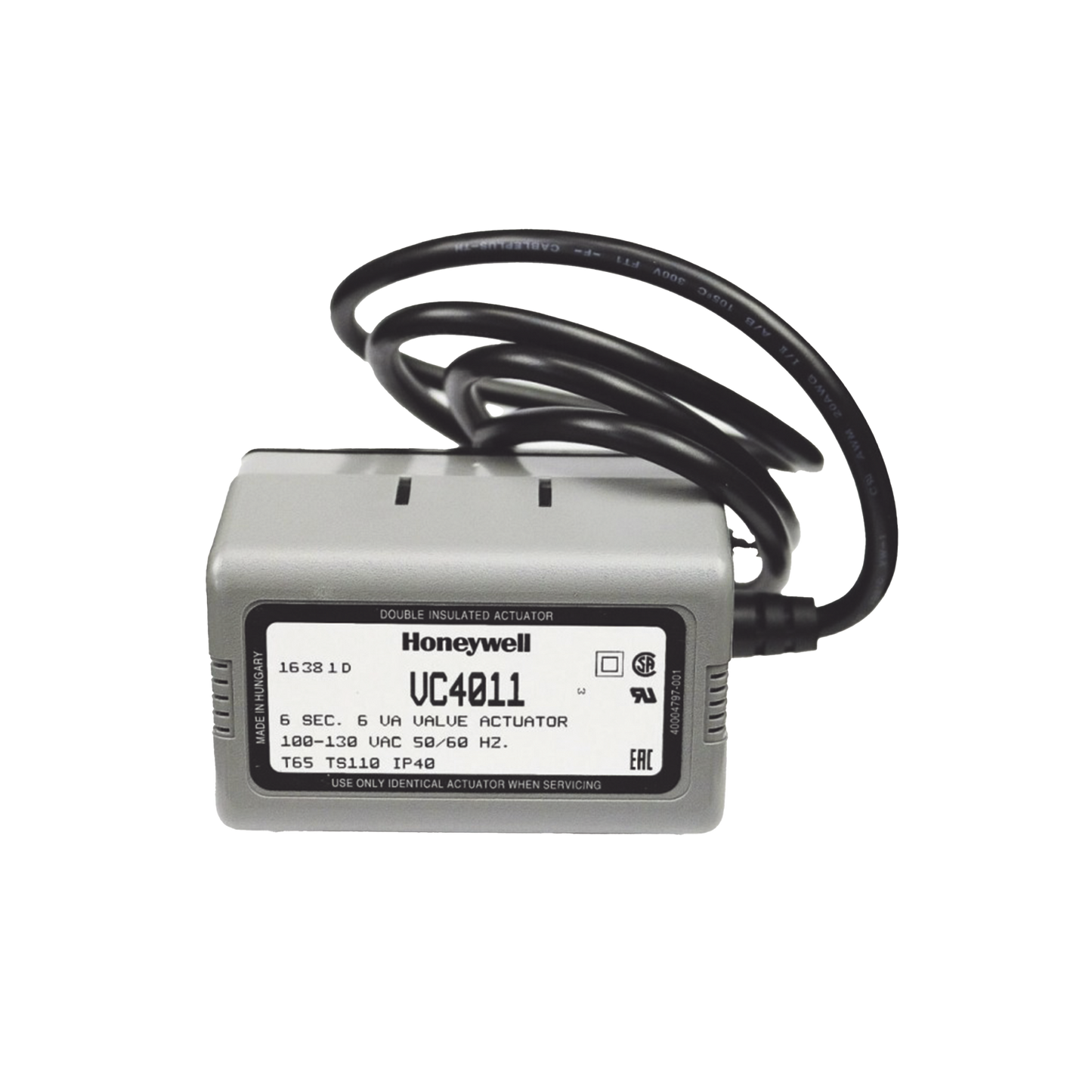

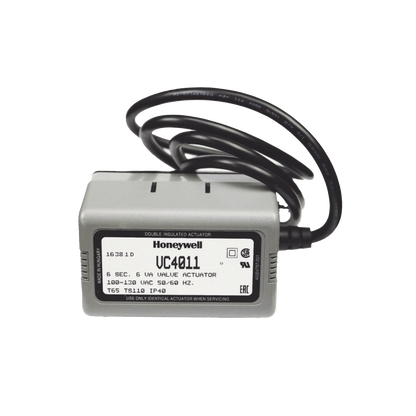

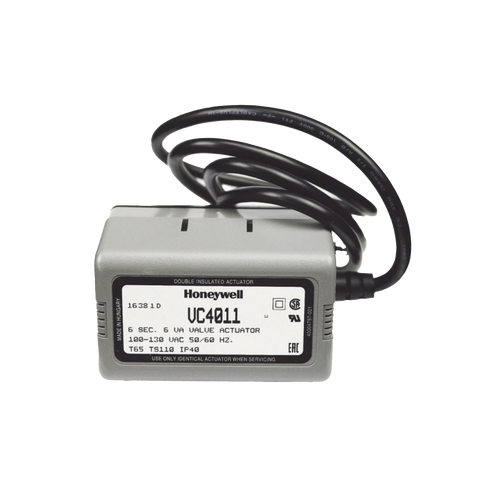

120vac On/off actuator. Ideal for controlling hydronic chilled water, hot water or radiant floor systems

  • 24aefd688a1d3f8bb4b3576e73a374ea
  • 24aefd688a1d3f8bb4b3576e73a374ea
1 2

89 in stock

Modelo: VC4011ZZ00

Proveedor: HONEYWELL HOME RESIDEO

Código SAT: 39121909

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

General description

Control central heating and/or cooling systems, fan & coil systems, radiators and convectors. According to the selected model, can be controlled by low or line voltage SPST or SPDT controller, like a room thermostat.

Characteristics

  • Use with two or three-way valves.
  • Minimum actuator power consumption.
  • Quick connect electrical connections or one meter cable available.
  • Quick and easy replacement of moving parts.
  • Installation of the actuator head does not require draining the system.
  • On/Off models with six second nominal time
  • Use two-position actuators with Series 1000 2-way and Series 6000 3-way VC valve bodies only.
  • All VC Series valve and actuator combinations provide 60 psi shutoff.

Product specifications

Application
air conditioning
Dimensions (inches)
2.8"H x 3.7"W x 2.7"D
Dimensions (mm)
70 mm high x 94 mm wide x 68 mm deep
Includes
valve body
Used with
VC series valve
Weight (lb)
0.73 pounds
Weight (kg)
0.33kg
Materials
Plastic shell
Item type
Product
Mounting
Direct coupling
Frequency
50Hz; 60Hz
Approvals, Underwriters Laboratories Inc.
UL Recognized, File #MH11826
Approvals, Canadian Standards Association
CSA Certification: LR1322-367
Electric connections
Wire
Operating Humidity Range (%RH)
5 to 95% RH, no condensation
Supply voltage
120V
Power consumption
Driving: 6 VA
Shipping and Storage Temperature Range (F)
-40F to +150F
Shipping and Storage Temperature Range (C)
-40C to +65C
Approvals, EC
89/336/EEC, 73/23/EEC
Ambient temperature range (C)
0C to 65C
Ambient temperature range (F)
32F to 150F
Electrical connections (in.)
39 inches
Electrical connections (mm)
1 meter
Environmental protection classification: electrical or entry
IP40, double insulation
Internal auxiliary switch
0
Fluid temperature (C)
95C
Fluid temperature (F)
203F
Actuator type
Valve
control signal
two positions; SPST
Failsafe mode
stays in place
Stroke (inches)
0.4 inches
Stroke (mm)
10mm
Wire
Molded strain relief
Nominal time
Driving @ 60 Hz-- 6 seconds
Maximum Differential (Closing) Pressure Ratings (psi)
60 psid
Maximum differential pressure (closing) ratings (kPa)
400 kPa
Shaft adapter type
Self-alignment
Operation manual
Lever
