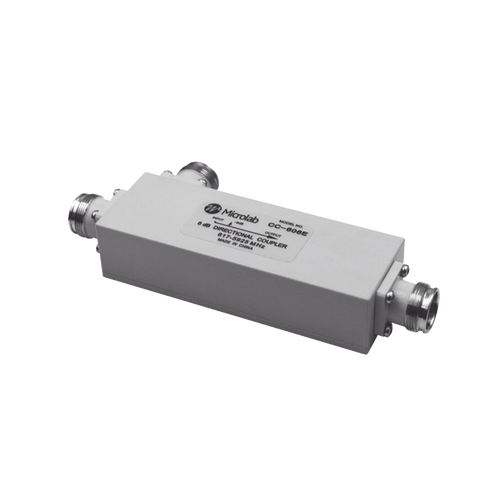

Directional coupler 7dB 617-5925MHz 300W-161dBc 4.3-10 IP67

DIRECTIONAL COUPLER 7DB 617-5925MHZ 300W-161DBC 4.3-10 IP67

Description

The CC-6xxE series is designed to cover 617 to 5925 MHz. The units couple a defined fraction of signal with minimal reflections or losses. Availability in a wide range of coupling values ​​makes this series useful for optimizing the power distribution required in 5G passive distributed antenna systems (DAS). Extremely wide frequency range allows use with multi-band antennas, leaky cable systems and wireless base stations. With minimal solder joints and a low loss dielectric, Dissipative loss has been minimized and reliability has been improved.

Characteristics

• Ultra Wideband Directional Couplers for 5G FR1 Signal Distribution
• 300W average main line power
• Minimal RF insertion loss and high directivity
• Guaranteed low PIM
• 4.3-10 Connectors
• IP67 rating
• RoHS Complaint

Specifications

Frequency: 617 to 5925 MHz
Directivity: 20 dB min for 617-2700MHz
18 dB min for 2700-4900MHz
17 dB min for 4900-5925MHz
VSWR: 1.20:1 max for 617-3800MHz
1.30:1 max for 3800-5925MHz
PIM: - 161 dBc (-118 dBm) min.
Rated power: 300W average, 1 kW pk*
Dissipative loss: 0:3 dB max
. Impedance: 50 Ω nominal
Group delay: 1:2 ns typ.
Environment: -40°C to +75°C, IP67
Housing Finish: Painted
Connectors: 4:3-10 (f) 4-hole triple plate flange
Weight: 0:9 lb (0:41 kg)
Dimensions:
5-8 dB: 5:53 x 1:64 x 1:10 inches
[140:5 x 41:6 x 28 mm]
10-20 dB: 5:61 x 1:72 x 1:10 inches
