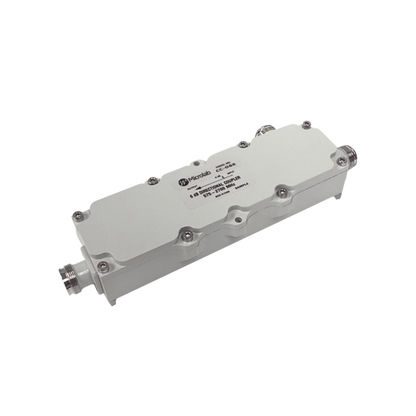

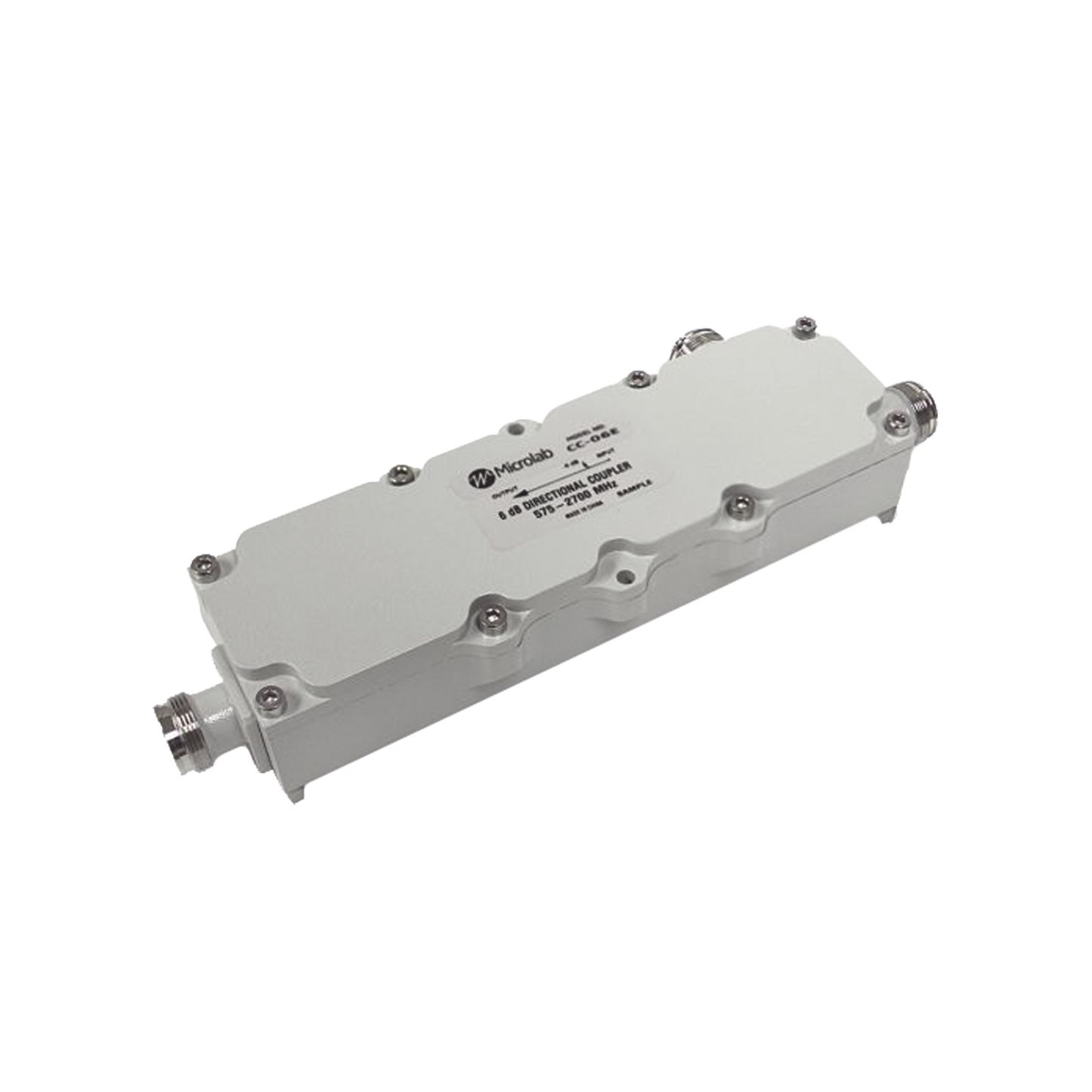

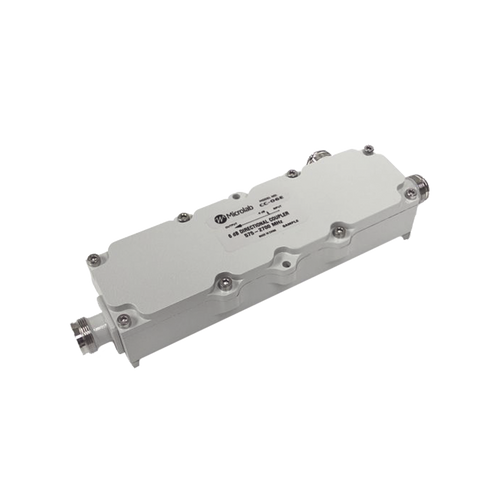

DIRECTIONAL COUPLER 6DB 575-2700MHZ 300W - 161 DBC 4.3 - 10 IP67

The CC-xx series of directional coupler is a tapered ribbon line design covering 575 to 2700 MHz. The units couple a defined fraction of signal with high directivity and minimal loss. Availability in a wide range of coupling values ​​makes this series valuable for optimizing the required signal distribution in a passive distributor radio access network (D-RAN). The wide frequency range allows applications with multi-band antennas, leaky cable systems and wireless base stations. With minimal solder joints and a low loss dielectric, Dissipative loss has been minimized and reliability has been improved.

• Standard bandwidth for commercial wireless signal distribution applications

• Flat response from 575 to 2700 MHz

• Low PIM guaranteed

• Average power of 300 watts

• Available in 4.3-10

• RoHS

Frequency: 575-2700MHz
Coupling: 6dB
Coupled loss: 1:25 dB max.
Energy: 300 W average, 1 kW package
Directivity: 20 dB min.
VSWR: 1:25:1 max
PIM: -161 dBc (-118 dBm) min.
(Test with 2x 1900MHz, +43 dBm tones @ ambient)
Connectors: 4-hole flange 4.3-10(f) Triple plate
Ingress Protection: IP67
Weight: 1:6 lbs (0:73 kg) nominal
