Directional coupler 10dB 694-2700 50W type N

DIRECTIONAL COUPLER 10DB 694-2700 50W N TYPE

Description

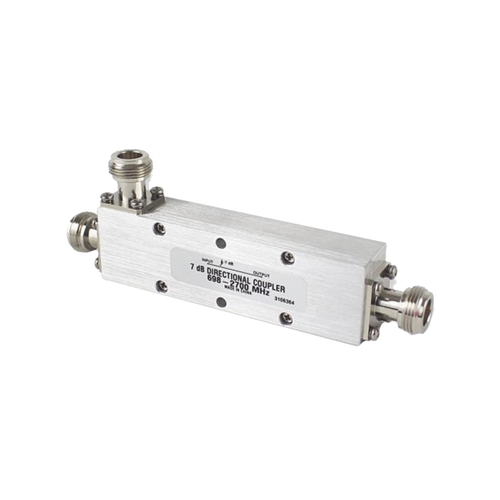

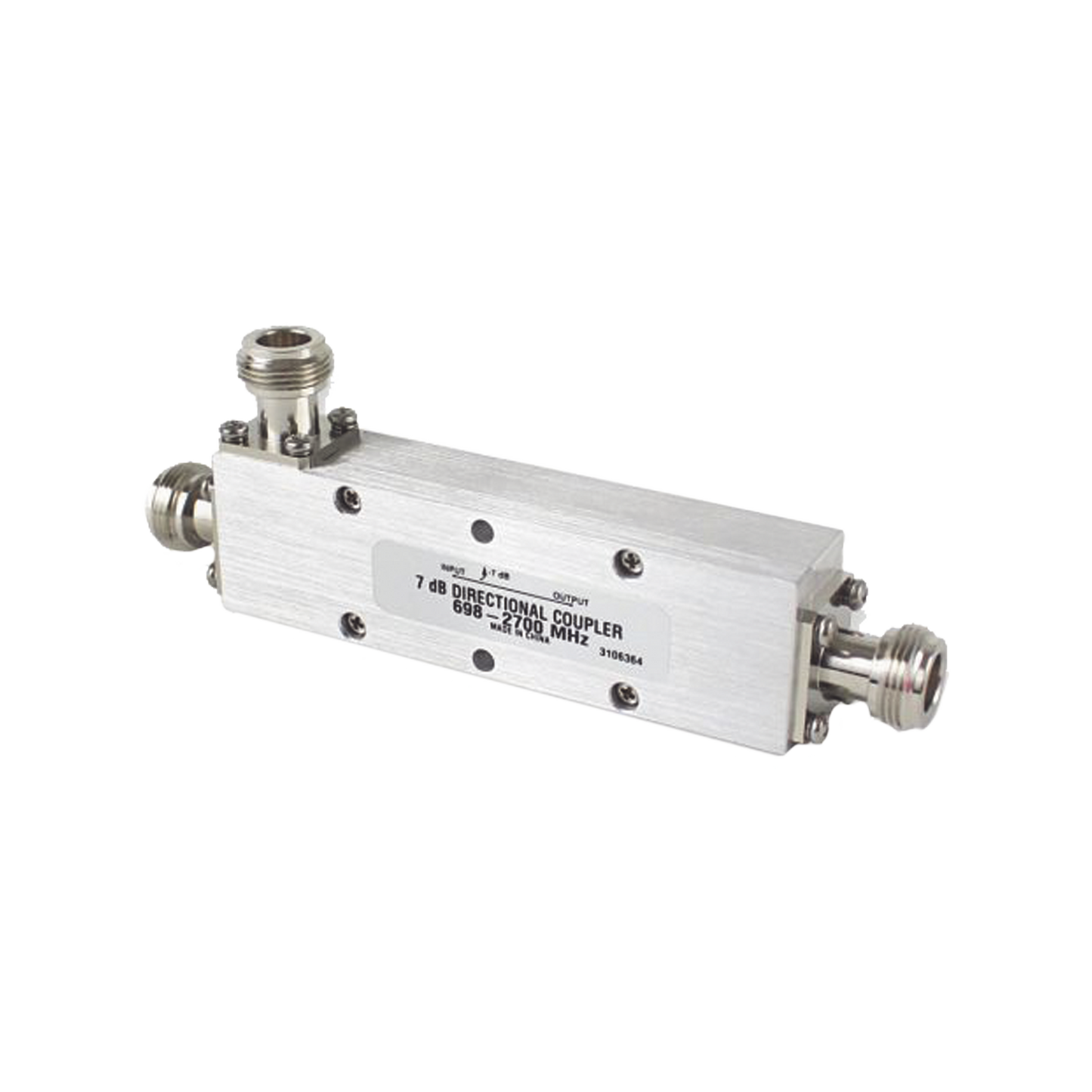

Microlab's CK-50N series of N-type directional couplers is a multi-section quarter-wave microstrip design for indoor applications that covers all wireless bands from 694 to 2700 MHz. The units couple a defined signal fraction of 5 at 20 dB with minimal reflections or losses.

The wide frequency range allows use with multi-band antennas and leaky cable systems and in wireless base stations. With minimal solder joints and an air dielectric, Dissipation loss has been minimized and reliability has been improved.

These directional couplers can also be used as unequal splitters or tappers, which are generally specified by the power ratio between the outputs. For convenience, these are shown in the table.

Characteristics

• Coupling values ​​from 5 to 30 dB
• Good VSWR directivity and loss
• Broadband cellular to WiMAX
• 50 watt average power
• RoHS
• Effective as tappers for DAS building interior systems
