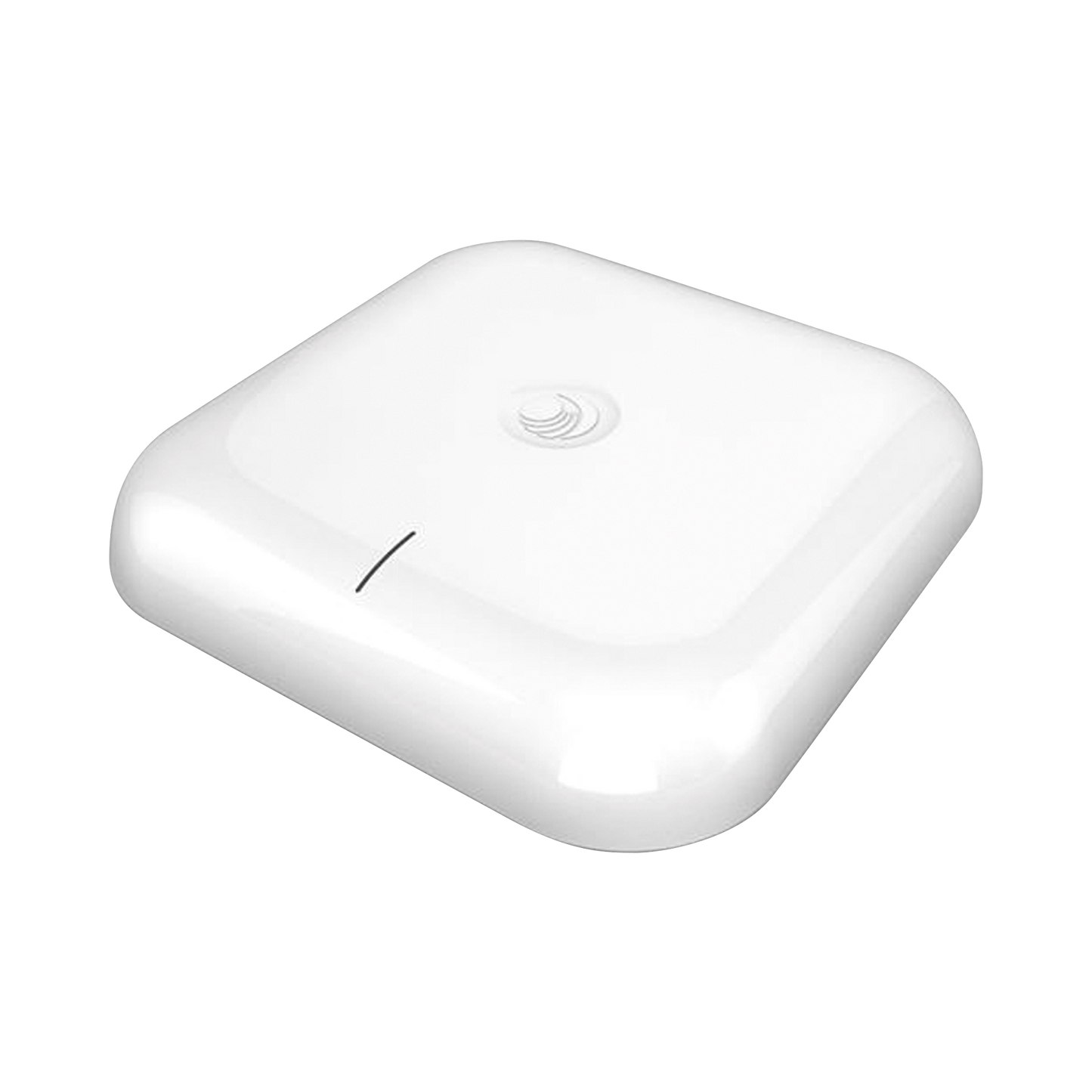

XV3-8 Wi-Fi 6 Access Point

802.11ax
Standard + MESH 1:024
Omi users
360º cnMaestro or XMS Controller

High-density architecture reduces the equipment required while leveraging automation to deliver SLAs. XV3-8 includes continuous roaming, fast roaming, Automatic RF optimization and interference avoidance to automatically optimize performance for specific local needs. This software-defined 8X8 Multiradio Access Point is equipped with dedicated scanning radio.

Free management in cnMaestro Comprehensive management of the entire network for inventory management, device incorporation, daily operations, maintenance, configuration and provisioning, as well as the creation of tickets and/or vouchers, time and bandwidth control, and captive portal.	Designed for high capacity Triple Play Supports up to 512 active users with high traffic and up to 16 SSIDs.
aesthetic design for ceiling Designed to be installed on the ceiling of hallways or offices without losing the aesthetics that a network device could cause, It adapts to any scenario.	Roaming and MESH Backhauling capacity for MESH type designs and supports Roaming so as not to lose connectivity when moving between rooms.
Guaranteed, Categorized as the best Cost-benefit Access Point XV3-8 Delivers a reliable, high-capacity indoor Wi-Fi networking solution at a significantly lower cost than its premium competitors. You will save network nodes and we guarantee the equipment for 5 years.	Control what happens on your network. Limit access to restricted pages using the Master ACL

Designed for edge and high-density services

The XV3-8 features a total of five (5) radios to deliver a next-generation network with high-capacity, high-density edge services. Three data radios can be configured as two 5GHz 4x4s plus one 24GHz 4x4. or the two 5 GHz radios can be combined into a single 8x8 5 GHz radio with the full power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to improve security protocols, Detailed network reports and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a high-capacity, multi-radio Wi-Fi 6 AP designed for the most demanding networks in enterprise locations, educational, retail and public.

Comparison with other brands

WiFi 5 vs WiFi 6

Maximum number of connected devices: 1024 Wi-Fi devices.

Operation modes: Access Point or Router (NAT, DHCP Server and Firewall).

Maximum coverage range: 250 meters with line of sight.

Main features:

Standard 802.11 a/b/g/n/ac Wave 2/ax.

8 spokes. Dual band combination (2.4 and 5 GHz).

MU-MIMO 8x8

Up to 1:147 Mbps on 2.4 GHz.

Up to 4804 Mbps at 5 GHz.

Omnidirectional Antennas: 5 dBi in 2.4 GHz and 6.7 dBi in 5 GHz.

Power: 24 dBm at 2.4 GHz and 25 dBm at 5 GHz.

General characteristics:

Administration type: Standalone, cnMaestro Cloud Managed (free) and cnMaestro on-premises VM or XMS Cloud.

Up to 16 SSIDs (Flexible in any band)

Fast Roaming: Navigate from cell to cell without losing connection.

ACL: Create blocking rules for Web pages.

ACS function for automatic channel change to avoid interference.

Schedule SSID to activate SSID on desired days at certain times.

Hotspot captive portal from the cloud, customizable vouchers.

Limit bandwidth per user or SSID.

Isolation between clients to prevent them from entering the network, Broadcast and Multicast storms.

Load Balancing to balance the load between each band.

Supports MESH.

Physical and electrical characteristics.

1 port 802.3 10/100/1000/2500/5000 Mbps PoE IN 802.3at, Powered by cnMatrix Switches or PoE power supply model N000000L034A, not included).

1 port 802.3bz 100/1000/2500/5000 Mbps Auto sensind MDIX

1 USB 3.0 port

Maximum consumption: 35 W

Free administration using cnMaestro controller from the cloud, requires no additional hardware.

Package includes the following:

Requires PoE power supply model N000000L034A.

Comparison of cnPilot 802.11ax models
