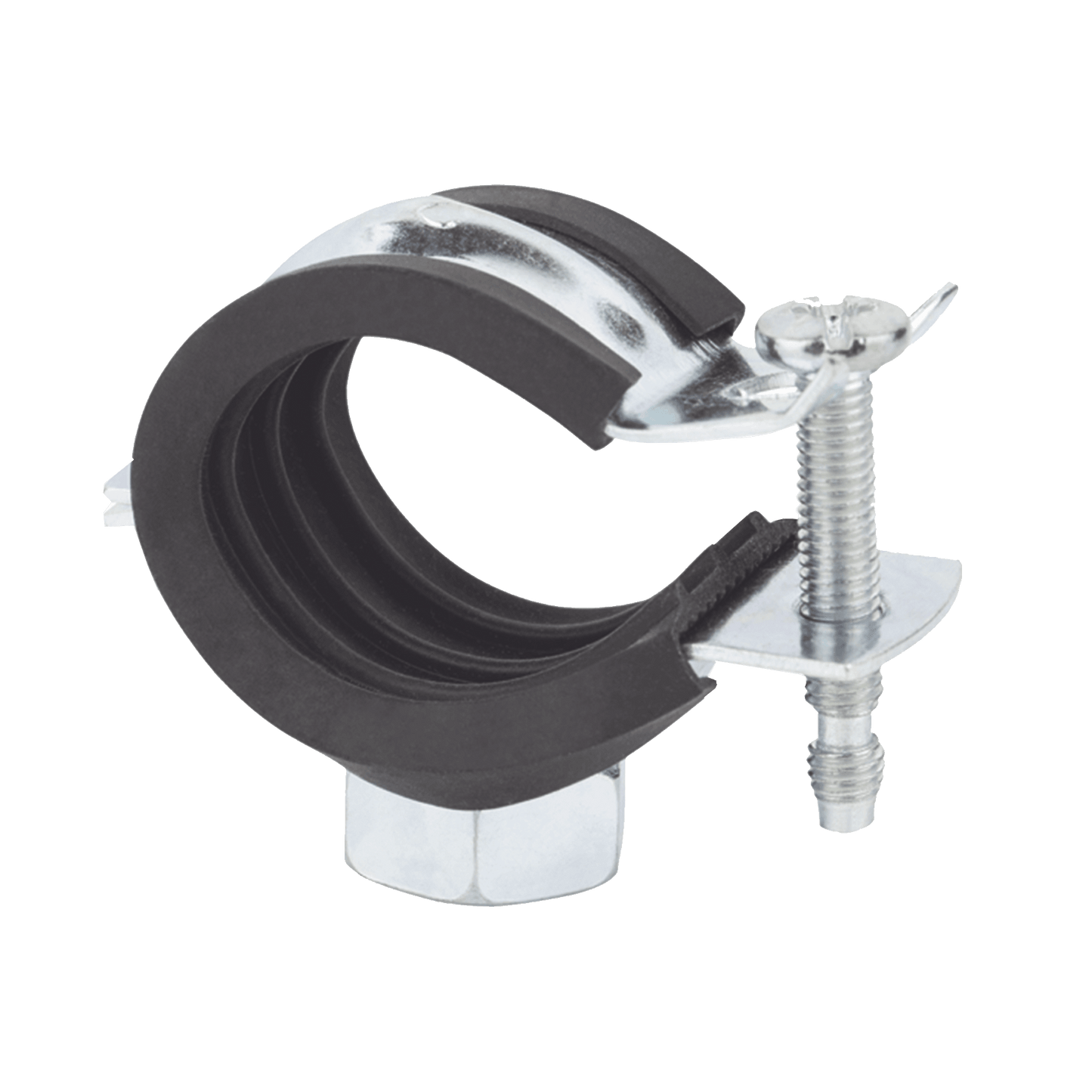

Quick installation isophonic clamp 2\" (60 mm).

  • cf86745e2fb93d4402b5ccc0e9f1652a
1 1
  • Acabado cincado electrolítico, recubrimiento 5 micras
  • Apertura vertical para instalación rápida
  • Goma EPDM para aislamiento y reducción de vibraciones
  • Perfil de acero 1.2 mm de espesor
  • Rango de temperatura: -30°C a +120°C

342 in stock

Modelo: AB-IRP-060

Proveedor: INDEX

Código SAT: 31162414

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Isophonic Clamp Quick Installation

Characteristics :

  • Surface finish: electrolytic zinc plating, coating >5 microns.
  • Vertical opening to allow quick installation. It has a single screw.
  • EPDM rubber for insulation, reduction of sound and vibrations.
  • 3/8” welded nut.
  • Complies with the Technical Building Code, CTE, HS and HR Basic Documents sections.
  • 1.2 mm thick steel profile.
  • Indicated for water supply installations (ACS and AF), water evacuation (sanitation), thermal installations (air conditioning, heating), compressed air, diesel installations, etc
  • Working temperature: -30 ºC ÷ +120 ºC.
  • Ease and speed of assembly.

Technical data:

  • Measurement millimeters: 60 mm
  • Internal diameter: 2" (57-60 mm)
  • Dimensions: 19 x 1.2mm
  • Recommended maximum load: 60 kg

DATA SHEET
