Quick installation isophonic clamp 1 1/4\" (42 mm).

  • 10236b6273b238c2d05db7acd64f62b6
  • f0a49012d3962e00530fc1b41ed0c111
  • 84f0e3bc50b8d0bf61eff76d12f36679
1 3
  • Recubrimiento cincado 5 micras para durabilidad
  • Apertura vertical, instalación rápida y sencilla
  • Reducir sonido con goma EPDM aislante
  • Perfil acero 1.2 mm espesor resistente
  • Temperatura trabajo: -30°C a +120°C

378 in stock

Modelo: AB-IRP-040

Proveedor: INDEX

Código SAT: 31162414

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

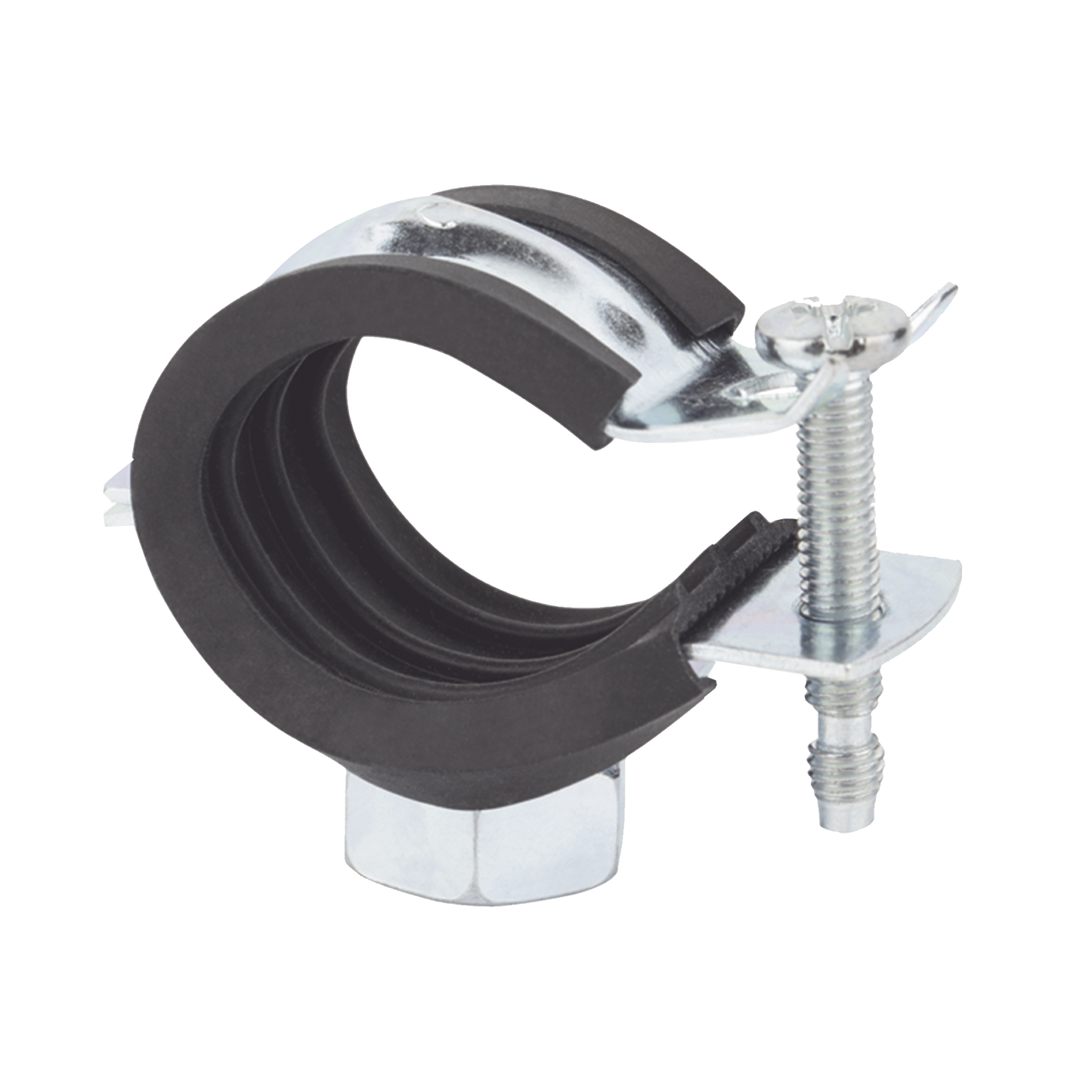

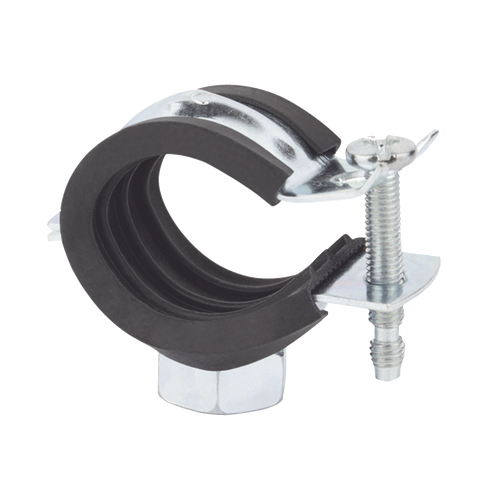

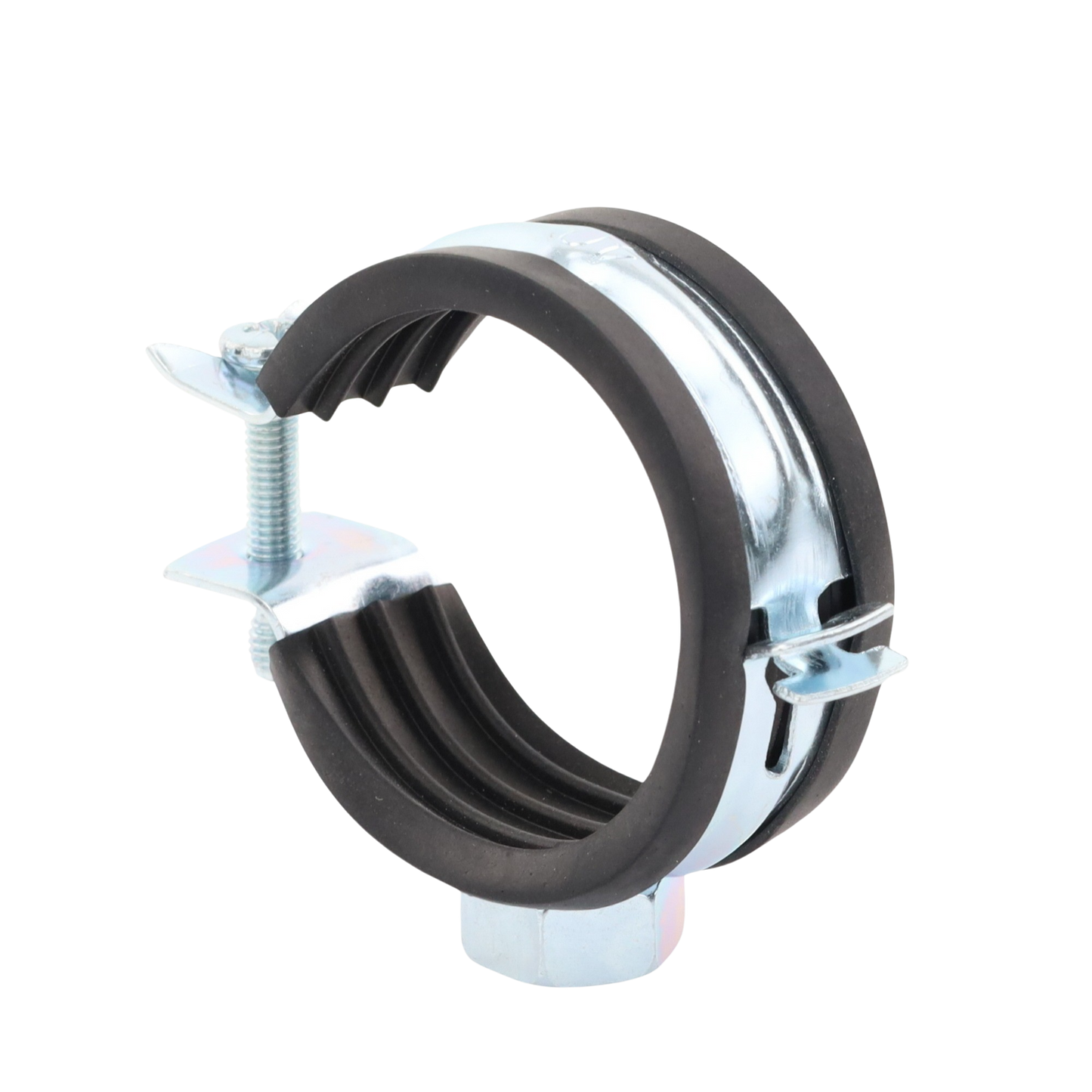

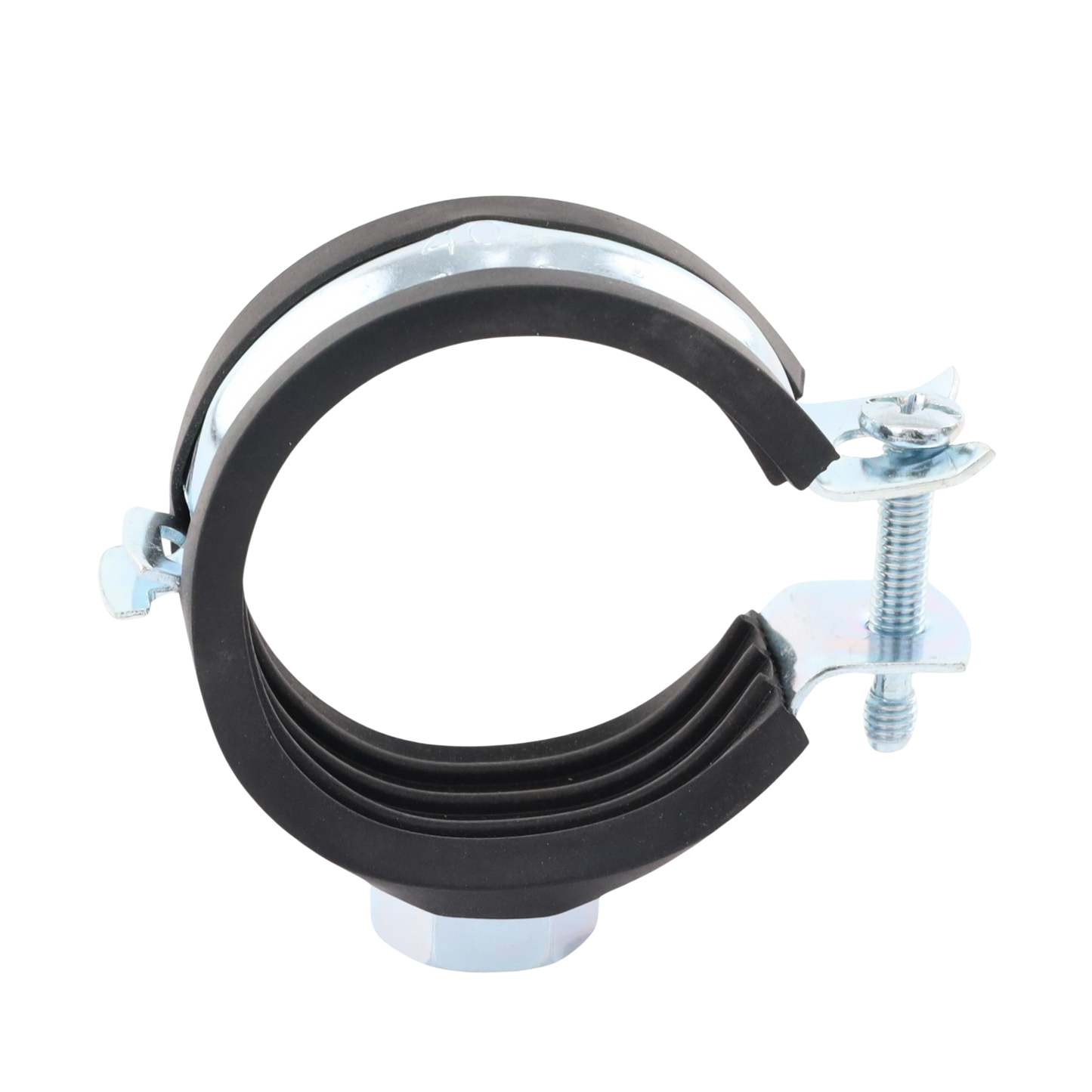

Isophonic Clamp Quick Installation

Characteristics :

  • Surface finish: electrolytic zinc plating, coating >5 microns.
  • Vertical opening to allow quick installation. It has a single screw.
  • EPDM rubber for insulation, reduction of sound and vibrations.
  • 3/8” welded nut.
  • Complies with the Technical Building Code, CTE, HS and HR Basic Documents sections.
  • 1.2 mm thick steel profile.
  • Indicated for water supply installations (ACS and AF), water evacuation (sanitation), thermal installations (air conditioning, heating), compressed air, diesel installations, etc
  • Working temperature: -30ºC ÷ +120ºC.
  • Ease and speed of assembly.

Technical data:

  • Measurement millimeters: 42 mm
  • Internal diameter: 1 1/4" (40-43 mm)
  • Dimensions: 19 x 1.2mm
  • Recommended maximum load: 60 kg

DATA SHEET
