806-870 MHz, Digital NXDN-DMR-Analog, 512 Channels, 15 W, GPS, Bluetooth, Noise Cancellation. Includes accessories

  • d81109bebcee5cdaef6a15ebad2f1490
1 1

38 in stock

Modelo: NX-3920GK

Proveedor: KENWOOD

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The Highest Technology
with Great Versatility

Fully Customizable

The environment where 2-way radios are used can vary from small and large companies to the public sector where the equipment is capable of operating with digital technology, analog and even in mixed mode. The NX-3000 series offers great flexibility with NXDN digital protocols, DMR and also analog systems, all this in a single radio. The equipment includes these digital protocols that can be selected according to your needs, giving you the freedom to migrate to digital or expand your communication environment at your own pace. Also, offers the ability to add or limit special features.

The NXDN™ protocol perfectly supports operating on real 6.25 kHz channels that use FDMA technology, providing greater coverage compared to analog technology and other digital protocols that operate at 12.5 and 25 kHz. It can operate in conventional and trunking modes. Optionally, high-level encryption such as AES and DES can be added. Its new Gen2 development offers greater data processing, great flexibility and also the ability to link up to 1,000 sites.

DMR is a cost-effective solution for simple systems. Thanks to TDMA technology, 2 slots are offered; DMR can get 2 talk paths within the 12.5 kHz bandwidth, effectively doubling the capacity of a single frequency and/or repeater. KENWOOD radios and repeaters are DMR Tier II (conventional) compatible. KENWOOD radios also support Tier III (trunking) using pre-existing infrastructure.

Analog technology offers channels at 25 kHz and 12.5 kHz. They are capable of operating on conventional systems using FleetSync signaling as well as DTMF and MDC1200. If necessary, it can be compatible with LTR trunk systems.

Digital and Analog Mixed Mode

For a gradual migration at your own pace, NX-3000 radios include mixed mode, that is,, The device will automatically respond to analog or digital calls on the same channel as the case may be. Also as a visual aid, An icon will be displayed on the screen indicating the technology being used.

Designed with Great Flexibility

It offers the ability to choose between different digital protocols and allows you to expand channel capacity. NX-3000 radios are designed to operate in different systems, from simple communication to large coverage applications using the Multi-Site digital system with IP networks. For very demanding applications this series of radios can also operate in Type C and Gen2 Trunking mode where call traffic is very high or even when communication needs to extend to different states and countries.

Conventional

NXDN/DMR

Straight

Base capacity

repeater

Coverage extension

Multisite Repeaters

NXDN Up to 48 sites
DMR Up to 16 sites

Type C Trunking

NXDN

Monosite

Greater calling capacity and security

NXDN

Multisite

Up to 1,000 sites

Portable radios


NX-3220 and NX-3320 (VHF and UHF), 2 pin connector.
NX-3200 and NX-3300 (VHF and UHF), 14 pin connector.
NX-3420 (800 and 900 MHz), 2 pin connector.
NX-3400 (800 and 900 MHz), 14 pin connector.

The NX-3000 series portable radios are available in 3 designs. On the left is the model with a full keyboard, In the center the model with a standard keyboard and on the right the basic design without a screen.

1

SMA antenna connector
Thanks to the fact that the GPS antenna is internal, different types of RF antennas can be connected, such as the typical helical or cut-out type.

2

Status indicator bar with 7-color LED light
Each channel can be assigned a different color from the seven available (green, light blue, blue, magenta, red, yellow and white) to have a quick visual aid of radio status.

3

Multi-line LCD with white backlight
The name of the channel, Status and text messages appear on the LCD model.

4

Models with 2-pin connector (left) and 14-pin connector (right)
The NX-3000 series portable radios offer 2 accessory port options to meet user needs.

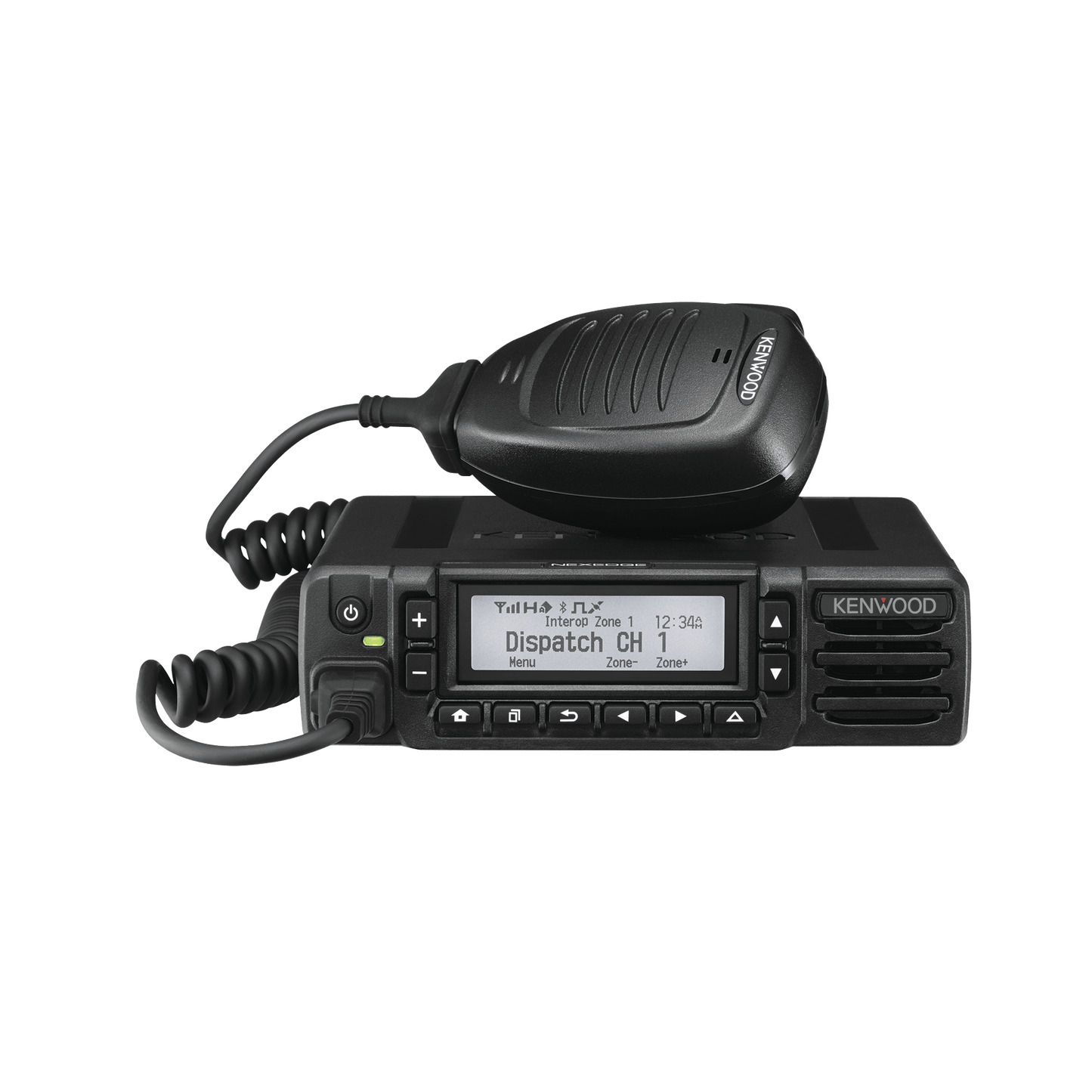

Mobile Radios


NX-3720 (VHF)
NX-3820 (UHF)
NX-3920 (800MHz)
NX-3921 (900MHz)

This range of equipment can operate mobile or as a base station. Optionally, only the head or cover can be installed within reach of the user and the radio can be installed remotely for applications that warrant it.

1

7-color LED indicator
Just like portable radios, The NX-3000 series mobile phones also have a 7-color LED as a visual aid for the user.

2

8-pin microphone connector
Compatible with a wide range of existing audio accessories.

3

LCD display with multi-line dot matrix and white backlight
All the information that the operator may need will appear on the equipment screen with a white light background.

4

Programmable function keys with backlight
For easy operation even in the dark, The radio keys light up to use all available functions.

KENWOOD guarantees the safe operation of electronic equipment in explosive atmospheres and irregular operating conditions.

Intrinsically Safe and Non-Flammable certified versions of NX-3000 portable radios are used in potentially explosive environments with the intent of securing industry operations and maintaining radio communication.

Featured Features

  • Mixed digital/analog mode on the same channel.
  • 4 lines of information on the screen, including icons and 14 characters.
  • 4-way directional keyboard.
  • Call recording.
  • Optional high-level DES/AES voice encryption.
  • Complies with IP54.
  • Roaming function for multisite digital repeaters.
  • Intelligent task management.
  • Optional remote control for sending Stun/ Revive/ Kill/ Check/ remote monitoring.
  • Digital encryption with more than 32,000 codes

*UHF female connector


General characteristics

  • Programming software with KENWOOD authentication.
  • Equipment operation with voice announcement.
  • 4W audio power.
  • Option available for 1,000 channels.
  • Programming option via Bluetooth® PC to the radio.
  • Text messages.
  • Optional radio panel programming function.

NXDN Digital Mode​

  • Operation in conventional Tier I and II mode.
  • Operation in Tier III Type C and Gen2 trunk mode optional.
  • Individual call, group and general.
  • Channels at real 12.5 and 6.25 kHz.
  • Sending aliases via air.
  • Reprogramming via air with OTAP software.

DMR Digital Mode*
  • Meets DMR standards of ETSI TS 102 361-1, -2, -3.
  • Operation in conventional Tier I and II mode.
  • Optional Tier III trunk mode operation
  • 2 slots with TDMA on 12.5 kHz channels.
  • Call interruption (for KENWOOD radios).
  • Double slot in direct mode.
  • ARC4 encryption (optional).
  • Energy efficiency.
  • Automatic slot selection (Pseudotrunking).
  • Sending aliases via air.

*Optional for NX-3920/ 3921.

Analog FM Mode

  • Operation in conventional and LTR trunk mode.
  • FleetSync®/ MDC1200/ DTMF/ 2-tone signaling.
  • Voice inversion using scrambler.

Emergency Functions

  • Panic button.
  • Lone worker.
  • Heart rate monitoring (HRS sensor and KWD-3002BT required).
  • Automatic injury detection (req. AID sensor and KWD-3002BT).
  • Emergency call sending with GPS.

Additional options

  • KWD-3001FP Basic programming on the front panel of the equipment.
  • KWD-3000CH Expansion to 1,000 channels.
  • KWD-3002BT Data sending and reprogramming via Bluetooth.
  • KWD-3501TR Type C trunk mode.
  • KWD-3502EE 40-bit ARC4 encryption for DMR.
  • KWD-3504RC Remote Control for Sending Kill, Stun, Revive, Remote Monitoring and Radio Check.
  • KWD-3301CV DMR Tier I and II mode only for NX-3920/3921.
  • KWD-3302TR Tier III trunk DMR mode.
  • KWD-3505DE 56-bit DES type encryption.
  • KWD-3503AE 256-bit AES type encryption.

Accessories included

  • Power cord.
  • KMC-35/65 microphone.
  • Bracket and installation accessories.

5 Years Warranty on the radio.

1 Year Warranty on accessories.

KPG-D3K programming software

KPG-4 6XM Programming Cable
