5 Dual band UniFI Access Point, 180° coverage, 2x2 wall MIMO for hotel rooms.

Skip to product information
1 of 3

Out of stock

Modelo: UAP-AC-IW-5

Proveedor: UBIQUITI NETWORKS

Código SAT: 43222608

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
View full details

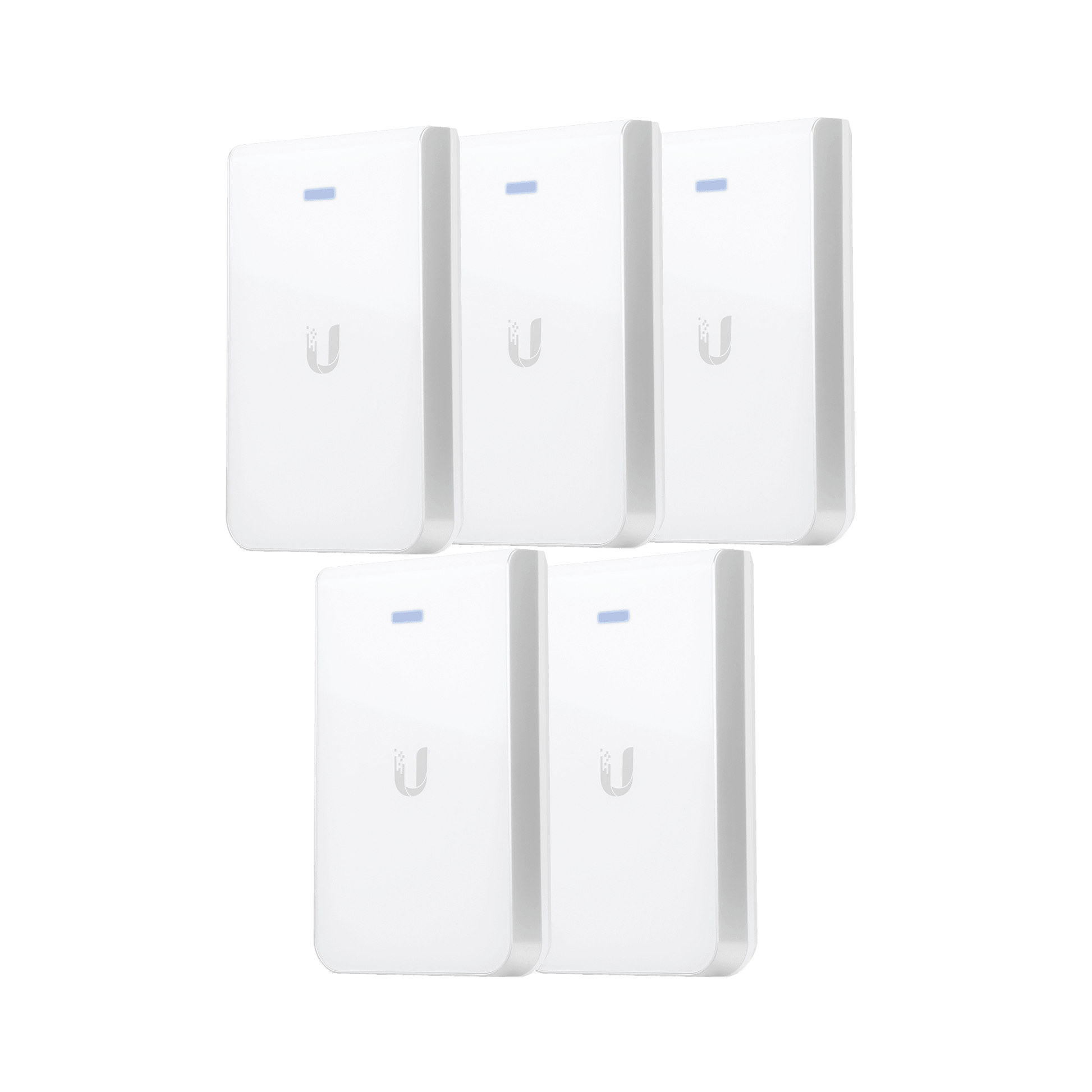

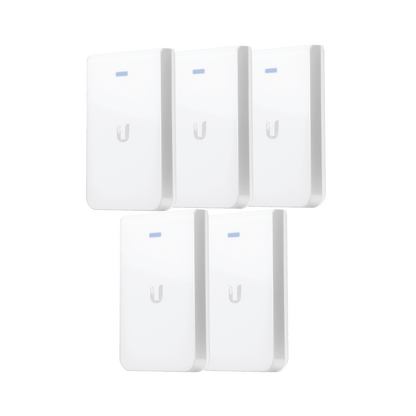

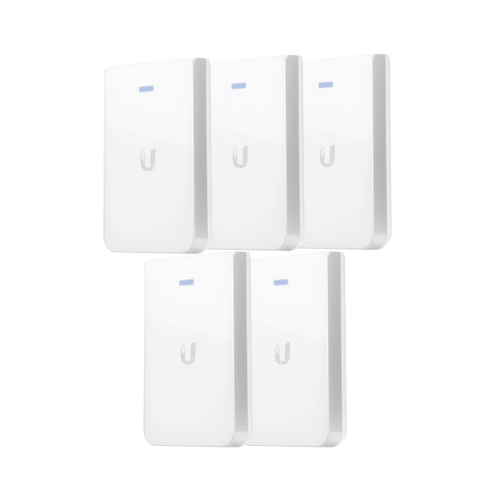

Pack of 5 UniFI dual-band MIMO 2x2 Access Point for wall installation. Ideal for hotel rooms.

Maximum number of connected devices per computer: 100 Wi-Fi users.

Main features:
Wi-Fi standard 802.11a/b/g/n/ac
Dual band 5GHz and 2.4 GHz
2X2 MIMO
Up to 867 Mbps at 5GHz (802.11ac)
Up to 300 Mbps on 2.4GHz and 5 GHz (802.11n)

General characteristics:
1 Gigabit 10/100/100 Mbps input port for power.
1 Gigabit Port 10/100/1000 Data output.
1 Gigabit Port 10/100/1000 Output for passive 48 V PoE.
Integrated antennas: In 2.4 GHz 1 dBi and in 5 GHz 2 dBi.
Input power: Passive PoE 48V 0.5A, supports 802.3at power.
Output power: 100 mW per band.
Maximum power consumption: 7 W if Wi-Fi only and 19 W if using PoE Out.
Supports up to 4 SSIDs per radio.
Dimensions 139.7 x 86.7 x 25.75 mm.

It is recommended to purchase a UniFi controller to manage devices remotely, create hotspot, send critical alerts, etc: Model UCCK .

They do not include a PoE power supply.

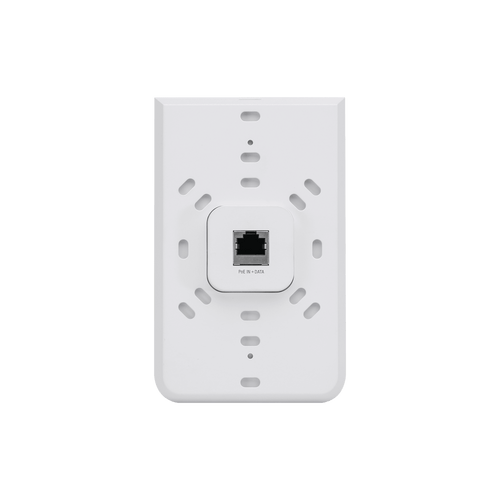

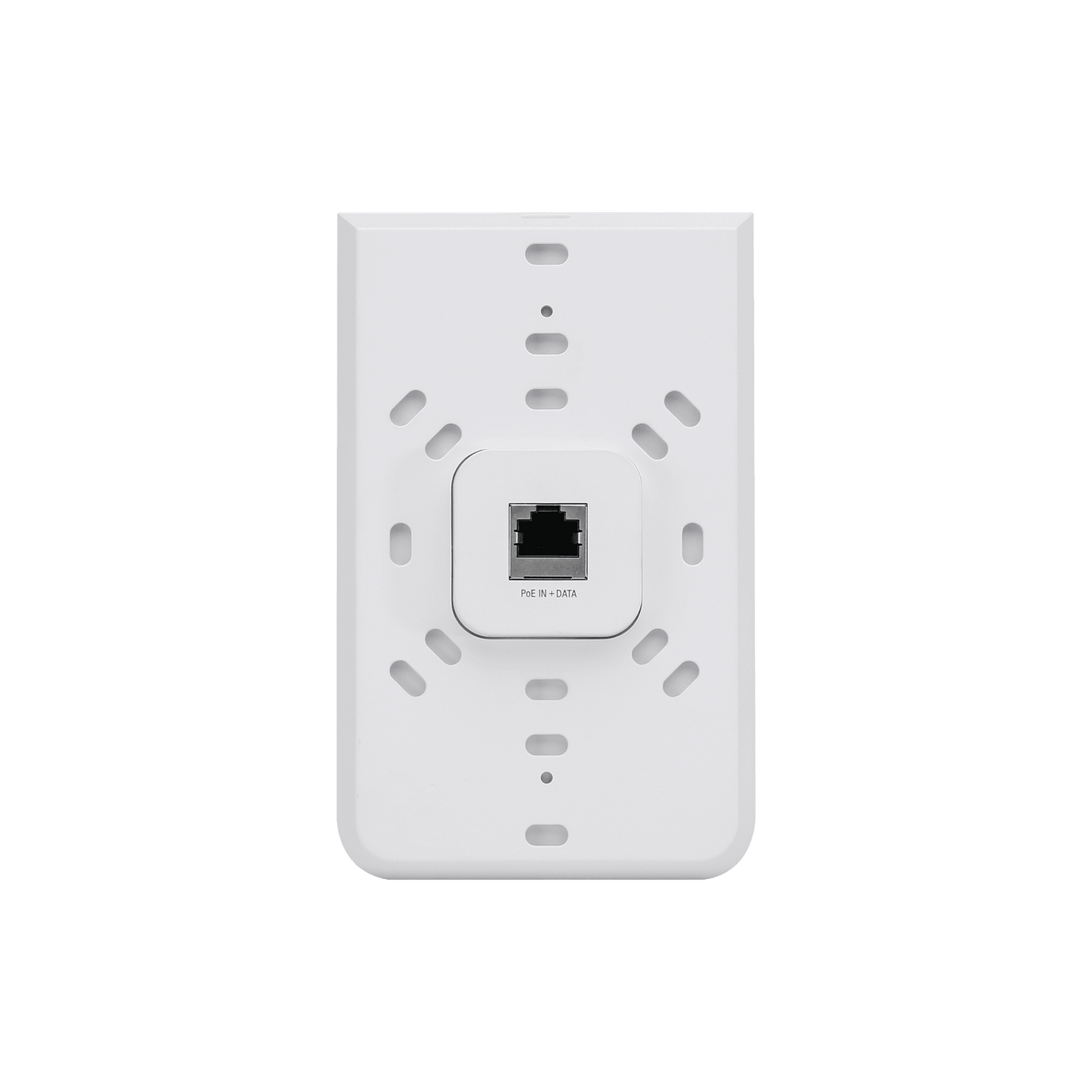

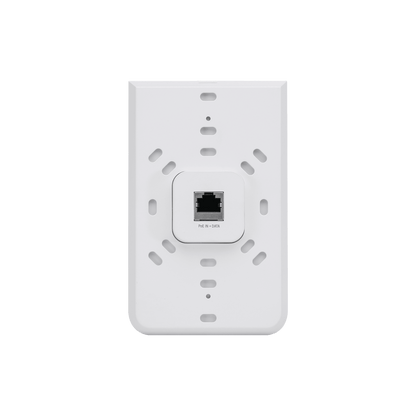

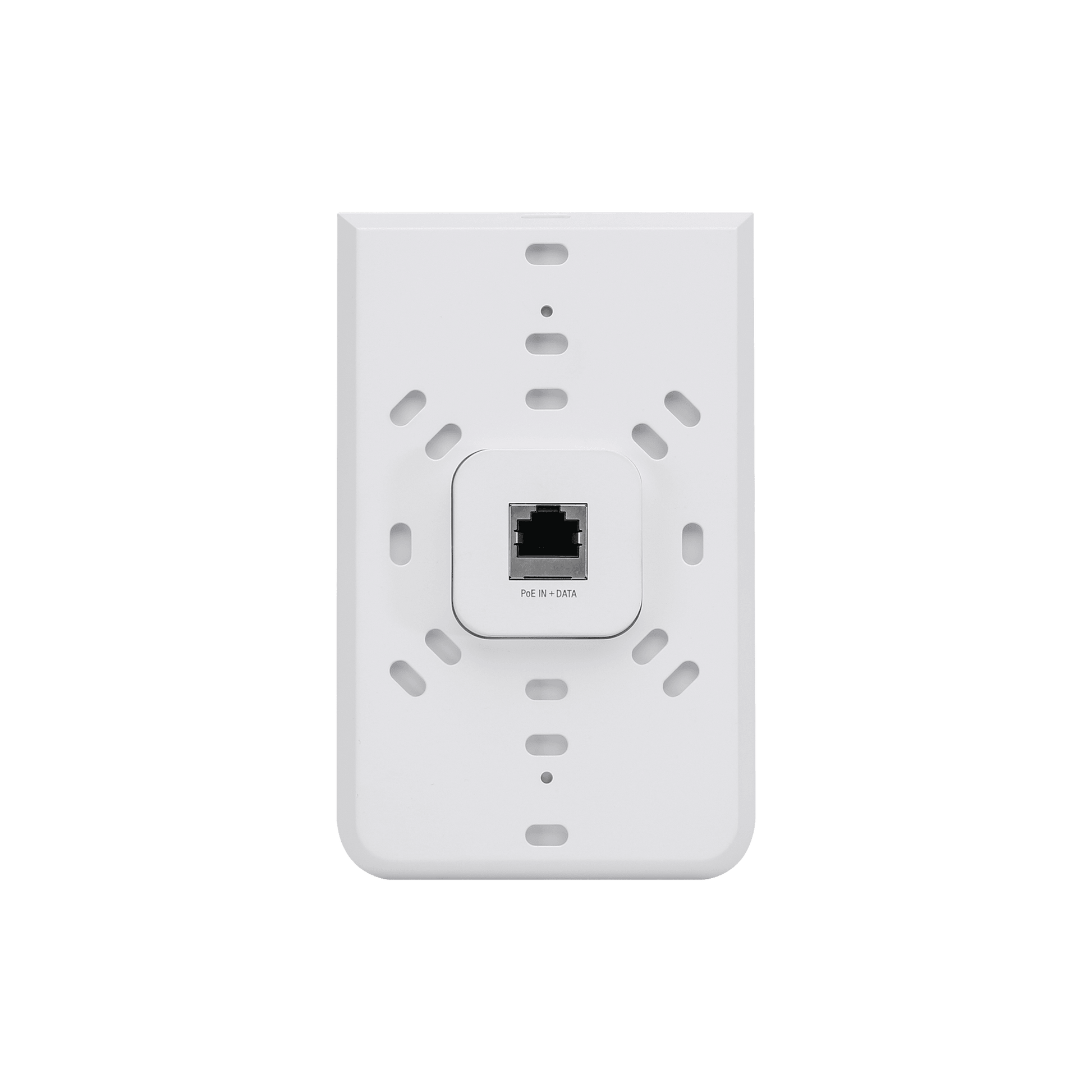

Design for faceplate wall:

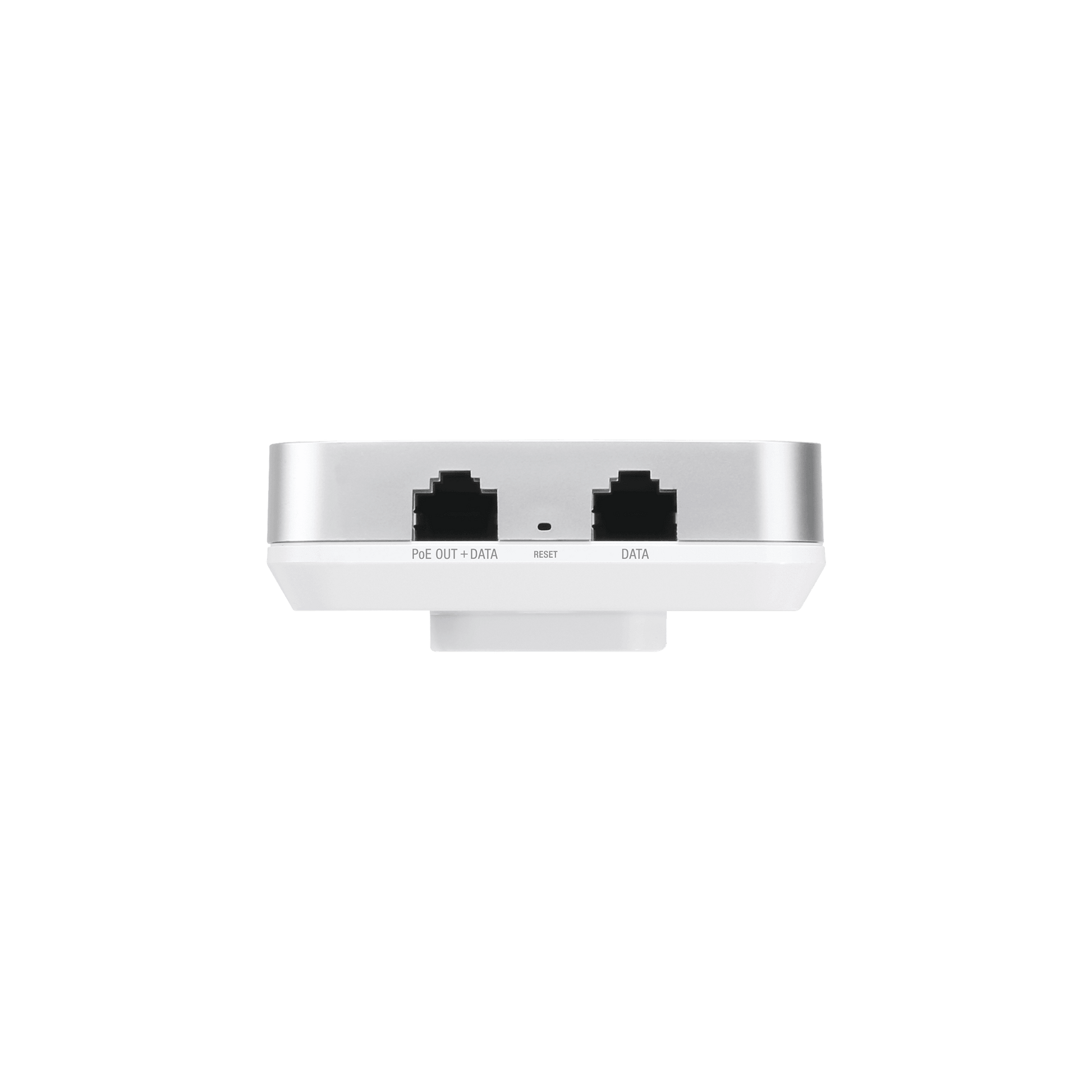

Additional ports on the bottom to avoid connector damage:


Network design example:


Comparison with other models:


*1 year warranty.
