12 or 24 Vdc @ 6 A / card type source / 1 output / battery capacity / battery not included.

  • f8aa8eb50e17a8ecde0b5c6d0362fe74
  • df721ab57519d519201f70e5c5dcb8c6
  • 21aee64cc46806ec810897243da5fd30
  • 3a0e8ce30b600d79fcc739108a543c48
1 4

25 in stock

Modelo: OLS-180

Proveedor: ALTRONIX

Código SAT: 39121004

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

OLS180

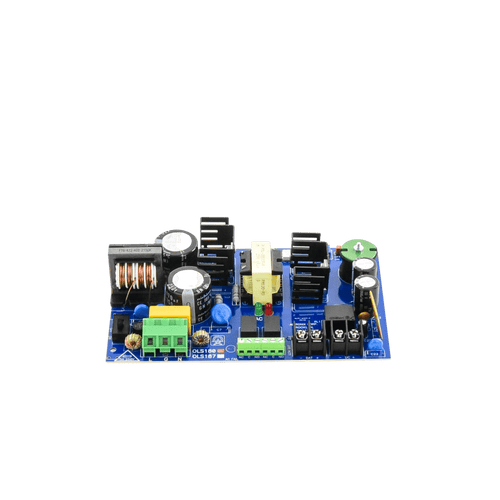

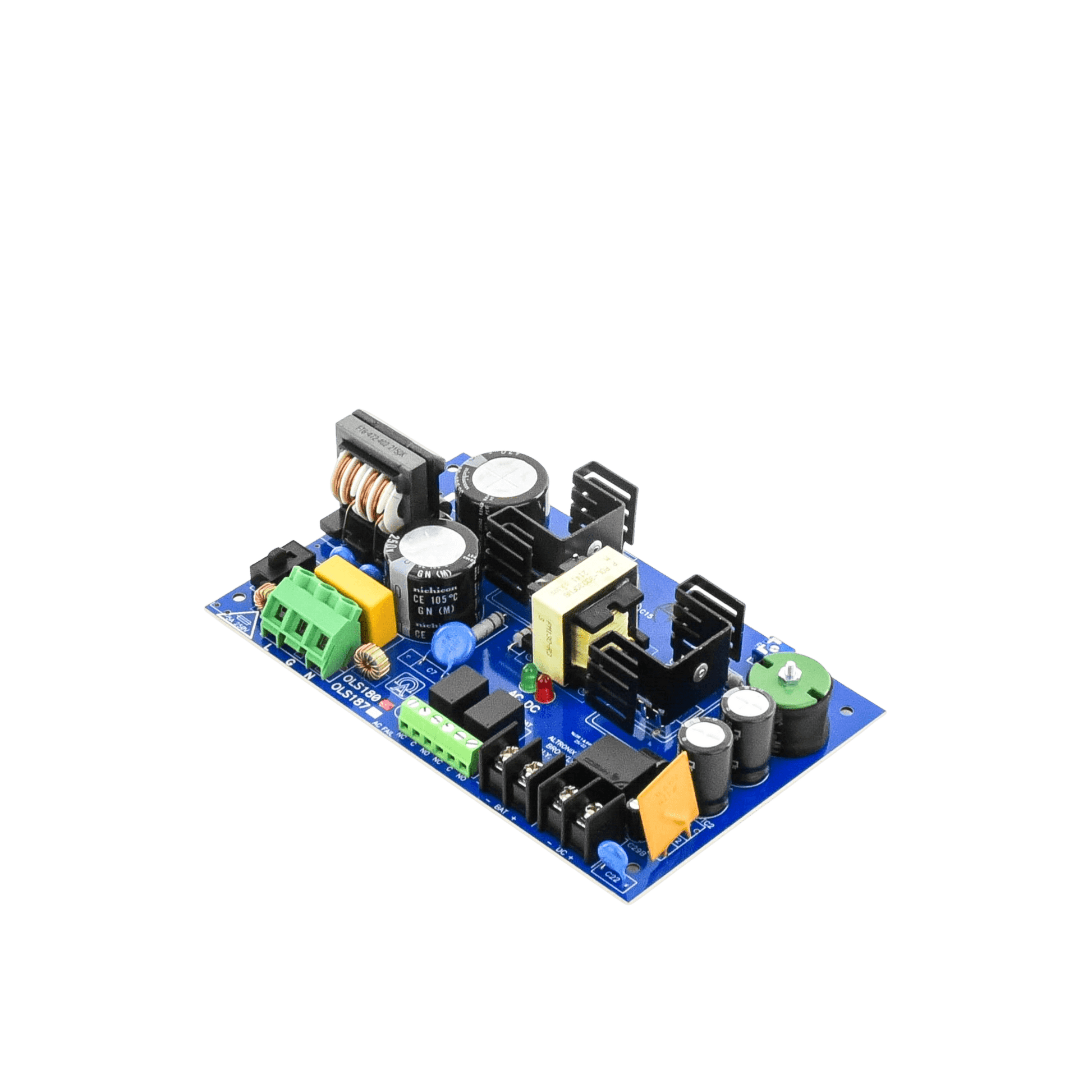

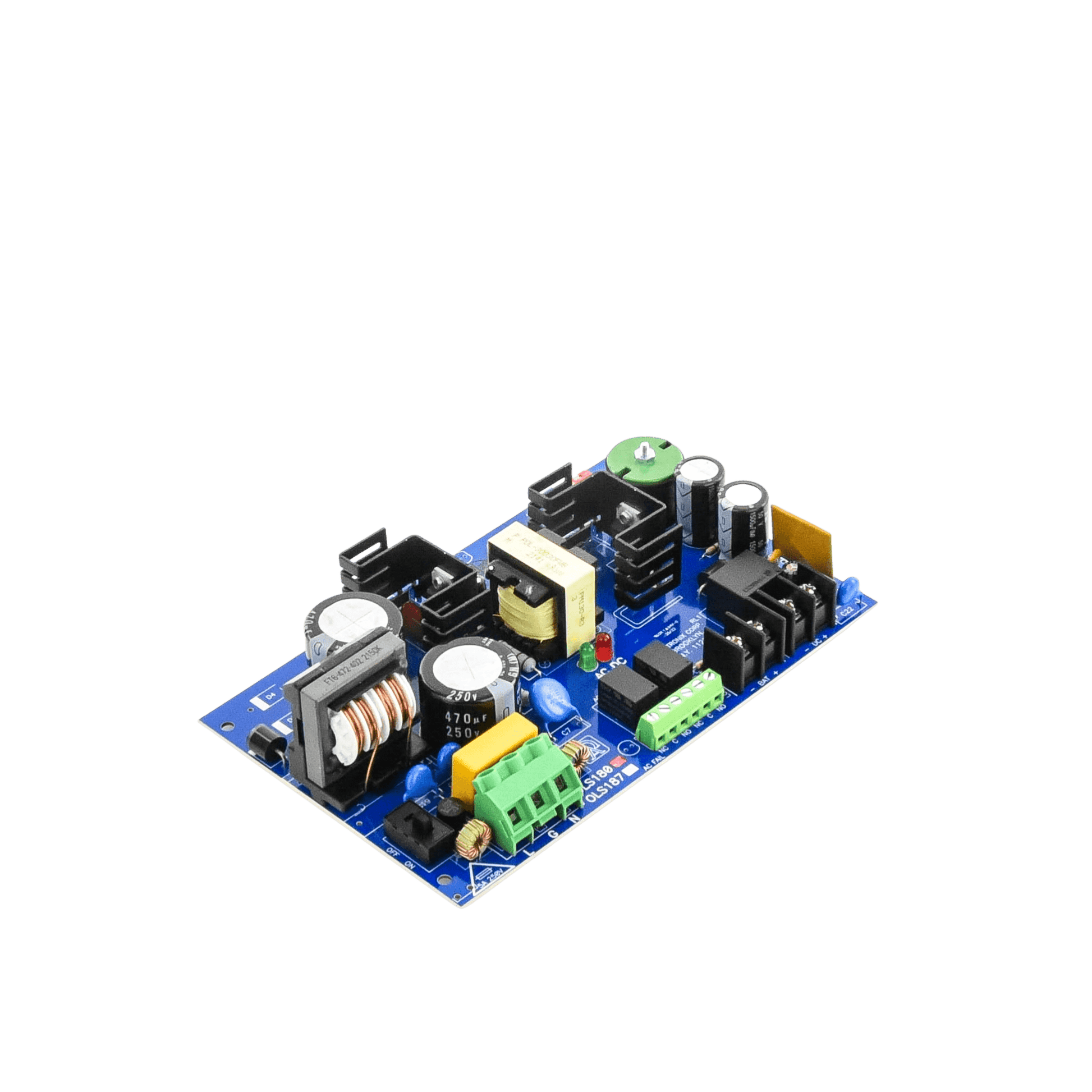

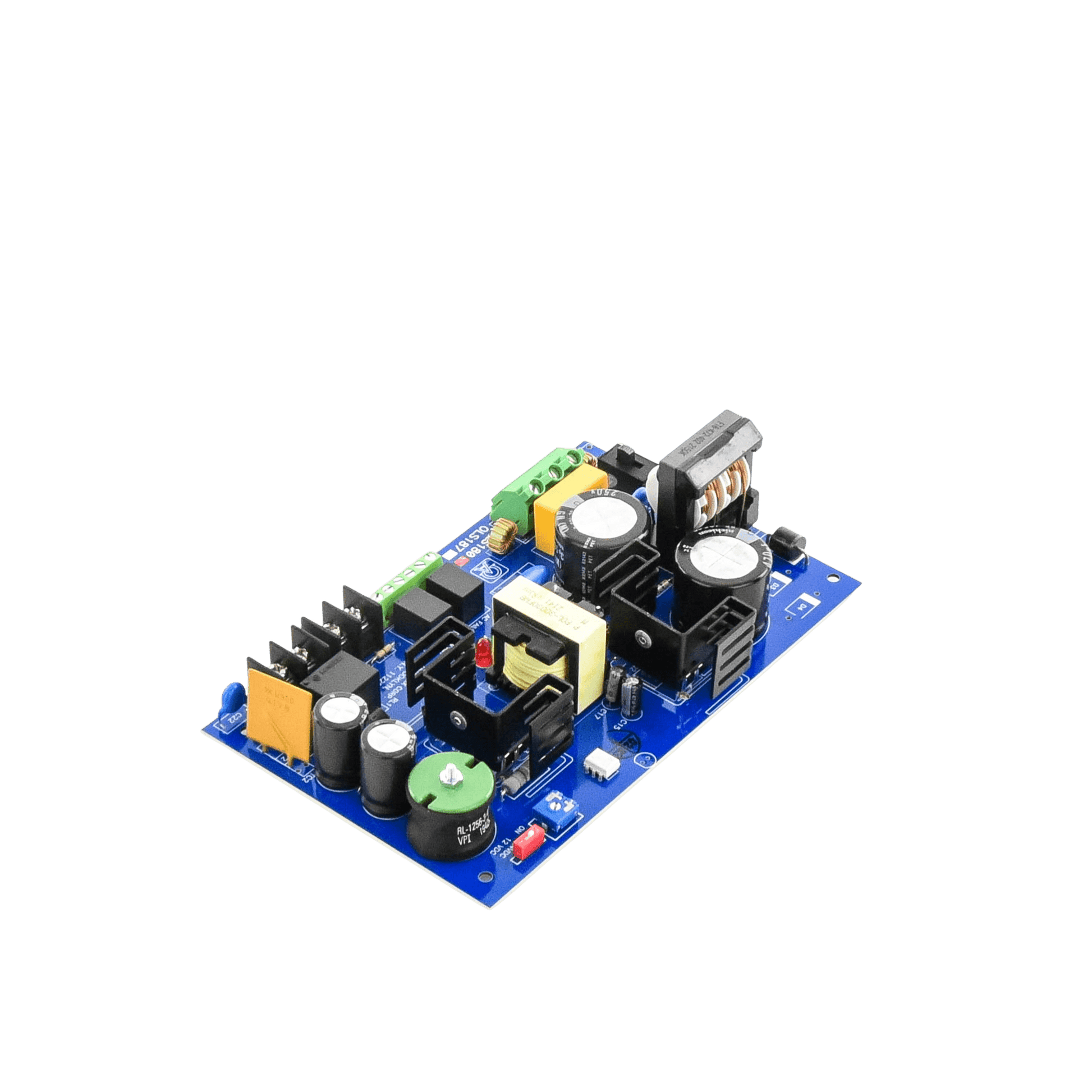

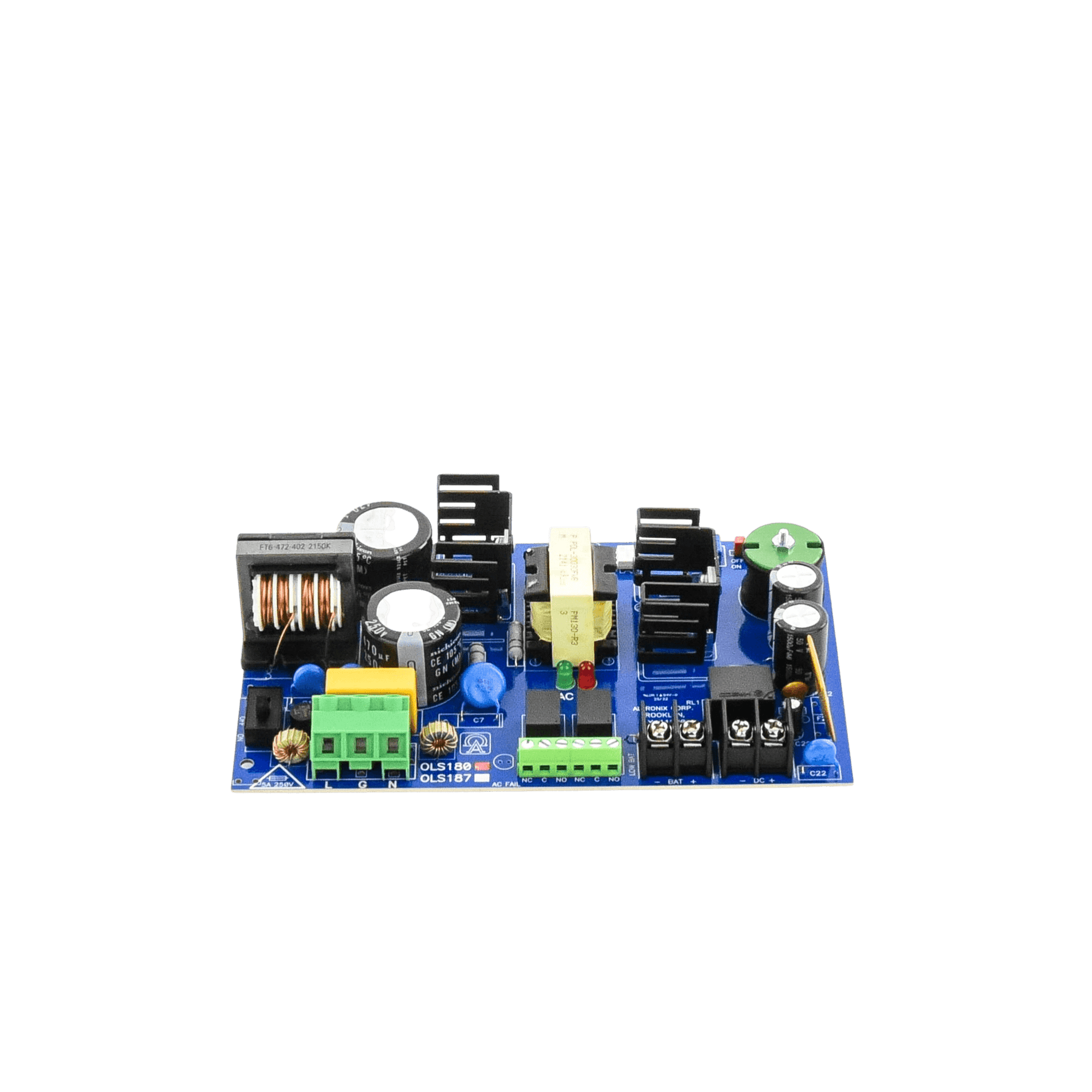

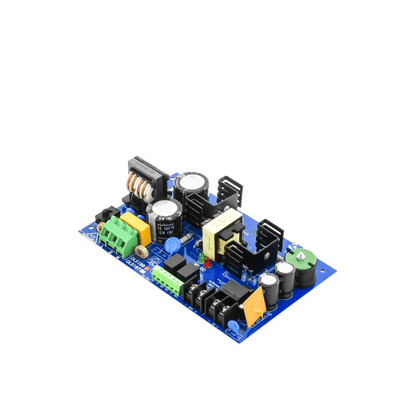

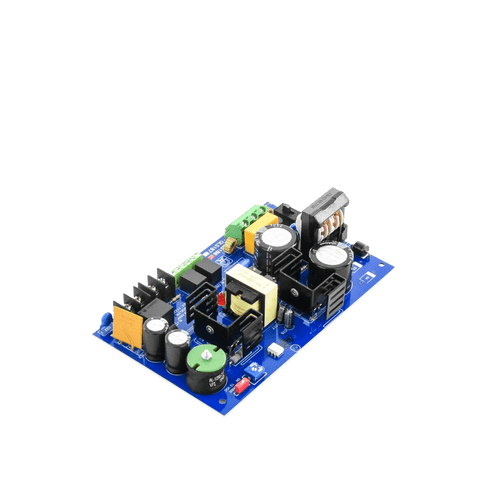

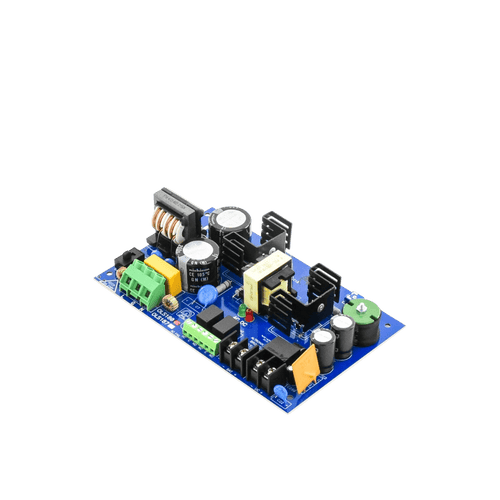

CARD TYPE POWER SUPPLY WITH BACKUP CAPACITY AND SELECTABLE OUTPUT IN 12 AND 24 Vdc, 6A

The OLS180 power supply/charger converts a 115V AC input to 50/60 Hz into a 12 VDC or 24 VDC output at a continuous supply current of 6 A (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.

...

Main Features:

  • Input: 115 Vac, 50 / 60 Hz, 1.9A
  • Selectable 12VDC or 24VDC output
  • Supply current 6 A
  • Filtered and electronically regulated outputs.
  • Requires 16 Vac to 24 Vac input transformer
  • Overvoltage and short circuit protection.

...

Physical and Electrical Characteristics:

  • Dimensions: 76:2 mm wide x 88:9 mm long x 50:8 mm high.
  • Operating Temperature: 0°C to 49°C (32°F to 120°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Product weight: 0:35 lbs. (0:158 kg)
  • Shipping Weight: 0.45 Lbs. (0:204 kg)...

...

Featured Features:

  • Zero voltage drop when switching to backup battery.
  • AC input and DC output LED indicators.
  • Extremely compact design.
  • Includes battery cables.
  • Protection against short circuits and thermal overloads
