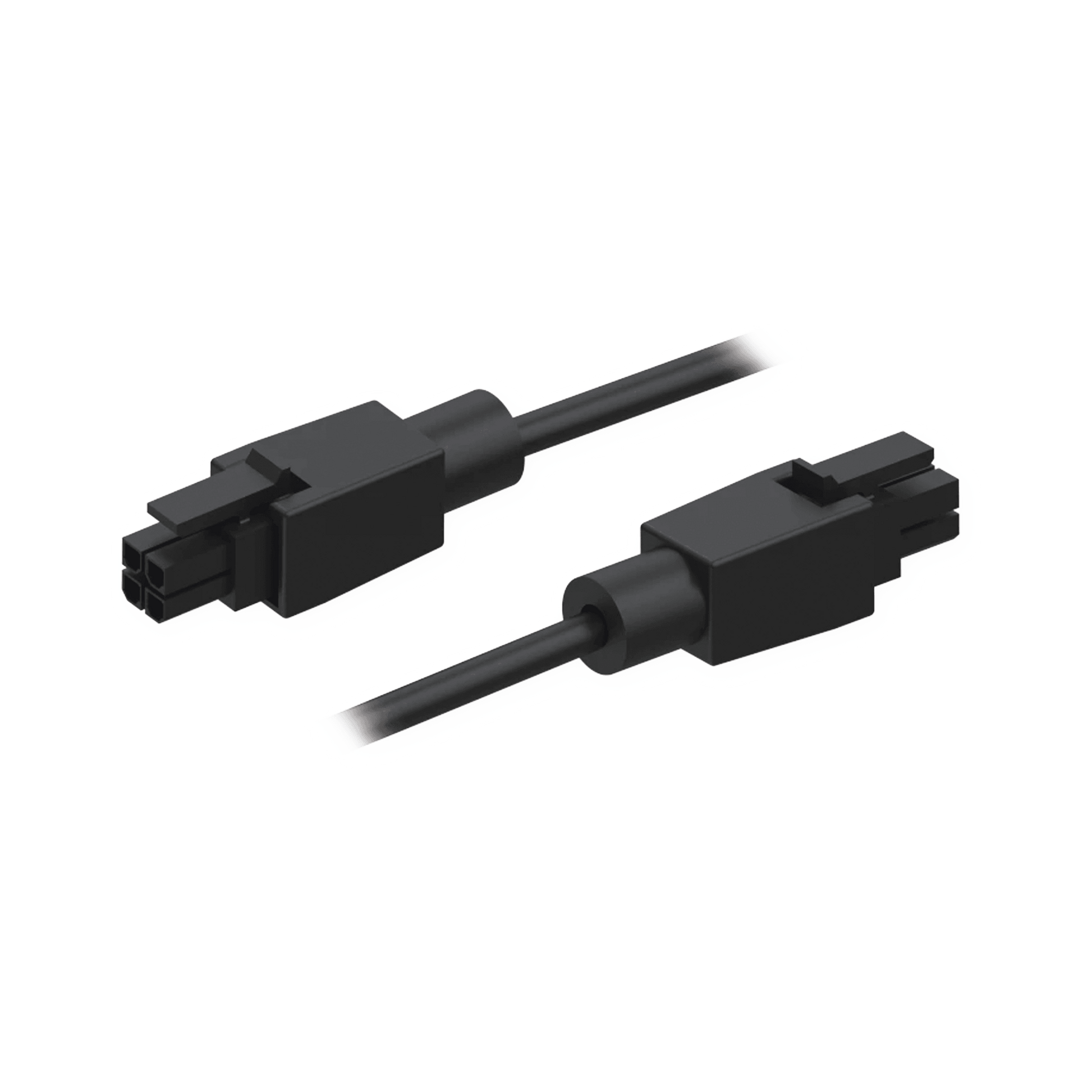

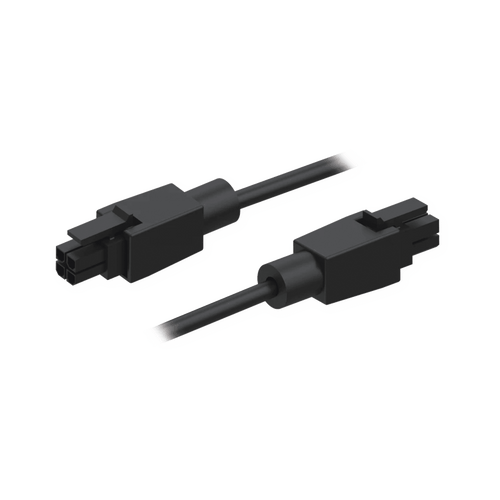

Cable de alimentación de 4-pines a 4-pines para uso con BAT120

  • 08d0f1bde80e66477f9e00c799fed6c1
1 1
  • Conector de entrada 4 pines, paso 3 mm
  • Voltaje de entrada máximo 30 VDC
  • Sección transversal de conductor 4 x 0.20 mm²
  • Diámetro externo del cable 4.5 mm
  • Clasificación de inflamabilidad UL 94 V-2

50 disponibles

Modelo: PR2PP10B

Proveedor: TELTONIKA

Código SAT: 26121629

Impuesto incluido.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
Ver todos los detalles
Technical Data
GENERAL
Input connector 4-pin, 3 mm pitch
Input voltage max 30 VDC
Output connector 4-pin, 3 mm pitch
Conductor cross section Stranded, cross section 4 x 0.20 mm2 (24 AWG)
Cable outer diameter 4.5 mm
Maximum current 2 A
Weight 47 g
Total Length 1000 mm
Protection material PVC 60P BLACK
Flammability rating UL 94 V-2
