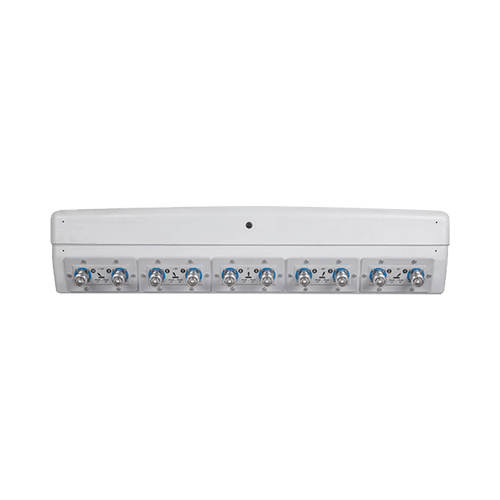

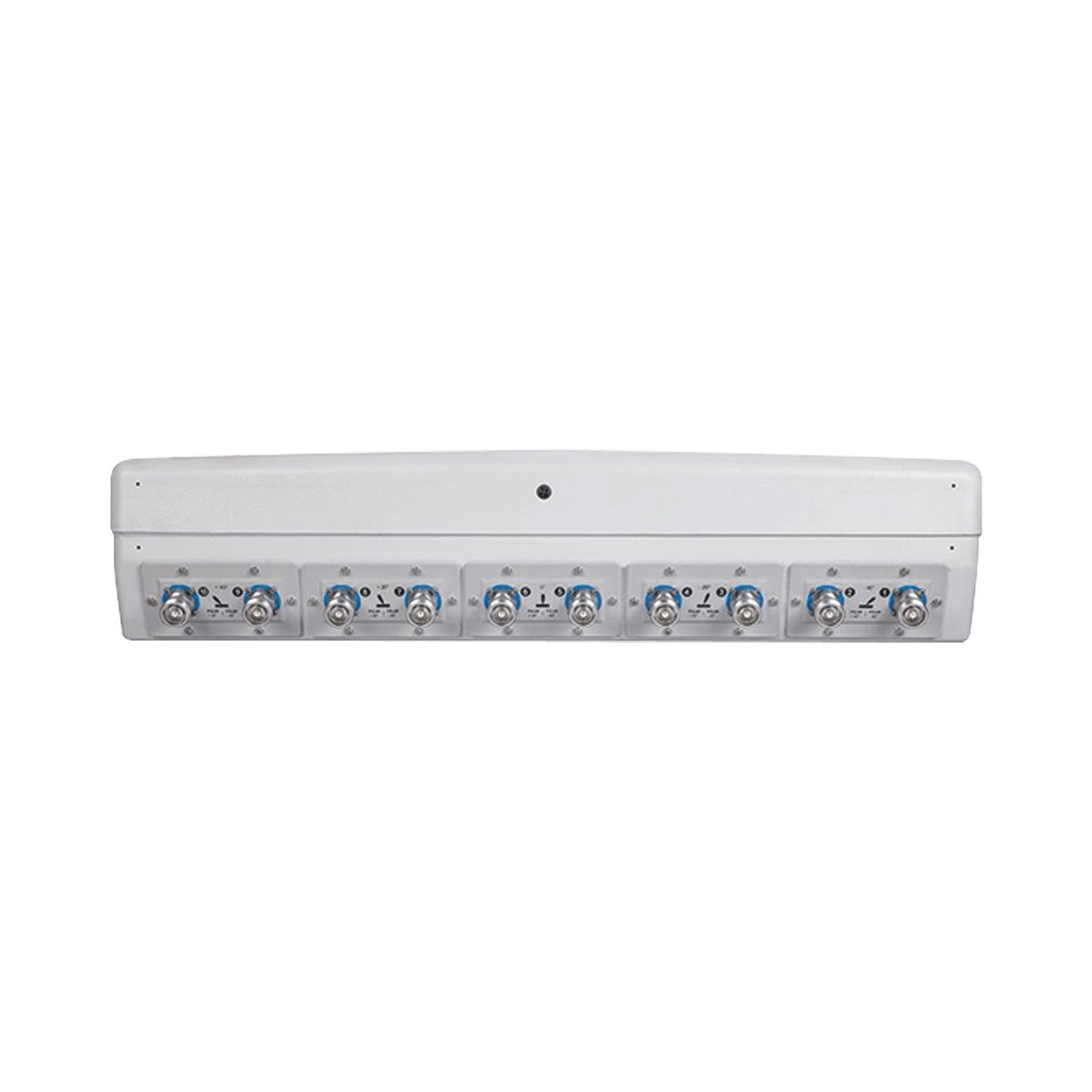

Antena Multi Haz de 10 Puertos 10x 1710–2180 MHz, 5x 10-14° HPBW

  • 3454596a05c7ed16f812e2e945dbfd6e
1 1

Agotado

Modelo: 5NPX1006F

Proveedor: ANDREW

Código SAT: 43221709

Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
Ver todos los detalles

Electrical Specifications

  • Frequency Band, MHz: 1710–1920 / 1920–2180
  • Gain, dBi: 21.7 / 22.3
  • Beamwidth, Horizontal, degrees: 13 / 12
  • Beamwidth, Vertical, degrees: 11.9 / 10.9
  • Beam Tilt, degrees: 6 / 6
  • USLS (First Lobe), dB: 14 / 16
  • Front-to-Back Ratio at 180°, dB: 32 / 34
  • CPR at Boresight, dB: 10 / 10
  • Isolation, Same Beam, dB: 25 / 25
  • VSWR | Return Loss, dB: 1.43 | 15.0 / 1.43 | 15.0
  • PIM, 3rd Order, 2 x 20 W, dBc: -150 / -150
  • Input Power per Port, maximum, watts: 300 / 300
  • Polarization: ±45° / ±45°
  • Impedance: 50 ohm / 50 ohm
