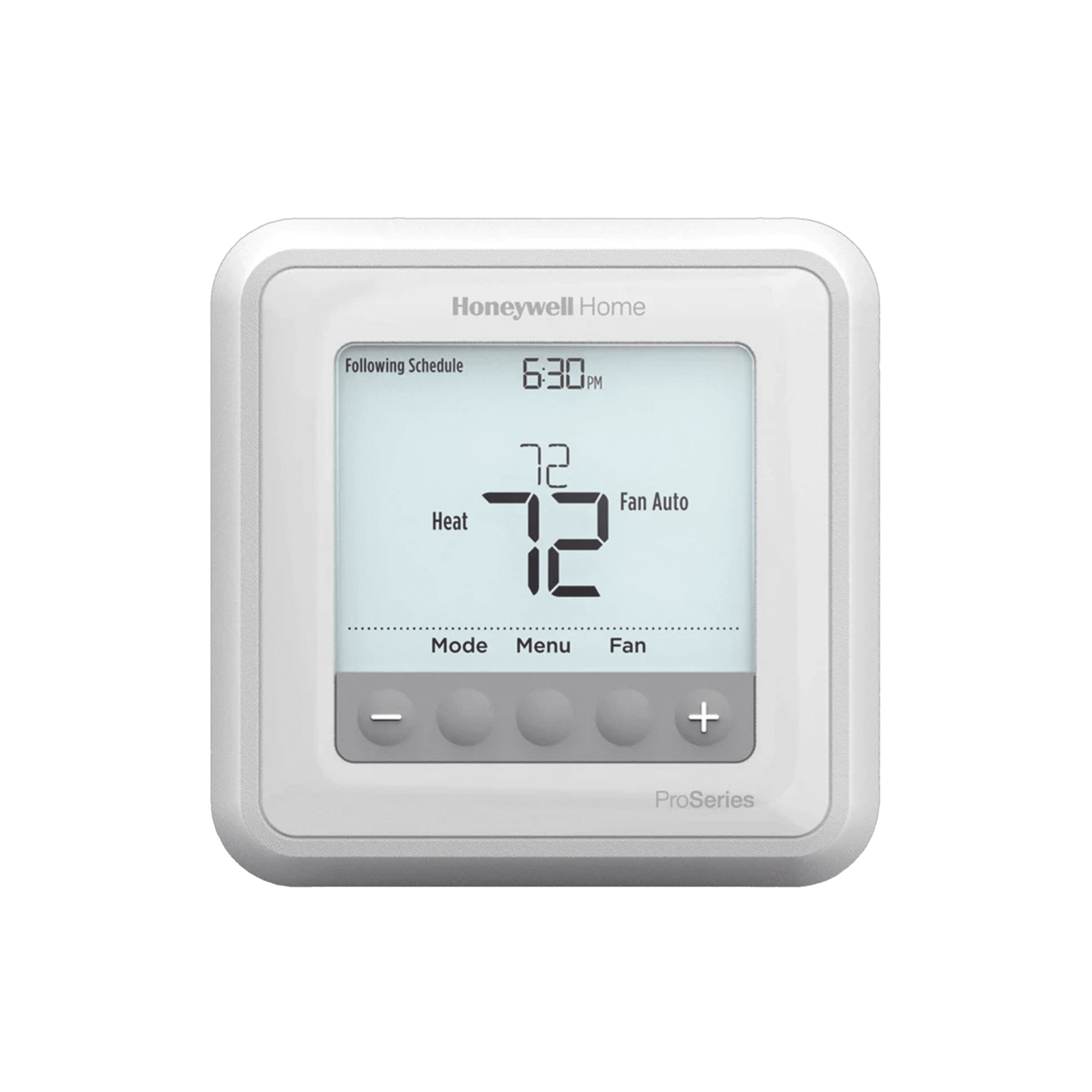

T6 PRO Smart Programmable Thermostat with 3 Heat/2 Cold stages

  • 3869f1ed80ef4b94f9233962b3e8eb74
1 1

Low stock: 8 left

Modelo: TH6320U2008/U

Proveedor: HONEYWELL HOME RESIDEO

Código SAT: 41112209

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

General description

The T Series programmable thermostat makes everything faster, from product selection and installation to customer service and support. With a standard size and a simple interface, The T Series will enhance the entire thermostat experience for you and your customers alike.

Characteristics

  • TH6320U Up to 3H/2C heat pump and 2H/2C conventional
  • TH6220U Up to 2H/1C heat pump and 2H/2C conventional
  • TH6210U Up to 2H/1C heat pump and 1H/1C conventional
  • 7 days, 5-2, 5-1-1 or non-programmable
  • Uses the UWP mounting system that is standard on all T-series thermostats
  • Easy upsell to a Wi-Fi connected Lyric T6 Pro when your client is Wi-Fi ready (C-wire required)
  • Optional dual fuel (TH6320U and TH6220U only)
  • Optional indoor/outdoor wired sensors (TH6320U and TH6220U only)
  • Simple button functionality
  • Filter change reminders


Product specifications

Application
24 Vac systems; Gas, Oil, Electricity Hot Air; Hot water coil; Gas, Oil, Electric Hydronic; o Steam/Gravity Systems
Dimensions
103.6mm long x 103.6mm wide x 28mm deep
Includes
Thermostat, UWP mounting system installation adapter (junction box), small decorative cover plate, screws and anchors, installation guide, user guide and 2 AA batteries
Item type
Product
Mounting
UWP mounting system
Electrical ratings
20 to 30 Vac
Stages
Up to 3 heat/2 cool heat pumps; Conventional systems up to 2 heat/2 cold
Electric connections
Honeywell UWP Mounting System
Operating Humidity Range (%RH)
5 to 90% RH, no condensation
Supply voltage
20 to 30 Vac
Change positions (system)
Heat - Off - Cool - Auto
Change positions (fan)
PROGRAM Auto - On - Circulation
Operating temperature range
2.7C to 39C
Shipping and Storage Temperature Range
- 28.9 C to 48.9 C
LED
LED backlight
Power method
Battery or wiring
Ambient temperature range
0C to 50C
Show
Big screen, soft key controls
Precision
0.5C
Differential temperature
±0.5C
programmability
7 days, 5-1-1 day, 5-2 days or Not programmable
screen size
5:44 square inches
Temperature Control Mode Selections
Room temperature
Change
Automatic or Manual
Setting temperature range
Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
heat stream
0.02-1.0A
fan current
0.02-0.5A
