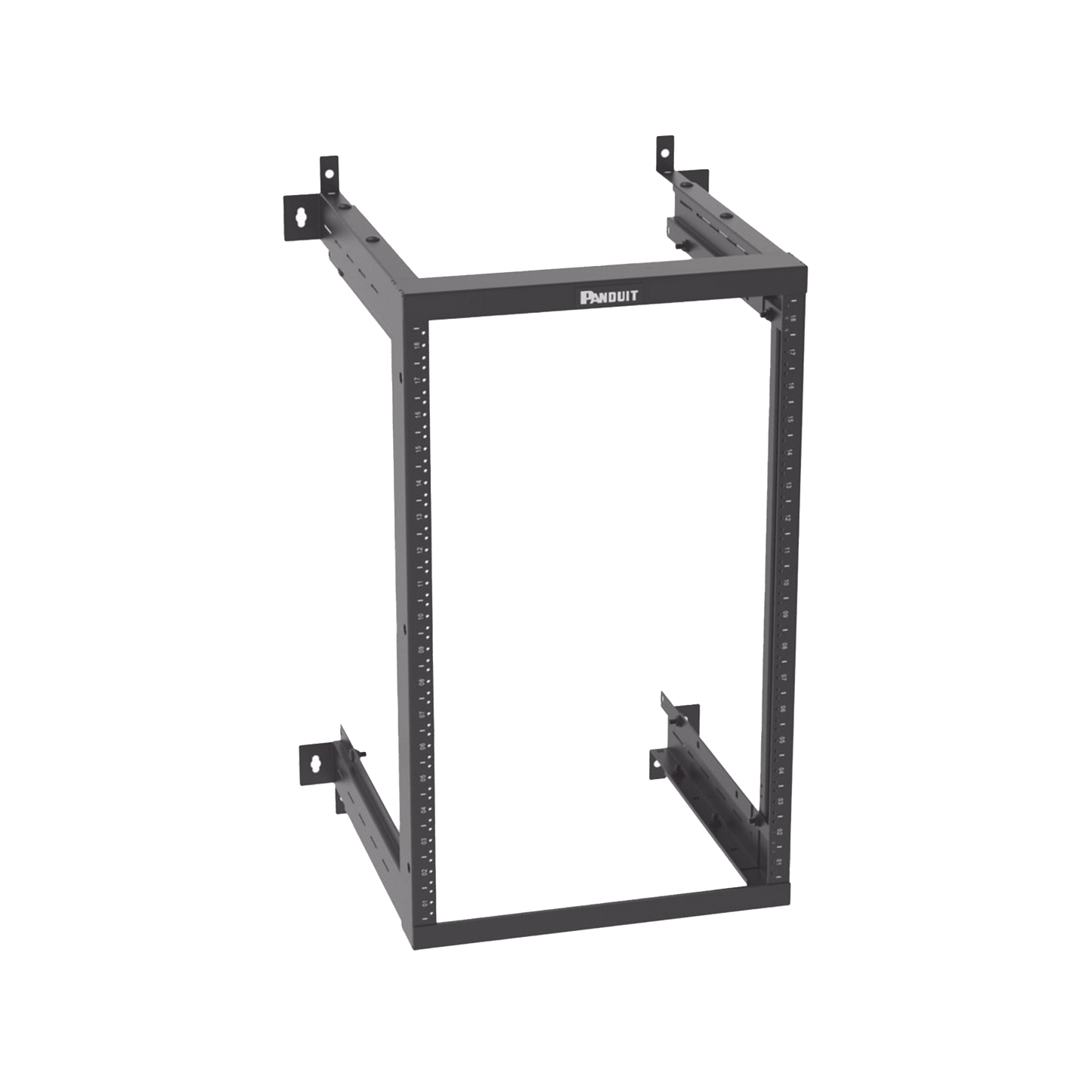

PanZone Rack®Wall Mount, 19in, Adjustable Depth, Numbered and Threaded Rails #12-24, 18 UR, Black Color

  • 41399a0843890adc0d47fab065218bdf
  • 6ce2447373ce7beca27075ac37845bc5
  • c866cbb2bff8534af222bea4c7005d51
  • 077170a1f869dbc7fe61cb2ab4b5b3d2
1 4
  • Adjustable Depths of 18 in, 21.5 in and 25 in
  • Load Capacity: 200 lb (90 kg)

Out of stock

Modelo: AWMR18

Proveedor: PANDUIT

Código SAT: 43223308

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

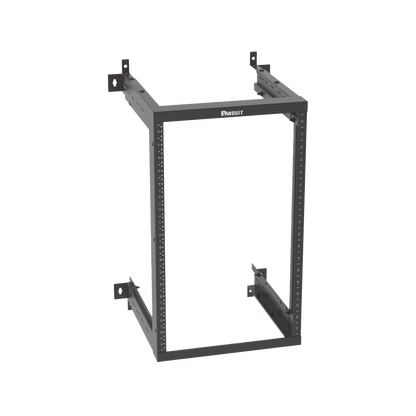

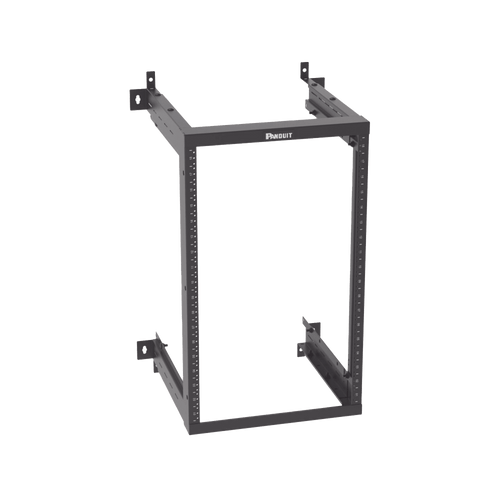

The adjustable depth wall mount rack meets EIA/ECA-310-E standards, is available in 9, 12 or 18 RU steel construction and is capable of accepting 19" wide EIA equipment. Features adjustable depths of 18 in, 21.5 in or 25 in. The equipment mounting rails are #12-24 threaded style. The equipment mounting rails include printed rack unit numbering from bottom to top.

Technical specifications:

  • Extended Height (in.): 33.65
  • Extended height (mm): 854.7
  • Overall Width (in.): 20.31
  • Overall width (mm): 515.9
  • Extended Depth (in.): 25
  • Extended depth (mm): 635
  • Number of Rack Units: 18
  • color black
  • Powder coated finish/coating

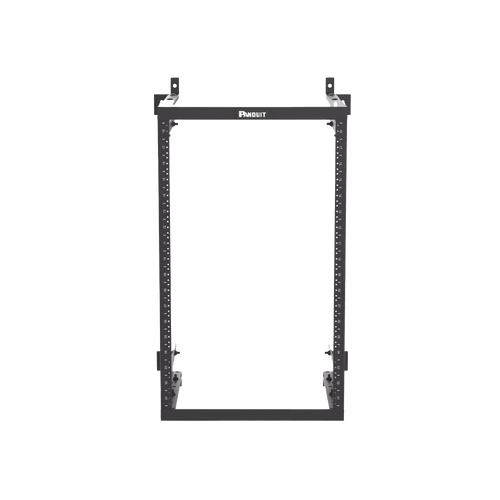

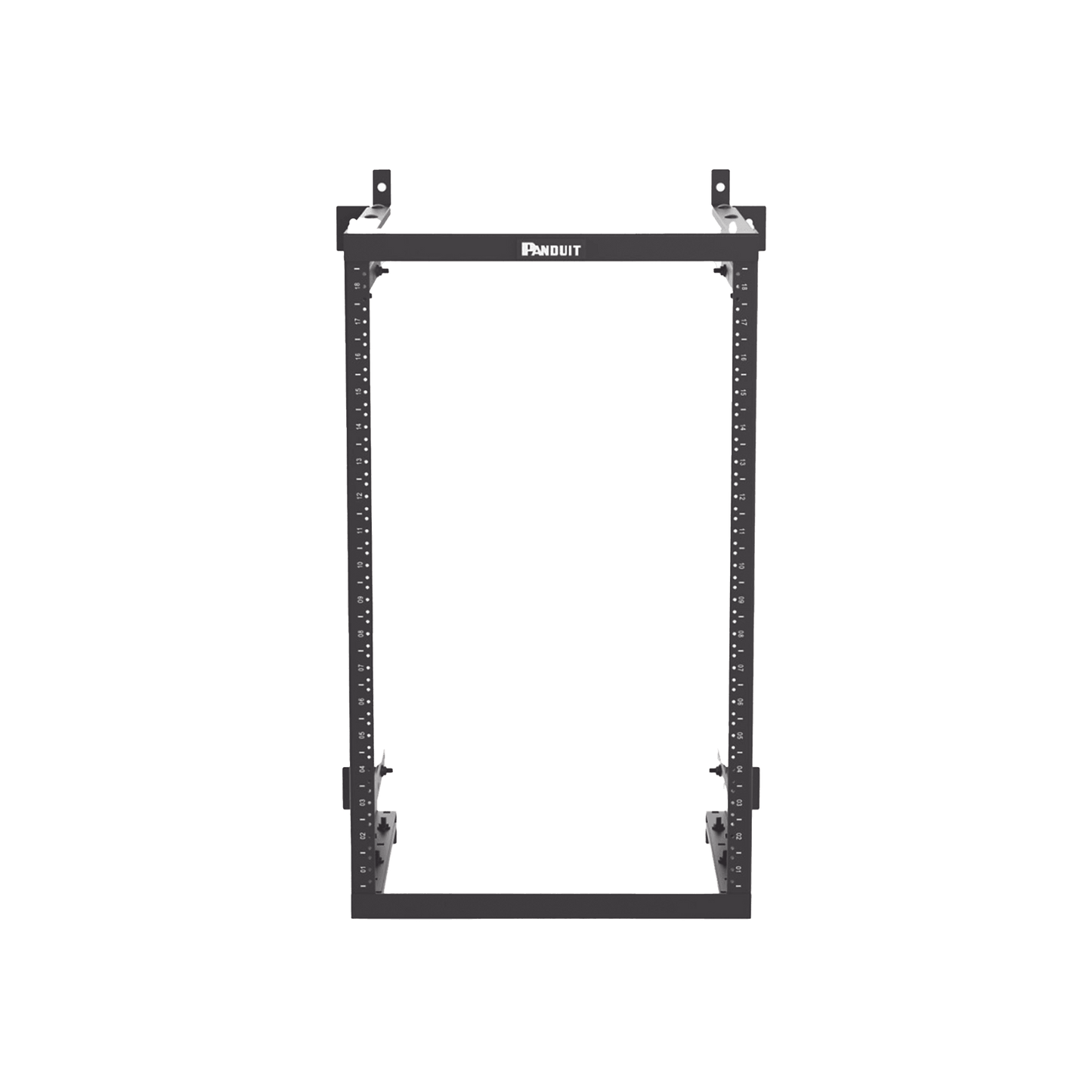

1. Vertical Rails: #12-24 threaded holes with rack space numbering

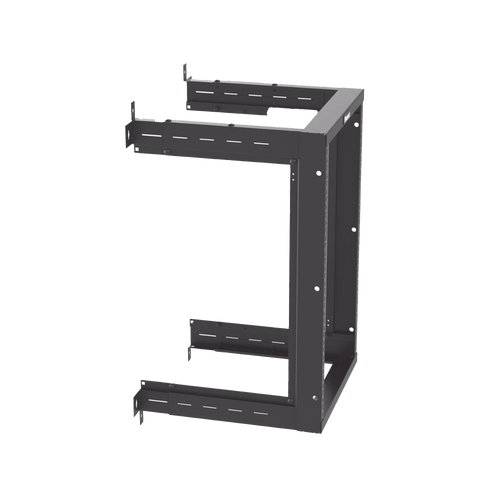

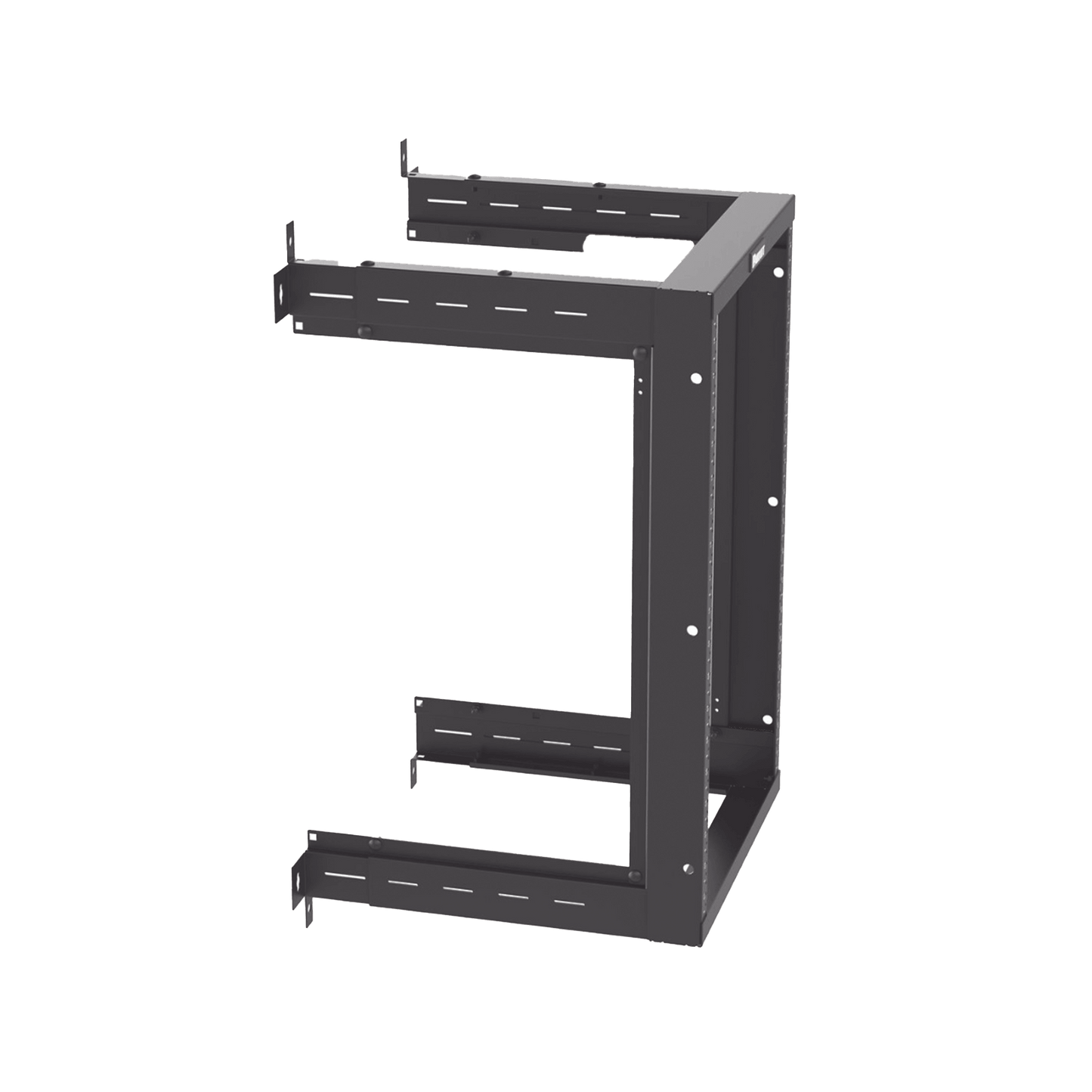

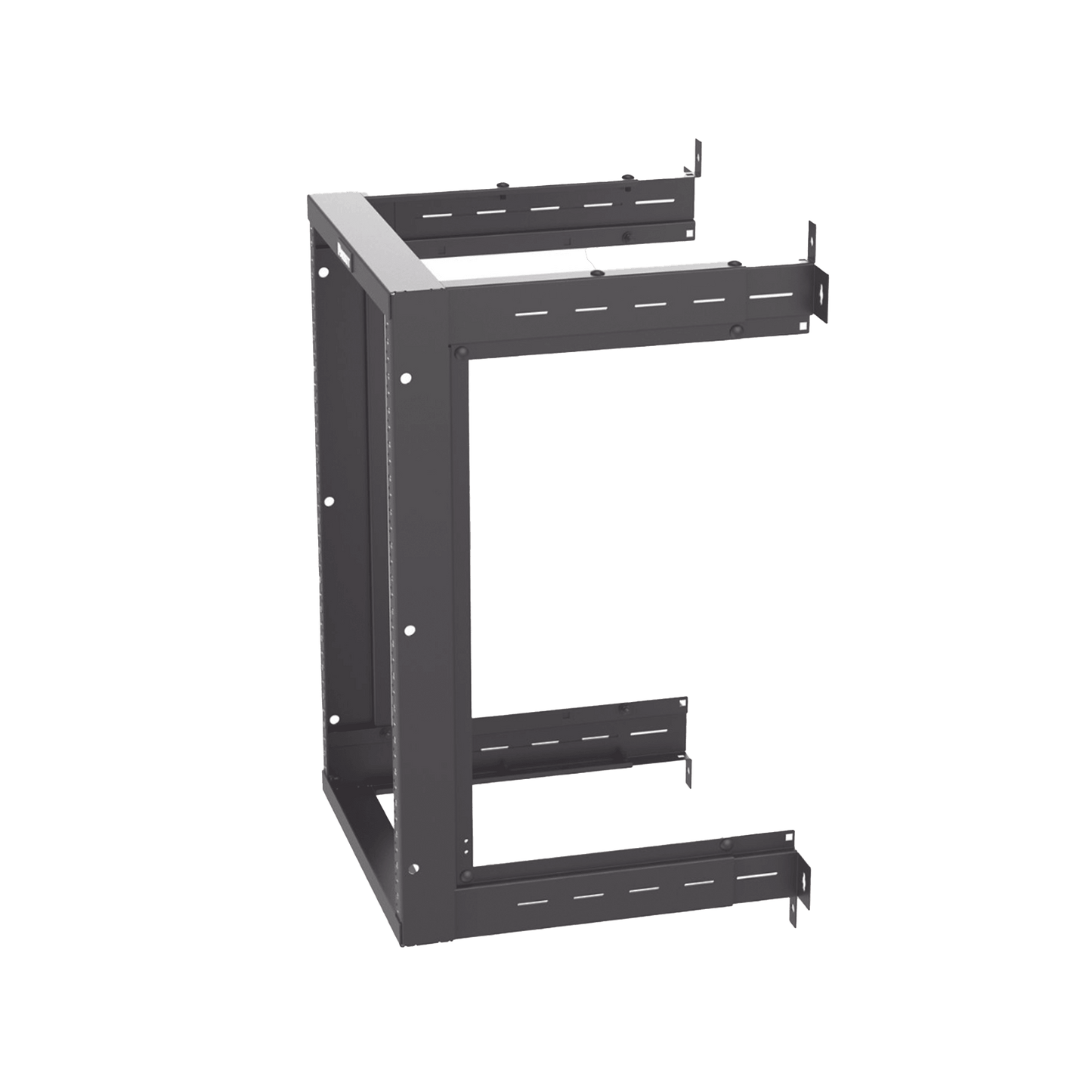

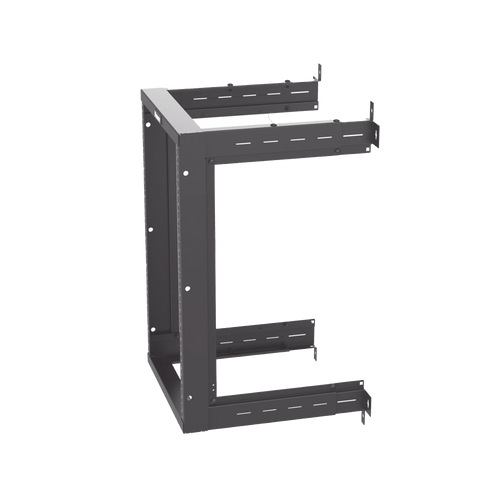

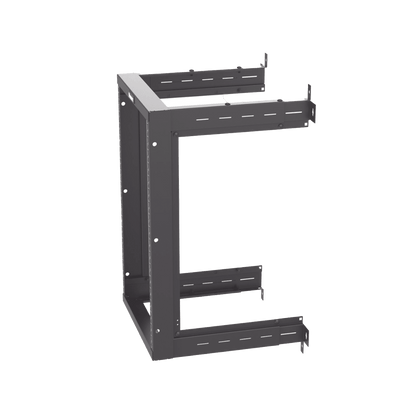

2. Adjustable depth of steel wall mount frame: depths of 18 in, 21.5 in and 25 in

3. Grounding area on each side

4. Cable management slots
