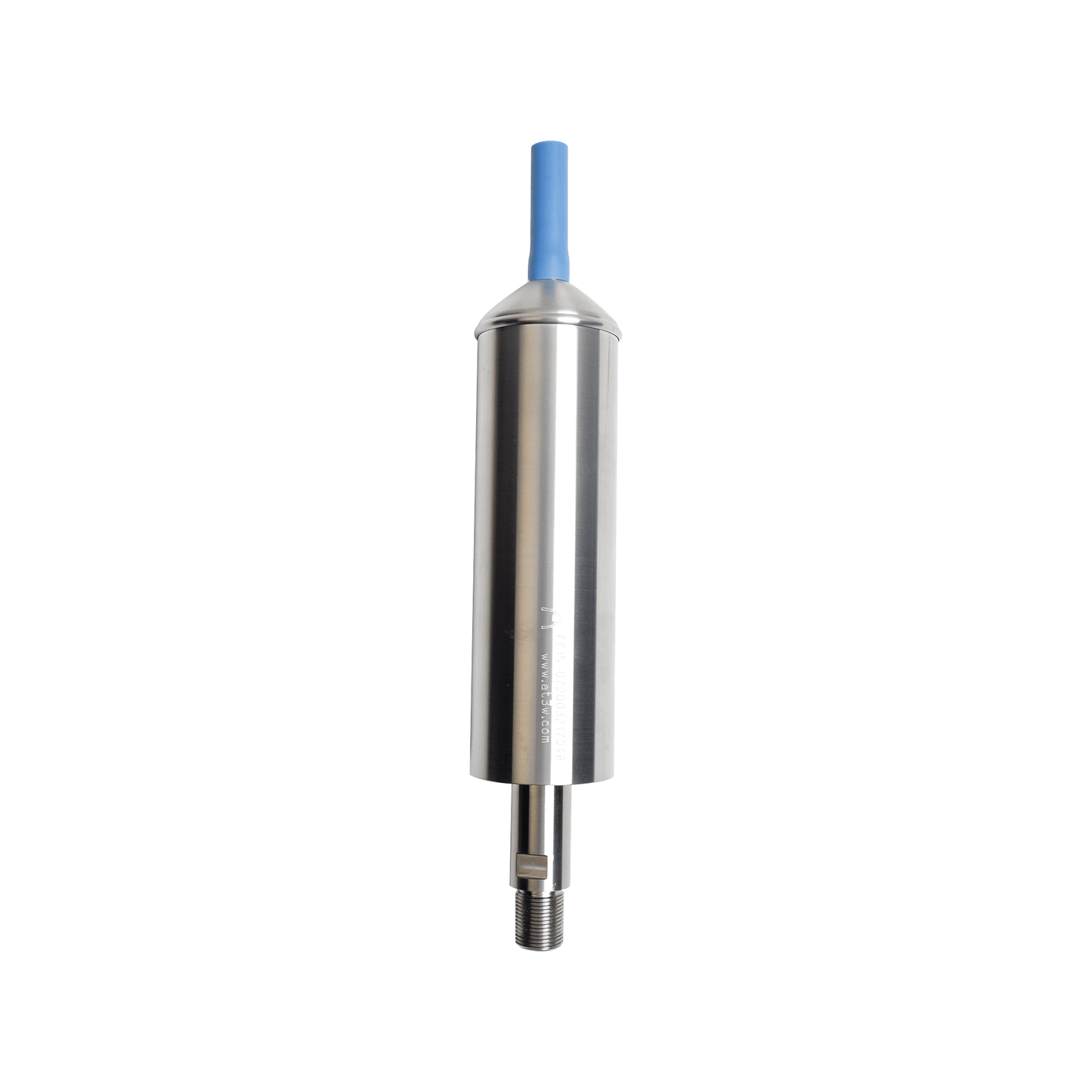

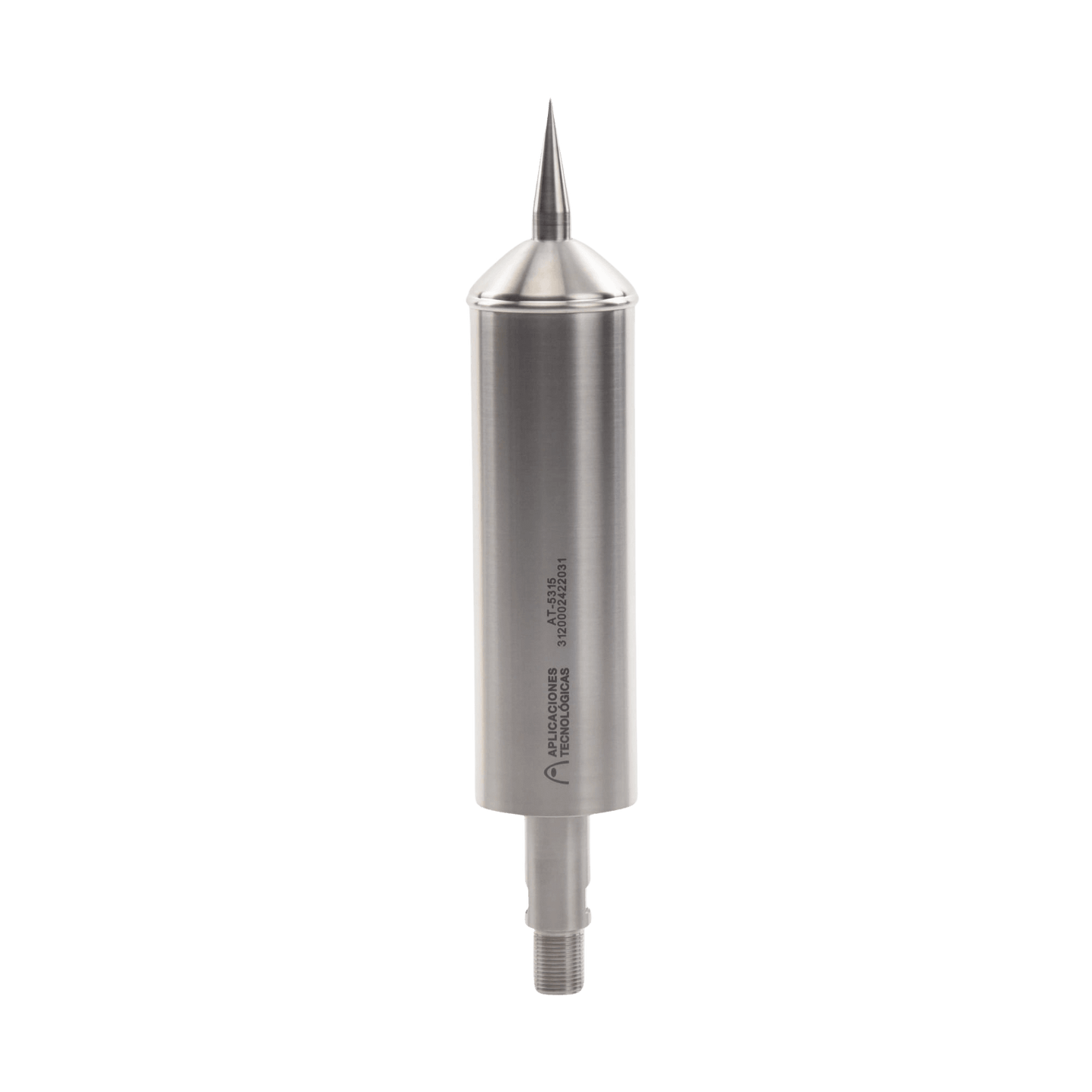

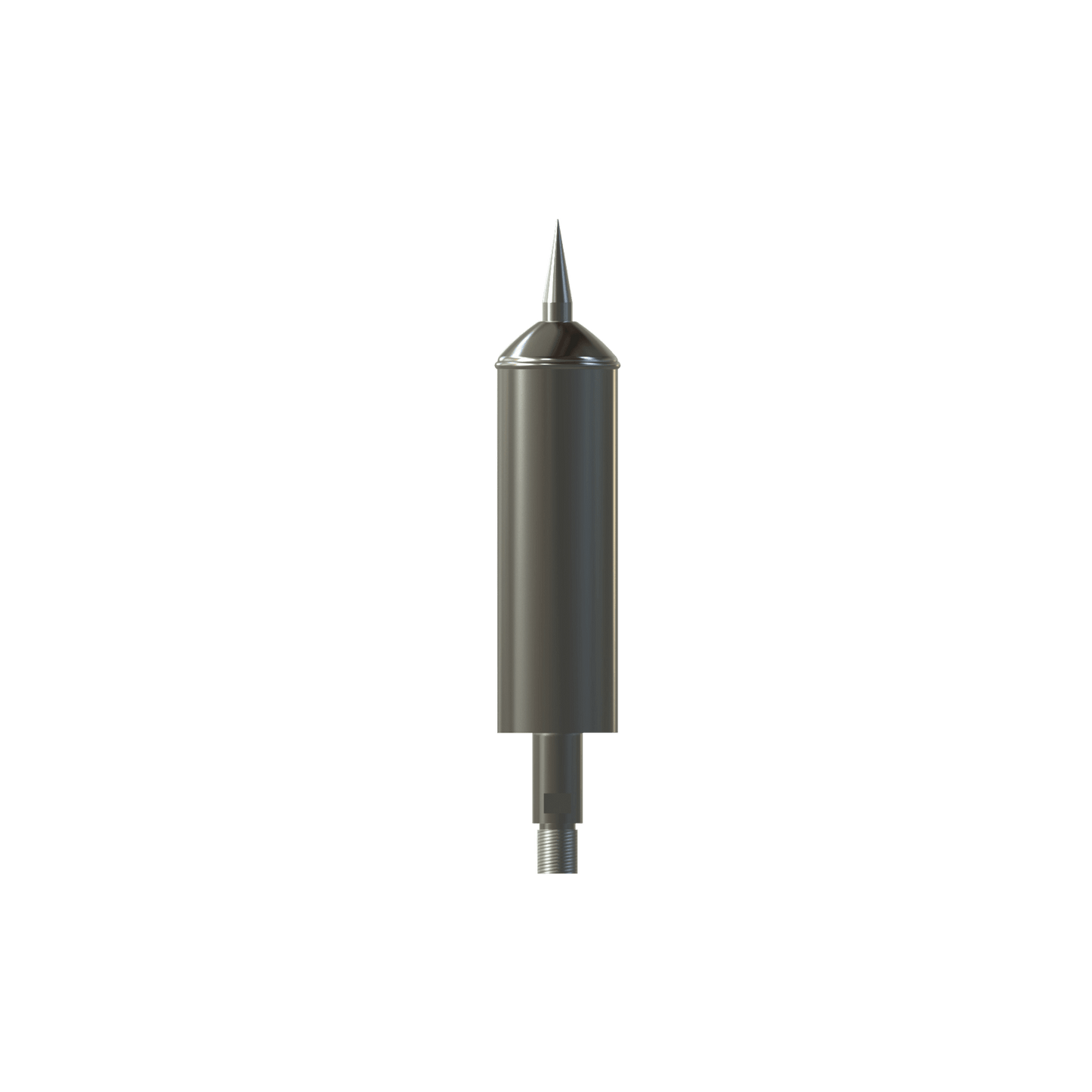

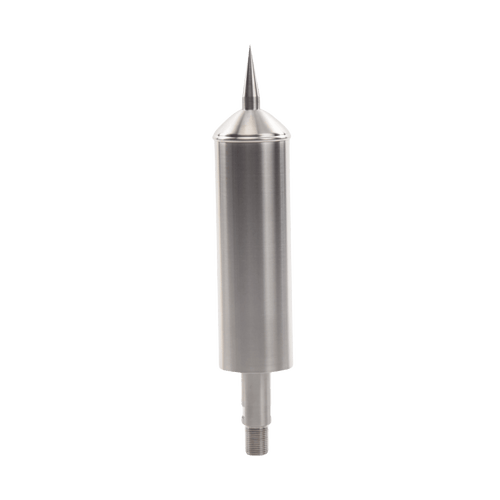

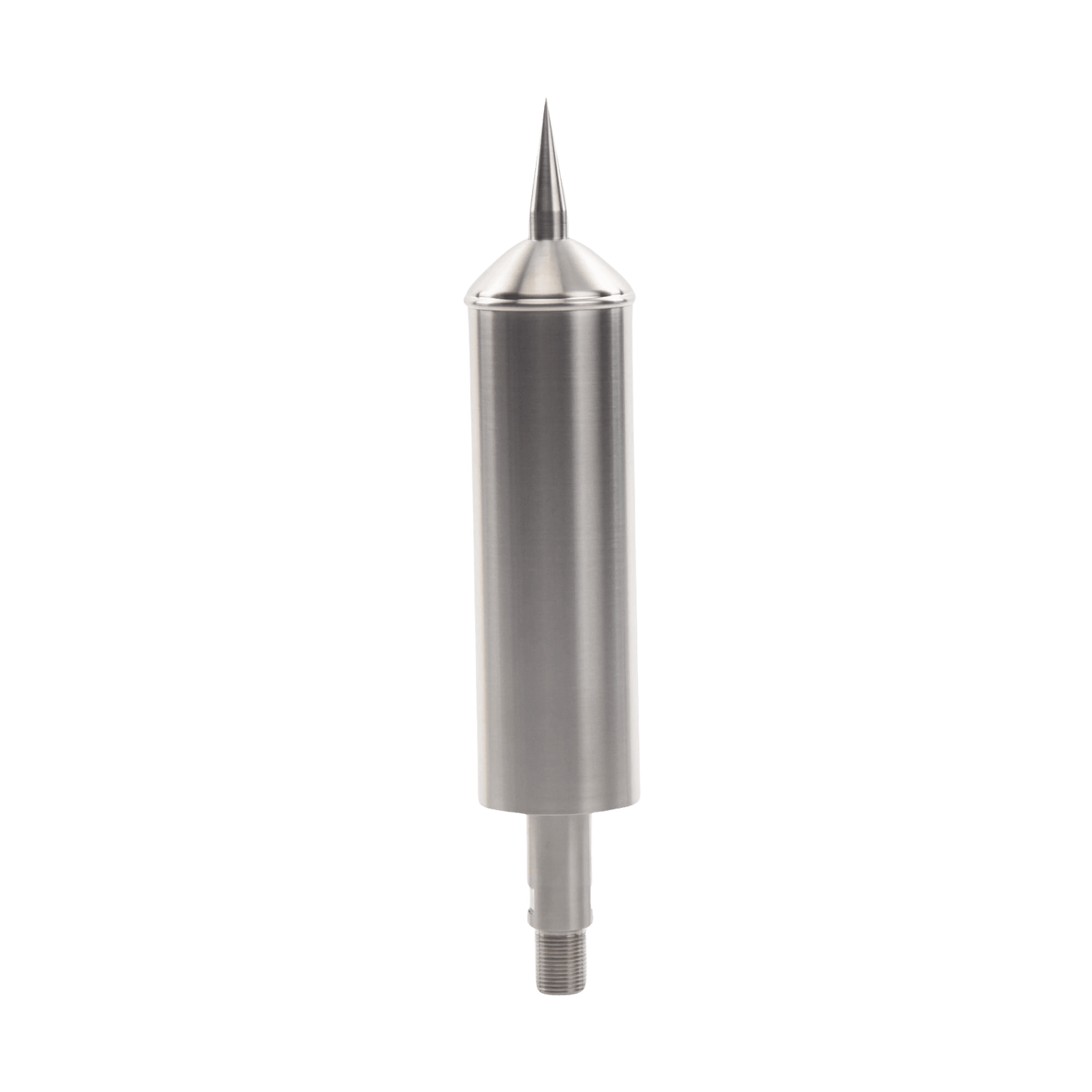

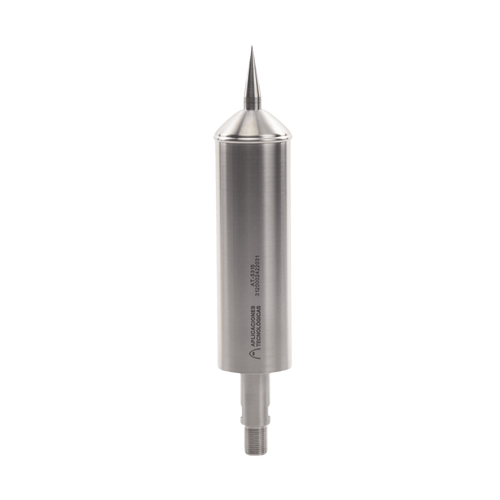

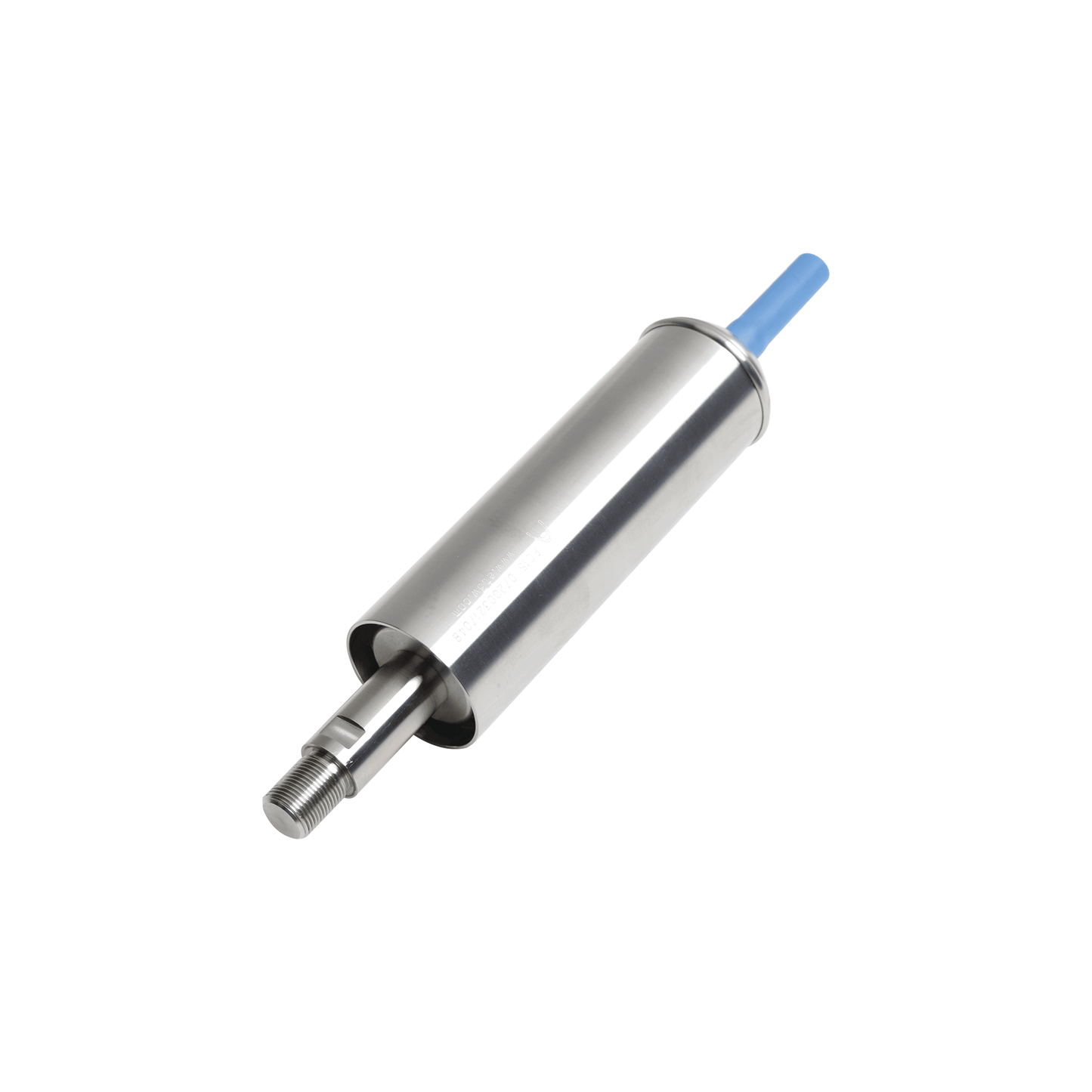

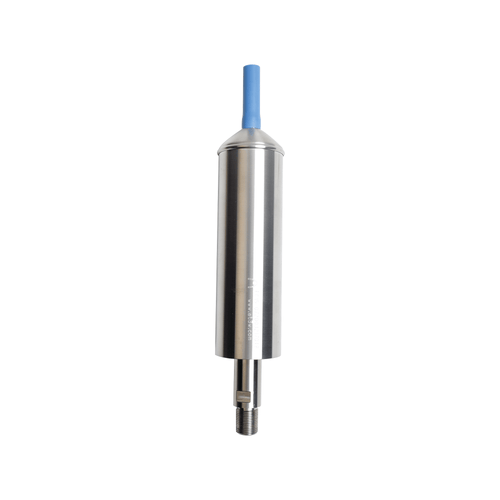

FLASH CAPTOR Lightning Rod Tip with Firing Advance of 15 µs, Maximum Protection Diameter 70 m.

  • 70531cc7184601cc522ae139b561e679
  • 53e36b9dde16bb0fb8466b19cc8e88e2
  • 4e2af1a794554a26439d35836d3fd24a
  • b776d1d1df97aee69149b115cafb80ca
  • 610dd559facb20a9ae03af0858d8cf10
1 5

Out of stock

Modelo: AT-5315

Proveedor: APLICACIONES TECNOLOGICAS

Código SAT: 39121600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details



The Flash Captor Lightning Rod with Priming Device anticipates any other element within its protected zone, capturing the lightning to conduct its current to the ground along a safe path.

• High voltage pulse emitter.
• Completely autonomous.
• Stainless steel metal structure.
• Electroatmospheric condenser.
• Verifiable on site and in the factory with specific equipment.

Certified in accordance with UNE 21186:2011 standards , NF C 17-102:20 11 and NP4426:2013 in which the advance time is determined after exceeding, on the same sample, the following tests:

• Salt spray test.
• Test in humid sulfurous atmosphere.
• Withstand current test 100kA (10/350µs).
• Advance time test ΔT.

Technical characteristics:
Material: AISI 316L Stainless Steel
Weight: 3kg.
External Diameter (Central Body): 60 mm
Length: 325mm
Advance Time (ΔT): 15 µs

Requires AT-011-A adapter for correct installation.
