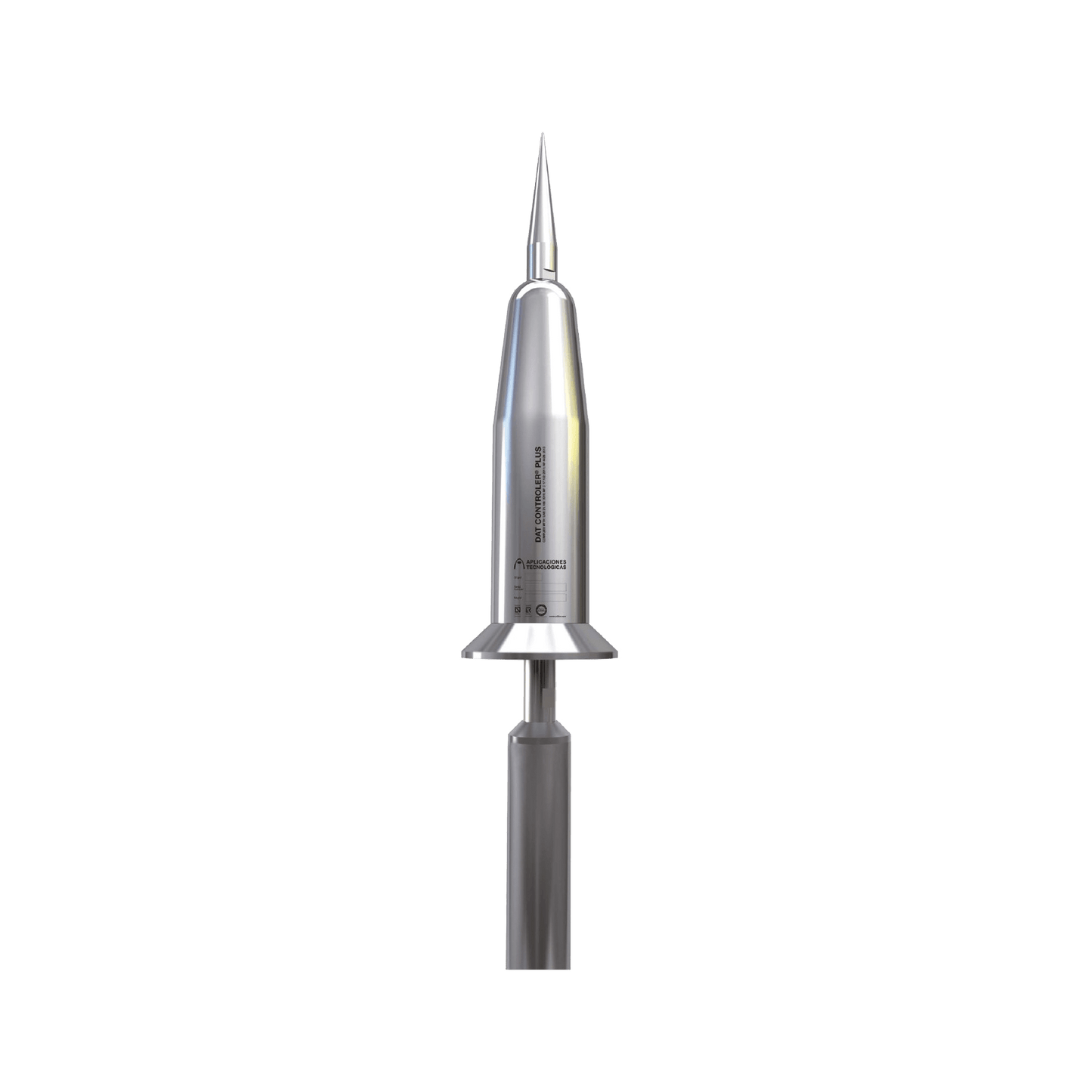

DAT CONTROLER PLUS Lightning Rod Tip with 30µs Priming Advance. (Exceeds UNE and NFC Standard).

DAT CONTROLER® PLUS is a lightning rod with initiation device (PDC) that bases its operation on the electrical characteristics of lightning formation, emitting the continuous ascending tracer before any other object within its protection radius, characteristic normatively called priming advance time (ΔT). The greater your anticipation in the formation of the ascending tracer, the greater the distance at which the descending tracer captures, protecting against lightning in a larger area (standards limit ΔT≤60 μs).

Regulatory Requirements.

- Compliance with UNE 21186:2011 standard.

Beyond the Standards: Additional Features.

- Endorsed by AENOR.
- Certified withstand current 20 impacts 100 kA (10/350 μs).
- Operation in rainy conditions (insulation greater than 95%).

Technical Characteristics:

Material: AISI 316L stainless steel
Weight: 3:8 kg
Watertightness: IP67
Working temperature: -25 ºC to 88 ºC
Priming device type: Electropulsant (pulse emitter)
Internal insulation: Polyurethane resin
Fixing: M20 male thread
Regulations: UNE 21186:2011; NF C 17-102:2011; NP 4426:2013
Certified Priming Advance: 30 μs.

Requires AT-011-A adapter for correct installation.
