Maximum Distance Up to 1 km for Wi-Fi / 2.4 5 GHz devices

	802.11 a/b/g/n/ac		512 concurrent devices
	300Mbps - 2.4GHz 867Mbps - 5GHz		Access Point / Client / Altai Repeater
	26 dBm Max.TX Power		Altai Care/On-Premise Support

General Characteristics of A8in (ac), 802.11b/g/a/n/ac

- 8X8 MIMO Technology in 2.4 GHz High Reception Sensitivity .

- 2X2 MIMO technology at 5.1-5.8 GHz high capacity for backhaul, WiFi access or PTMP connections.

- Up to 300 Mbps in 2.4 GHz and 867 Mbps in 5.1 – 5.8 GHz.

- Fast Roaming 802.11r to minimize overlap time between cells.

- Band steering to balance users on both 2.4 and 5 GHz bands.

- Management of the SNR connection threshold for control of coverage cells.

- Power 27 dBm in 2.4 GHz and 20 dBm in 5 GHz.

- Power consumption: 30 W (typical) 65 W (maximum).

- Operating temperature: -40 to 60° C.

- Power supply: 56 Vdc, 1.1 A, via passive PoE injector included .

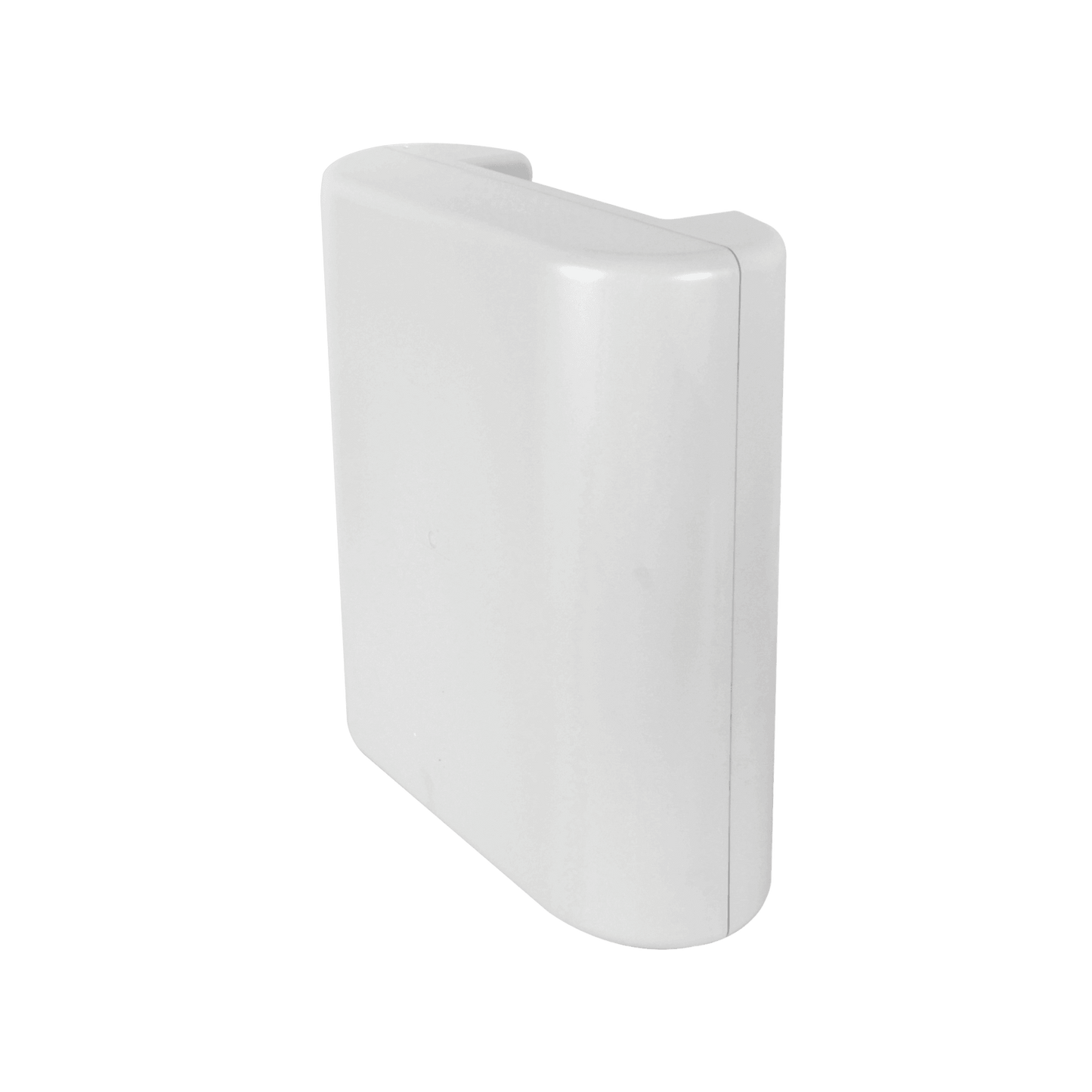

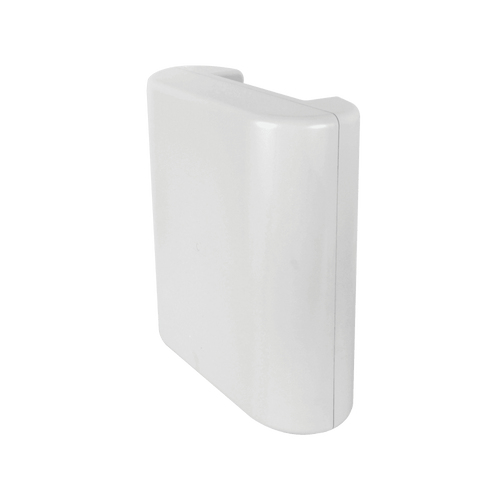

Super Base Station 360º WiFi Coverage, 802.11b/g/a/n/ac

• Integrated 2.4 GHz antenna, 14 dBi, Dual-Slant ±45°, 360° H/14° V.

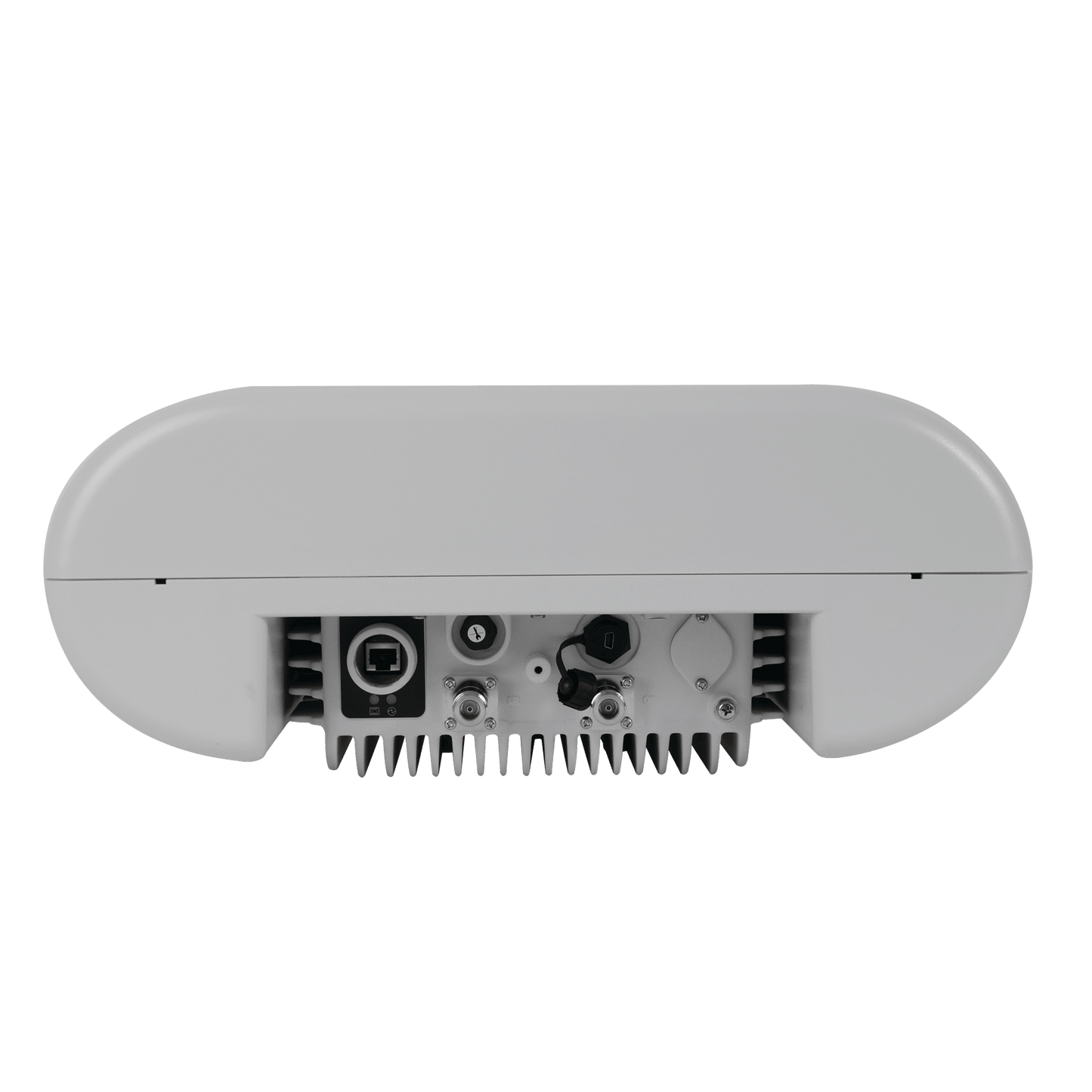

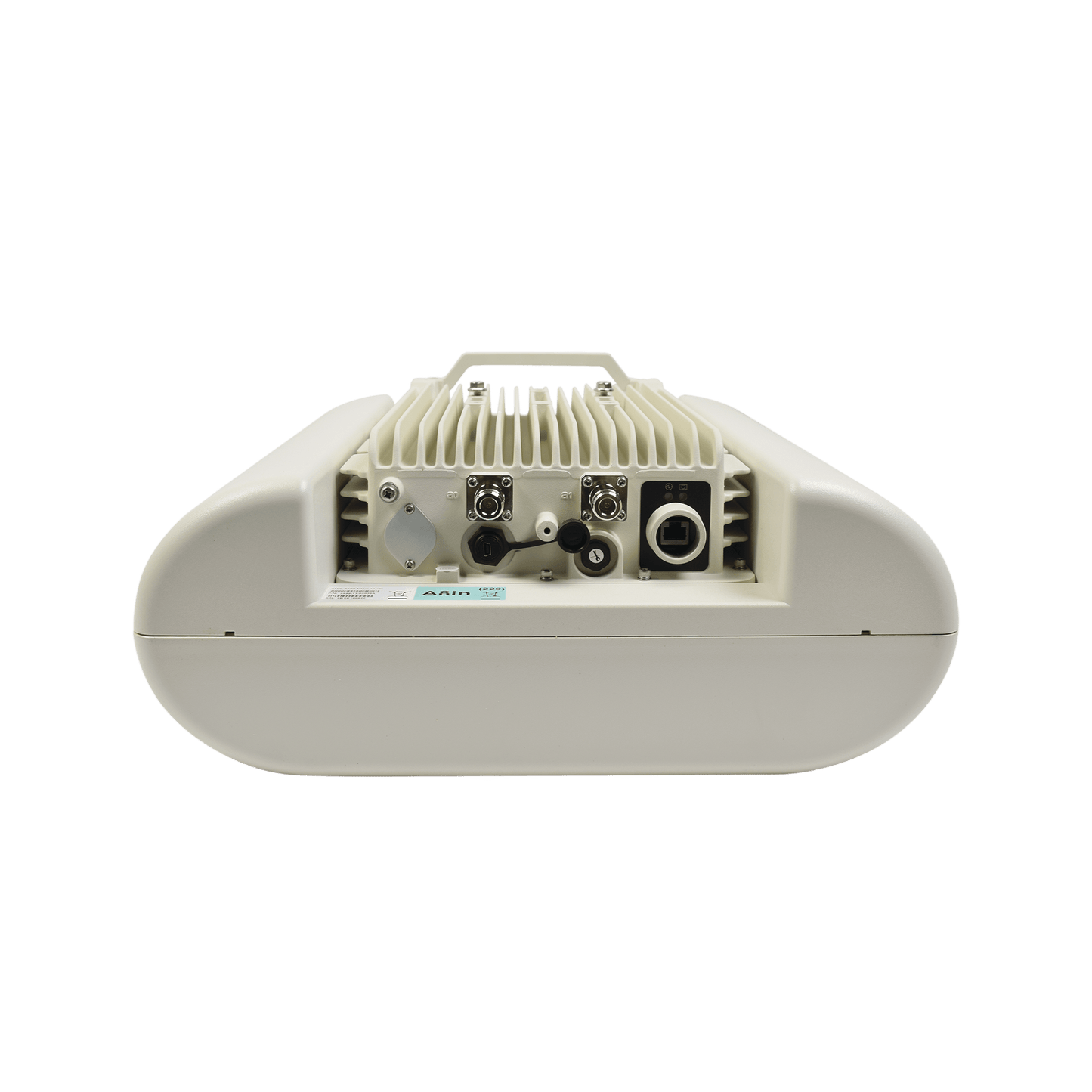

• 2 N-Female connectors for 5 GHz antenna. (not included)

• Distance for laptop/smartphone in 2.4 GHz up to 1 km with full line of sight.

• Distance for laptop/smartphone in 5.1-5.8 GHz up to 900 m with full line of sight.

• Up to 1024 devices in total adding both bands in optimal conditions.

• Wall installation, mast or tower at great heights of 9 to 12 m .

• Dimensions: 455 x 431 x 163 mm.

• Weight: 10.5 kg.

*1 year warranty

• Mining	• Ports/Containers	• Stadiums	• Airports
• Tourist Complexes	• Campus/Education	• Hospitality	• Urban/Housing

Some benefits of A8in (ac) base station

-Large capacity in dual band for concurrent WiFi devices up to 1024 in optimal conditions.

-Large bandwidth capacity in each radio.

-2.4 GHz smart antenna technology for maximum coverage.

-High sensitivity technology in 8X8 MIMO reception in 2.4 GHz for long range.

-Adaptive interference control that helps reduce sources of interference.

-Supports professional cloud management and monitoring through AltaiCare Cloud.

-Supports professional management and monitoring on a local server through AltaiCare on-premises.

-Fewer Altai Technologies access points are used for the same coverage area compared to other solutions on the market.

unifi

The maximum distance in coverage, WiFi mobile device capability, connection speeds, etc It will depend particularly on each installation site.

-- The scope mentioned here is based on:

·       Excellent Line of Sight.

·       Conventional channel width

·       Areas with low level of interference and/or floor noise.

·       Recommended heights according to the distance required

·       It is recommended to have physical ground.

·       It is recommended to have a UPS, This stops voltage surges and drops and prevents damage to equipment.

- If any of the previous points or several of them are not met, The ranges will be lower.
